Top Tips for Repairing Leaking Hydraulic Fittings Easily

Table of Contents

Introduction

Maintaining hydraulic systems is crucial for operational efficiency and safety. Hydraulic fitting leaks, a common issue, can lead to system failures and costly downtime. These leaks often result from poor installation, damaged components, wear and tear, contaminants, temperature fluctuations, and incorrect tightening. Identifying leaks involves visual inspections, pressure checks, and leak detection tools. Repair methods include tightening, replacing damaged parts, and using sealants. Preventive measures, such as regular maintenance, proper installation, and using quality components, are essential. Advanced techniques and tools also aid in effective leak management and repair.

Understanding Hydraulic Fitting Leaks

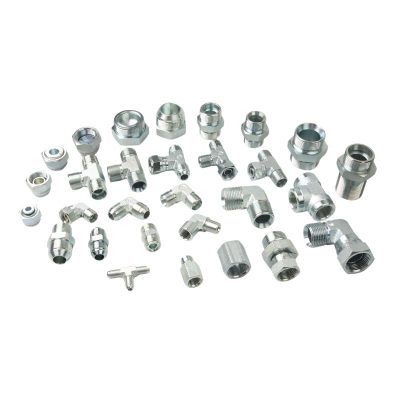

Definition and Types of Hydraulic Fittings

Hydraulic fittings are crucial for connecting various components within a hydraulic system, such as hoses, tubes, and pipes. These fittings ensure the proper transfer of hydraulic fluid, which is essential for the system’s operation. Here’s a closer look at the common types of hydraulic fittings:

Threaded Fittings

Threaded fittings use threads to connect components securely. They come in various thread types and sizes, ensuring a tight seal to prevent leaks. Common thread types include NPT (National Pipe Tapered), BSP (British Standard Pipe), and metric threads. Threaded fittings are versatile and widely used in different hydraulic applications, making them a popular choice for many systems.

Crimped Fittings

Crimped fittings involve the use of a crimping tool to secure the fitting to a hose. This method creates a permanent and leak-free connection, ideal for high-pressure applications. The crimping process ensures that the hose and fitting are tightly bonded, preventing fluid from escaping. Crimped fittings are preferred for their durability and reliability, especially in demanding environments.

Flange Fittings

Flange fittings consist of a flanged connection secured with bolts, providing a robust and high-pressure-capable connection. These fittings are typically used in industrial and heavy-duty hydraulic systems where strength and reliability are paramount. Flange fittings come in various sizes and pressure ratings, allowing for customization based on the specific requirements of the hydraulic system.

Other Types of Hydraulic Fittings

Quick-Disconnect Fittings: These allow for easy connection and disconnection without tools, facilitating quick maintenance and repairs.

Compression Fittings: Use a compression nut and ferrule to create a tight seal. They are commonly used for small-diameter tubing.

Push-to-Connect Fittings: Simplify the connection process by allowing hoses to be pushed into place without additional tools, often used in pneumatic and low-pressure hydraulic systems.

Common Causes of Hydraulic Leaks

Poor Installation

Incorrect procedures during installation can result in misaligned components and inadequate sealing. Ensuring proper alignment and following manufacturer guidelines are crucial to avoid leaks.

Damaged Components

Wear and tear or physical damage to fittings, hoses, and seals can create points of leakage. Regular inspections and timely replacement of worn parts are essential for maintaining system integrity.

leaking hydraulic Fittings Topa

Contaminants

Dirt and debris can compromise seals, causing abrasion and eventual failure. Keeping the system clean and using proper filtration can mitigate this issue.

Temperature Fluctuations

Hydraulic systems often operate in environments with varying temperatures. Expansion and contraction of materials can weaken seals, leading to leaks. Using materials suited for temperature variations can help prevent this problem.

Over-tightening or Under-tightening

Applying incorrect torque when securing fittings can damage threads or fail to seal properly. Over-tightening can strip threads, while under-tightening may not create a sufficient seal. Using torque specifications provided by manufacturers is critical to prevent leaks.

Diagnosing the Leak

Visual Inspection

Look for Visible Signs: Begin by looking for wet spots, fluid puddles, cracks, or loose fittings. These signs are the most immediate indicators of a hydraulic leak.

Focus on Connection Points: Pay close attention to areas where hoses and fittings connect, as these are common points for leaks to develop due to wear and stress.

Checking System Pressure

Monitor Pressure Levels: Continuously monitor the system for any drops in pressure, as a sudden decrease can indicate a leak.

Use Pressure Gauges: Install pressure gauges at different points within the system to compare readings. Significant differences between readings can help localize the leak.

Using Leak Detection Tools

Ultrasonic Detectors: Utilize ultrasonic detectors, which can pick up the high-frequency sound of fluid escaping from a leak, making it easier to locate small or hidden leaks.

Electronic Sniffers: Employ electronic sniffers that are designed to detect hydraulic fluid vapors. These tools are particularly useful for identifying leaks in enclosed or hard-to-reach areas.

Dye Testing

Inject Fluorescent Dye: Introduce a fluorescent dye into the hydraulic system. The dye mixes with the hydraulic fluid and flows through the system.

Use UV Light for Tracing: Shine a UV light over the system components to trace the dye’s path. The dye will glow under UV light, allowing you to pinpoint the exact location of the leak.

Safety Precautions

Depressurize the System: Always depressurize the hydraulic system before performing any inspections or repairs to prevent injury from high-pressure fluid.

Wear Appropriate PPE: Use personal protective equipment such as safety goggles, gloves, and protective clothing to guard against hydraulic fluid exposure and other potential hazards during the diagnostic process.

Repairing Leaking Hydraulic Fittings

Safety First

Depressurize the System: Always begin by depressurizing the hydraulic system to prevent injury from high-pressure fluid. Follow proper procedures to ensure all pressure is released safely.

Clean the Area

Remove Dirt and Debris: Clean the area around the leak thoroughly. Use a clean, dry cloth to wipe away any dirt, debris, or hydraulic fluid. This ensures a clean working surface and prevents contaminants from entering the system.

Inspect and Identify

Locate the Faulty Fitting: Carefully inspect the hydraulic system to locate the faulty fitting. Look for signs of wear, damage, or improper installation. Assess the condition of the fitting to determine the appropriate repair method.

Tightening Loose Fittings

Use a Torque Wrench: If the fitting is loose, use a torque wrench to apply the correct torque as specified by the manufacturer. Proper torque ensures a secure connection without over-tightening, which can cause damage.

Replacing Damaged Fittings

Remove and Replace: If the fitting is damaged or worn, remove it carefully. Replace it with a new fitting that matches the specifications of the original. Ensure proper alignment and secure it according to manufacturer guidelines.

Using Sealants and Tapes

Apply Hydraulic Sealant or PTFE Tape: For threaded fittings, apply hydraulic sealant or PTFE tape to the threads before reassembly. This helps create a secure seal and prevent leaks. Ensure the sealant or tape is applied evenly and not excessively.

Swaging and Flaring Techniques

Form Secure Connections: Use specialized tools to perform swaging or flaring on the hydraulic lines. Swaging involves deforming the fitting to create a tight seal while flaring expands the tube end to fit securely with the fitting. These techniques are used for creating strong, leak-free connections in high-pressure systems.

install Hydraulic Bulkhead Fittings

Proper Installation Techniques

Using the Correct Tools

  • Select the right tools specifically designed for hydraulic systems to avoid damaging fittings and hoses.
  • Use tools such as hydraulic wrenches, crimping tools, and alignment devices to achieve secure and precise connections.
  • Avoid makeshift solutions that can compromise the integrity of the fittings.

Use Tools Designed for Hydraulic Systems

  • Hydraulic systems require specific tools for installation and maintenance to ensure accurate and secure connections.
  • Tools such as hydraulic-specific wrenches and torque tools are designed to provide the necessary force without causing damage.

Ensuring Proper Torque

Follow Manufacturer Specifications

  • Adhere to the torque settings recommended by the manufacturer to avoid over-tightening or under-tightening fittings.
  • Incorrect torque can lead to damaged threads or insufficient sealing, causing leaks.

Use a Calibrated Torque Wrench

  • Utilize a calibrated torque wrench to apply the precise amount of torque required.
  • Regularly check the calibration of the torque wrench to ensure it provides accurate readings.

Aligning Components Correctly

Ensure Proper Alignment

  • Proper alignment of components is essential to prevent stress and potential leaks.
  • Misaligned fittings can lead to uneven pressure distribution and eventual failure.

Use Alignment Tools and Techniques

  • Employ alignment tools and techniques to achieve correct positioning during installation.
  • Techniques such as using alignment marks or fixtures can help ensure components are correctly positioned.

Selecting the Right Fittings and Materials

Match Fittings to System Requirements

Pressure Specifications

  • Select fittings that can withstand the hydraulic system’s maximum operating pressure. This ensures the fittings will not fail under normal or peak load conditions.
  • Consider both static and dynamic pressure ratings when selecting fittings to match the specific needs of your system.

Temperature Specifications

  • Choose fittings that are compatible with the operating temperature range of your hydraulic system. Materials should be able to expand and contract without compromising the integrity of the connection.
  • Use fittings made from materials designed to perform reliably at both high and low temperatures to prevent failures due to thermal stress.

Fluid Type Specifications

  • Ensure fittings are compatible with the type of hydraulic fluid used in your system. Different fluids can have varying chemical properties that may react differently with certain materials.
  • Consider the fluid’s viscosity, corrosiveness, and potential for contamination when selecting fittings.

Environmental Conditions

  • Take into account the environmental conditions where the hydraulic system operates. This includes exposure to elements such as moisture, chemicals, and varying temperatures.
  • Select materials that are resistant to corrosion, wear, and other environmental factors that could affect the longevity and performance of the fittings.

Use High-Quality Components

Invest in High-Quality Fittings and Hoses

  • Opt for fittings and hoses made from high-grade materials to ensure durability and reliability. High-quality components are less likely to fail and can significantly reduce the risk of leaks.
  • High-quality materials often come with better manufacturing processes, ensuring tighter tolerances and better performance under pressure.

Source from Reputable Manufacturers and Suppliers

  • Purchase components from reputable manufacturers and suppliers who provide certified and tested products. This guarantees that the fittings and hoses meet industry standards and specifications.
  • Reliable suppliers often offer better customer support and warranties, adding an extra layer of assurance for the quality and performance of the components.

Common Repair Mistakes and How to Avoid Them

Over-tightening

Issue: Applying excessive torque to hydraulic fittings can damage threads or deform the fittings, leading to leaks. This problem often arises from the mistaken belief that tighter connections are always better.

Solution: Use a torque wrench to apply the correct amount of force as specified by the manufacturer. This ensures that the fittings are secure without being overly tightened, preserving the integrity of the threads and connections.

Incorrect Fitting Selection

Issue: Using fittings that do not match the system’s pressure, temperature, or fluid type specifications can result in poor performance and leaks. Incompatible fittings may fail under operational stresses, leading to system downtime and potential damage.

Solution: Ensure that fittings are selected based on the hydraulic system’s specific requirements, including pressure ratings, temperature tolerance, and fluid compatibility. Consulting manufacturer guidelines and considering environmental conditions are crucial steps in this process.

Hydraulic Hose Fittings Leaking Topa

Poor Sealing Practices

Issue: Incorrect application of sealants and tapes can cause leaks. Improper sealing techniques, such as uneven application or using incompatible products, can lead to inadequate seals and fluid escape.

Solution: Apply hydraulic sealant or PTFE tape evenly and according to the manufacturer’s instructions. Ensure that the chosen sealant or tape is suitable for the hydraulic fluid and operating conditions of the system. Proper training on sealing techniques can help avoid these issues and ensure a leak-free connection.

Dealing with Persistent Leaks

Re-evaluate System Design

Issue: Persistent leaks may indicate a fundamental flaw in the system design, such as improper routing of hoses or incorrect component selection.

Solution: Review the system design thoroughly for potential weaknesses. Ensure that all components, including fittings and hoses, are appropriately matched to the system’s pressure, temperature, and fluid specifications. Consider re-routing hoses and redesigning certain aspects of the system to improve performance and reduce leak risks.

Consult with Hydraulic Experts

Issue: Complex hydraulic issues often require specialized knowledge and experience to diagnose and resolve effectively.

Solution: Seek advice from hydraulic experts who can provide in-depth analysis and recommendations. Experts can identify underlying problems that may not be apparent and suggest effective solutions tailored to your specific system requirements.

Consider upgrading to higher-quality fittings and hoses

Problem: Continuous leaks can result from the use of substandard or incompatible parts that cannot withstand the operating pressures.

Solution: Upgrade to higher quality fittings and hoses for improved durability and performance. Investing in quality components reduces the frequency of leaks and improves the overall reliability of your hydraulic system. You can choose components manufactured by Topa, which is known for its strict quality standards.

Vibration and Mechanical Stress

Hydraulic systems frequently operate in environments that subject them to significant vibration and mechanical stress. This is especially true for heavy machinery, industrial equipment, and mobile applications like construction vehicles and agricultural machinery. The continuous movement, high-speed operations, and mechanical impacts these systems endure can cause considerable strain on their components.

Vibration: Constant vibration can lead to the loosening of fittings, connections, and other critical components. Over time, this can create gaps and misalignments that compromise the integrity of the system.

Mechanical Stress: Repeated mechanical stress, such as shocks and impacts, can cause physical deformation of components. This stress can result in micro-cracks, material fatigue, and eventual failure of hydraulic fittings and seals.、

Methods to Reduce Vibration and Mechanical Stress

To mitigate the effects of vibration and mechanical stress on hydraulic systems, several strategies can be employed:

Install Vibration Dampers: Vibration dampers or isolators can be installed to absorb and reduce the impact of vibrations. These dampers can be placed at strategic points within the hydraulic system to protect vulnerable components from excessive movement.

Use Flexible Hoses: Incorporating flexible hoses in the hydraulic system can help absorb shocks and vibrations. Unlike rigid pipes, flexible hoses can bend and flex, reducing the strain on fittings and connections.

Shock Absorbers: For systems subject to frequent impacts, such as those in construction or mining equipment, installing shock absorbers can help cushion the blows and protect hydraulic components from sudden stress.

Conclusion

Proper maintenance and repair techniques are crucial for preventing hydraulic fitting leaks. Regular inspections and the use of high-quality components are essential for system reliability. Following best practices, ensuring thorough training for personnel, and using the right tools can significantly reduce the risk of leaks and enhance the efficiency of hydraulic systems. Prioritizing these elements will lead to long-term operational success and minimized downtime.

FAQ

What are the most common causes of hydraulic fitting leaks?

Common causes include poor installation, damaged components, contaminants, temperature fluctuations, and incorrect torque application (over-tightening or under-tightening).

How can I prevent hydraulic fitting leaks?

Regularly inspect fittings and hoses, replace worn components, use proper installation techniques, match fittings to system requirements, and apply correct torque.

What should I do if I find a leak in my hydraulic system?

Depressurize the system, clean the area around the leak, identify the faulty fitting, and either tighten, replace, or properly seal the fitting.

Why is it important to use high-quality fittings and hoses?

High-quality components are more durable and reliable, reducing the risk of leaks and ensuring the hydraulic system operates efficiently under various conditions.

What tools are essential for repairing hydraulic leaks?

Essential tools include torque wrenches, crimping tools, hydraulic sealants, PTFE tape, and leak detection tools like ultrasonic detectors and dye testing kits.

How do I know if my hydraulic fittings are properly aligned?

Ensure there are no visible gaps or misalignments between fittings and hoses. Use alignment tools and follow manufacturer guidelines to verify correct positioning.
