A truly reliable hydraulic fitting is the product of a rigorous, multi-stage manufacturing process, with strict quality control at every step. From verifying raw materials to final inspection, each stage is critical to building a component you can trust. We will show you exactly how this is done.
Making a hydraulic fitting seems simple, but making thousands of them with perfect consistency is a complex challenge. It demands a deep investment in machinery, processes, and a culture of quality. We want to open our doors and guide you through our production line, step-by-step. This transparency will show you how we build quality and reliability into every fitting we make, giving you the confidence you need to make an informed sourcing decision.
It Starts with the Right Material, Right?
The best manufacturing process in the world cannot save a product made from inferior raw materials. A fitting’s strength and reliability begin with the steel itself.
Yes, the foundation of every high-quality hydraulic fitting is the selection and verification of the correct raw material. Using the specified grade of steel, like 45# carbon steel or 316 stainless steel, is non-negotiable. It is the first and most crucial step in our entire quality assurance system.
We treat raw material sourcing with the utmost seriousness. A mistake here can compromise an entire production run. That is why our quality control process does not start at the CNC machine; it starts at the receiving dock. Every batch of steel that arrives at our facility must pass our Incoming Quality Control (IQC) before it is accepted into our inventory. This disciplined first step prevents major problems down the line.
Choosing the Correct Steel Grade
The choice of material is dictated by the fitting’s intended application and performance requirements. Each grade has specific properties that make it suitable for different tasks.
- Carbon Steel (e.g., 45# / SAE 1045): This is the industry standard for most hydraulic applications. It offers an excellent combination of strength, machinability, and cost-effectiveness. When plated correctly, it has very good corrosion resistance.
- Stainless Steel (e.g., SS304, SS316): Used for highly corrosive environments, food-grade applications, or for superior appearance. SS316 offers the best corrosion resistance, especially against chlorides and acids.
How We Verify Material with Hardness Testing

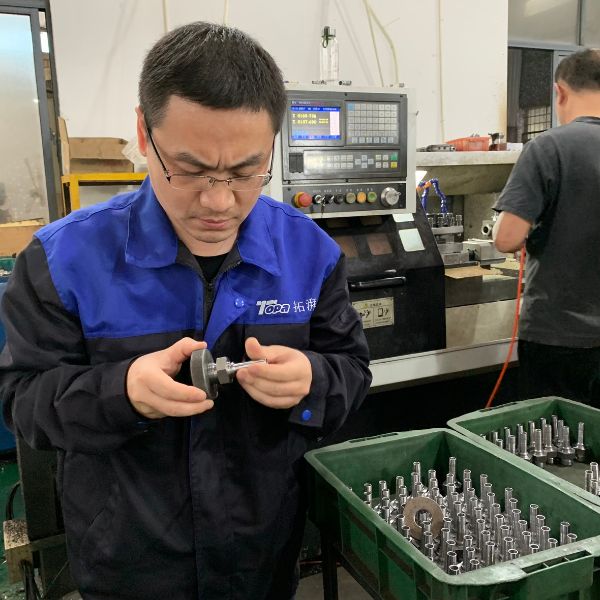

One of the fastest and most effective ways to verify steel grade is with a hardness tester. There is a direct, predictable relationship between the hardness of steel and its tensile strength. Our technicians use a Rockwell hardness tester to press an indenter into the steel sample with a precise force. The resulting measurement confirms that the material’s strength matches the engineering specification. It is a simple test that provides a powerful guarantee about the material’s integrity.
How Are Fittings Precisely Shaped?
A raw bar of steel must be transformed into a complex shape with precise threads, angles, and sealing surfaces. This is where brute strength meets microscopic precision.

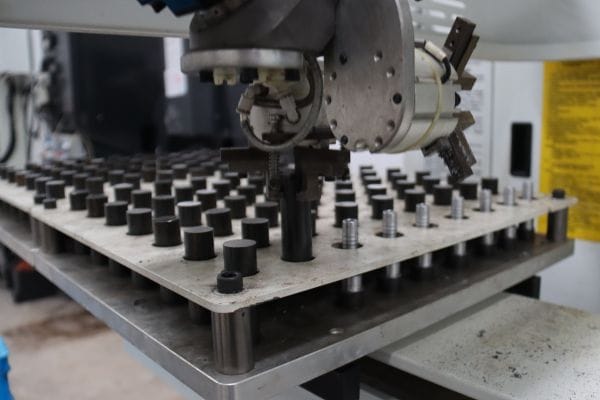

We shape our fittings using a large fleet of modern CNC (Computer Numerical Control) lathes and machining centers. These automated machines cut the raw steel bar with incredible speed and repeatable accuracy, ensuring every fitting is virtually identical to the last.
The days of manual lathes for mass production are long gone. Modern high-volume manufacturing relies on the precision of computer control. A digital blueprint (CAD model) is converted into a program that tells the CNC machine exactly where to cut, how fast to move, and which tool to use. This automation is the key to achieving the tight tolerances required for high-pressure hydraulic fittings, and it is the heart of our production capacity.
From Steel Bar to Complex Shape
The process begins with a long bar of verified raw steel being fed into a CNC lathe through a bar feeder. Inside the machine, a series of cutting tools mounted in a turret work on the rotating bar. They perform multiple operations sequentially: turning the outer diameter, drilling the center hole, cutting the threads, forming the hex, and shaping the sealing cones. For complex fittings like elbows or tees, the part then moves to a CNC milling center for secondary operations.
The Role of Our Production Machinery
Our production floor is equipped with machinery chosen for its precision and efficiency, demonstrating our manufacturing capability. This includes:
- CNC Lathes: The workhorses for creating all straight fittings and the initial shape of elbows and tees.
- CNC Machining Centers: Used for milling the sides of tee and elbow fittings after they are turned.
- Automatic Bar Feeders: These allow our lathes to run for hours with minimal operator intervention, ensuring continuous and efficient production. This capability is key to meeting large orders on schedule.
What Happens After Machining?
After a fitting is cut on a CNC machine, it is not yet ready for plating. It has sharp edges and is covered in cutting fluid and tiny metal chips. These must be removed.
Once a fitting comes off the CNC machine, it goes through a critical two-stage cleaning and deburring process. First, we remove any sharp burrs left from machining, and then we put the parts through a rigorous industrial washing system. This ensures the fitting is perfectly clean and prepared for the electroplating process.
This step may seem simple, but it is absolutely essential for quality. A microscopic metal burr on a thread can cause galling during assembly. Any residual oil on the surface will cause the electroplating to flake off. Rushing or skipping this preparation phase is a common cause of field failures. Our thorough process ensures a smooth, clean foundation for the final steps, which is a key indicator of a quality-conscious manufacturer.
Why Removing Burrs is Critical
Machining metal always leaves tiny, sharp edges called burrs. These burrs are a major problem for hydraulic fittings.
- On Threads: Burrs can cause threads to cross or bind during tightening, damaging both the fitting and the mating port.
- On Sealing Surfaces: A burr on a sealing cone creates a guaranteed leak path.
- Safety Hazard: Burrs can easily cut hands during assembly.
We use various methods, including tumbling and manual inspection, to ensure every fitting is smooth and burr-free.
Our Multi-Stage Cleaning Process
Getting a part “clean” for electroplating is more than just a quick rinse. Our process involves several stages to ensure all contaminants are removed.
- Initial Wash: Removes the bulk of the cutting oil and metal chips.
- Alkaline Degreasing: A hot chemical bath that saponifies (turns to soap) any remaining oils.
- Rinse Cycles: Multiple rinses in clean water to remove all traces of the cleaning agents.
- Acid Pickle: A brief dip in an acid solution to remove any faint surface oxides and microscopically etch the surface. This step is crucial for good plating adhesion.
- Final Rinse and Dry: The parts are thoroughly rinsed again and then dried, ready for immediate plating.
How Do We Protect Fittings from Corrosion?
A bare steel fitting will begin to rust in a matter of hours. It needs a durable, protective coating to survive in the real world.
We protect our carbon steel fittings through a carefully controlled electroplating process. The vast majority of our fittings receive a high-quality Trivalent Zinc plating. This process deposits a uniform layer of zinc onto the fitting, which then acts as a sacrificial barrier to prevent the steel from corroding.
The quality of the plating is just as important as the quality of the machining. A poor plating job can flake off, fail to provide corrosion protection, or even alter the fitting’s dimensions, making it unusable. Our long-term relationships with our plating partners—who you can visit—ensure that they adhere to our strict process controls for pre-treatment, current density, and bath chemistry. This partnership is key to consistently delivering fittings that can withstand harsh environments.
Understanding Our Plating Options
We offer plating that meets various international standards for corrosion resistance. The choice depends on the customer’s end-use environment.
| Plating Type | Description | Typical Use Case |
| Trivalent Blue/Clear Zinc | Standard RoHS compliant plating. Offers good corrosion resistance. | General industrial use, indoor equipment. |
| Trivalent Yellow Zinc | Offers slightly better corrosion resistance than clear zinc due to a thicker chromate conversion coat. | Outdoor equipment, agricultural machinery. |
| Zinc-Nickel Alloy | A high-performance plating with superior corrosion resistance, often lasting 5-10 times longer than standard zinc. | Marine, offshore, salt-spray environments. |
Controlling Key Plating Parameters
Achieving a consistent, high-quality plated finish requires precise control over the entire process. We and our partners monitor several key variables:
- Bath Chemistry: The chemical balance of the plating solution must be regularly tested and adjusted.
- Temperature: The temperature of the bath affects the efficiency and quality of the plating.
- Current Density: The amount of electrical current applied determines the speed and character of the zinc deposition.
- Immersion Time: The longer the part is in the bath, the thicker the plating will be.
How is Final Quality Guaranteed?
The fitting has been made and plated, but it is not a finished product until it passes our final, most rigorous inspection. This is the last gate protecting you from any potential defect.
Every production batch must be approved by our Final Quality Control (FQC) department before it is moved to inventory. Using advanced inspection equipment, our technicians perform a comprehensive audit of the parts, verifying every critical aspect: dimensions, surface finish, threads, and plating quality.
This FQC stage is your ultimate assurance of quality. It is a systematic, data-driven process that provides objective evidence that the finished product meets every detail of the engineering drawing. As a supplier evaluator, seeing a well-equipped and professionally staffed FQC lab is one of the strongest indicators of a manufacturer’s commitment to quality. It demonstrates a culture that values verification over assumption.
Full Dimensional Verification

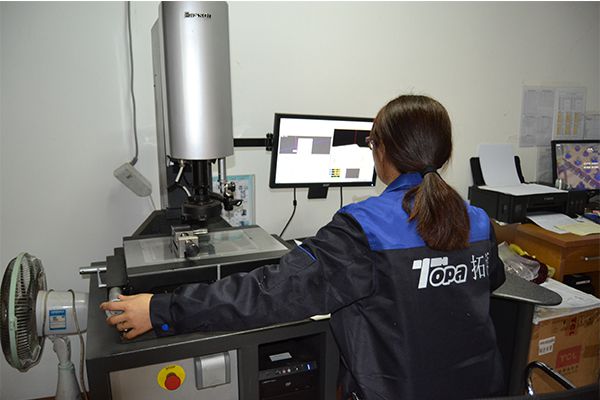

Our technicians use profile projectors and advanced video measuring machines (VMMs) to perform a full dimensional layout. They magnify the fitting’s profile to check critical features that cannot be measured with calipers, such as thread root radii, chamfer angles, and sealing cone angles. This ensures perfect compatibility with mating parts.
Checking Sealing Surfaces
The smoothness of a sealing surface determines whether it will leak or not. We use a surface roughness tester (profilometer) to measure the finish on critical areas like JIC flares and O-ring faces. This instrument provides a quantitative Ra value, ensuring the surface is smooth enough to create a perfect, high-pressure seal.
Verifying Thread Integrity
Threads are checked one last time using “Go/No-Go” thread plug gauges. The “Go” gauge must screw in smoothly, verifying the minimum material condition is met. The “No-Go” gauge must not enter more than a specified number of turns, verifying the maximum material condition has not been exceeded. This simple-but-effective test guarantees that the threads will assemble correctly in the field.
| Quality Check | Method & Tool Used | Purpose/Result |
| Full Dimensional Verification | Profile Projector, Video Measuring Machine | Confirms thread radii, chamfer, and cone angles for accuracy |
| Checking Sealing Surfaces | Surface Roughness Tester (Profilometer) | Ensures smooth Ra finish for leak-free, high-pressure seals |
| Verifying Thread Integrity | Go/No-Go Thread Plug Gauges | Guarantees correct thread fit and field assembly reliability |
Why Does This Process Make Us a Reliable Partner?
Understanding our process is key to evaluating our capability. A disciplined, transparent, and quality-focused manufacturing system directly translates into benefits for you.
Our methodical approach to manufacturing demonstrates a deep commitment to process control and product reliability. This is not just about making a good part; it is about having a system that can make thousands of good parts consistently. For a supplier evaluator, this process-driven mindset is your best guarantee of a stable and predictable supply chain.
We believe that transparency builds trust. That is why we are open about our processes and proud to show you our operations. We want you to see the machinery, meet the team, and witness the quality checks for yourself. This first-hand experience is the most effective way to validate our capabilities and build a strong foundation for a long-term partnership.
Conclusion
From raw material verification to final inspection, a quality hydraulic fitting is the result of a deliberate, controlled process. Our documented system ensures that every part we ship has been built and verified to the highest standards, giving you a reliable product and complete peace of mind.
