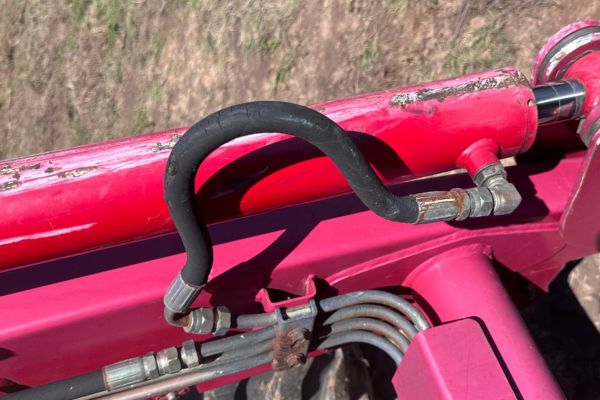

Excavator fittings are engineered for high pressure, not for the relentless corrosive attack they face daily. This guide dissects why their protective plating fails so quickly under the assault of water, abrasion, and installation damage, and what you can do about it.
The Battlefield: An Excavator’s Corrosive Environment
An excavator doesn’t live in controlled conditions—it fights every day against a perfect storm of moisture, chemicals, and abrasion. Each element in the jobsite environment contributes to corrosion, slowly attacking hydraulic fittings, adapters, and couplers. Even the best-engineered system will fail prematurely if corrosion is allowed to spread unchecked. The battlefield is not mechanical—it’s environmental.
The Constant Presence of Water and Humidity
Water is the fundamental ingredient in corrosion. On an excavator, it’s impossible to escape—from rainfall, puddle splash, and morning dew to pressure washing after work.
When moisture lingers on exposed carbon steel fittings, it provides the electrolyte required for oxidation to start. In the presence of oxygen, a microscopic layer of rust begins forming within hours. Once started, corrosion becomes self-sustaining, as rust itself traps more moisture against the metal.
| Moisture Source | Typical Exposure Scenario | Effect on Components |
| Rain and snow | Outdoor operation in open sites | Continuous wet/dry cycling accelerates oxidation |
| Condensation | Temperature swings between day and night | Forms hidden moisture films on undercarriage fittings |
| High-pressure washing | Cleaning hydraulic areas | Forces water into joints, threads, and crevices |
| Dew and humidity | Overnight storage outdoors | Promotes galvanic corrosion on dissimilar metals |
The Abrasive Attack of Dirt, Mud, and Gravel
Excavators operate in a constant abrasive slurry of mud, sand, and crushed stone. These materials don’t just cover the fittings—they actively grind away protective layers.
Each movement, vibration, or track roll turns this debris into natural sandpaper, eroding the thin zinc or nickel plating that shields the base steel. Once the plating is breached, the corrosion process accelerates exponentially.
| Contaminant Type | Mechanism of Damage | Result |
| Wet mud | Holds moisture against metal | Sustained surface rust formation |
| Dry sand and dust | High-friction abrasion | Removal of plating and loss of surface protection |
| Gravel and stone impact | Physical chipping | Exposure of raw steel underneath |
| Oil-mixed dirt | Retains corrosive moisture | Traps acidic contaminants against fittings |
The Invisible Chemical Assault
The most aggressive form of corrosion doesn’t come from visible dirt—it comes from invisible chemical reactions. Excavators working in industrial, coastal, or winter conditions face additional threats that silently attack metal surfaces.
- Road salt and de-icing agents contain chloride ions that penetrate protective coatings and initiate pitting corrosion.
- Acidic soils (common in mining or agriculture) alter pH levels around the fittings, accelerating metal dissolution.
- Industrial cleaning agents, especially alkaline degreasers, can strip protective finishes in a single wash cycle.
- Fertilizers and chemicals used near construction or farm sites often contain ammonium or nitrate compounds that aggressively corrode uncoated steel.
The Domino Effect of Corrosion
Once corrosion begins, it rarely stops at the surface. Rust weakens wrench flats, reduces torque accuracy, and can distort sealing faces. Over time, fitting threads seize, and disassembly becomes nearly impossible without cutting or replacing components.
Consequences of Unchecked Corrosion:
- Seized or stripped threads during maintenance.
- Flare face distortion leading to chronic leaks.
- Loss of plating causing galvanic reactions with adjoining metals.
- Contaminated hydraulic fluid from rust particles entering the system.
Preventive Practices:
- Specify Zn-Ni plated or stainless steel fittings for exposed circuits.
- Apply a corrosion inhibitor spray after washing.
- Store machines under cover or in ventilated areas to reduce humidity retention.
- Conduct visual inspections weekly for early rust formation.
The Achilles’ Heel: Damaged Protective Plating
A standard hydraulic fitting is made from carbon steel, a material valued for strength but notorious for its vulnerability to corrosion. To protect it, manufacturers apply a micro-thin zinc-based plating—just a few microns thick. This coating is the fitting’s first and often only line of defense against rust. Once that fragile barrier is breached, corrosion doesn’t just start—it accelerates.
Understanding Sacrificial Plating
Zinc plating works on a principle called sacrificial protection. Zinc is more chemically active than steel, so when corrosion begins, the zinc corrodes first, effectively “sacrificing” itself to protect the base metal underneath.
However, this protection is finite—it only lasts as long as the zinc layer remains intact. Once worn away or damaged, the exposed steel reacts instantly with moisture and oxygen, forming rust that spreads rapidly beneath the remaining plating.
| Plating Type | Protection Mechanism | Corrosion Resistance (Salt Spray Hours) | Typical Use |
| Standard Zinc (Cr³⁺) | Sacrificial oxidation | 72–120 hours | General environments |
| Zinc-Nickel (Zn-Ni) | Alloy barrier + sacrificial | 500–1000+ hours | Heavy-duty, high-humidity, coastal |
| Nickel-Chrome | Passive barrier | 200–400 hours | Aesthetic or low-corrosion zones |
| Stainless Steel (no plating) | Natural passive film | Indefinite if intact | Marine or chemical exposure |
Key Point: Once corrosion breaches the plating, rust creeps beneath it, lifting it away like peeling paint—turning small scratches into large patches of red corrosion within days.
The #1 Cause of Failure: Installation Damage
The most common cause of plating damage isn’t the environment—it’s the wrench. Using an oversized wrench, working at an angle, or slipping under torque gouges through the protective coating. These small tool marks may look harmless, but they cut through the zinc and expose bare carbon steel.
When moisture, oil, and dirt enter these scratches, the corrosion begins immediately. Within weeks, those small silver marks turn to brown stains, then deep pitting rust.
Common Mistakes During Installation:
- Using adjustable wrenches that slip or shift under torque.
- Applying excessive force that crushes or tears plating on the flats.
- Fitting or disassembly without cleaning—trapping grit under wrench jaws.
- Reusing old fittings with already-damaged plating.
Tip: Always use correctly sized, clean wrenches and avoid contact between tools and finished sealing surfaces. Precision tools not only prevent leaks—they preserve corrosion protection.
Slow Death by a Thousand Scratches
Even without obvious tool damage, plating wears away over time. Every vibration, hose movement, or contact with surrounding components slowly erodes the zinc layer. Dirt and dust act as fine abrasives, especially around hex edges and threads, where coating thickness is naturally thinner.
- Hose-to-fitting movement: Constant micro-rubbing under vibration polishes plating away.
- Flying debris: Gravel or rock chips striking fittings remove zinc on impact.
- Cleaning abrasion: Repeated high-pressure washing wears down coatings layer by layer.
As this slow erosion continues, the steel begins to oxidize beneath the plating—invisible at first, but eventually showing as red rust bleeding through the silver finish.
| Cause | Where It Happens | Visible Result |
| Wrench wear | Hex flats, corners | Deep scratches, rust spots |
| Vibration rub | Hose near fitting | Polished or dull patches |
| Debris impact | Front boom lines | Pitting, localized corrosion |
| Washdown erosion | Undercarriage areas | Dull, gray, patchy surface |

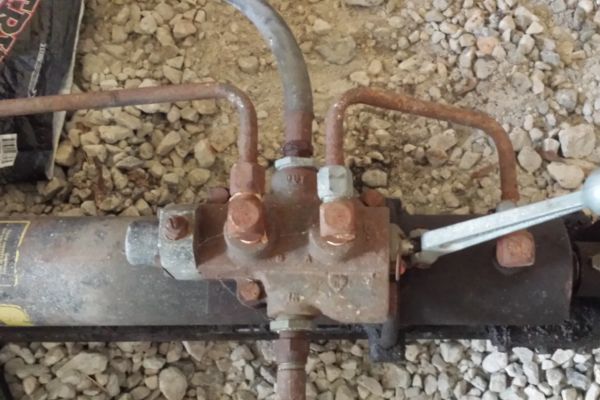

Water’s Hidden Pathways to Destruction
Rust rarely starts on the flat, open surfaces of a fitting. It begins in the crevices and tight spaces where water can become trapped and do its destructive work undisturbed.
Capillary Action: Water Wicking into Threads
The tight gaps between the male and female threads of a connection act like a sponge. Capillary action wicks water deep into the thread roots, a place where it is shielded from evaporation and can promote corrosion for extended periods.
The “Breathing” Effect of Temperature Cycles
As an excavator works, the hydraulic system heats up, and the air inside the thread gaps expands and escapes. When it cools overnight, it contracts, drawing in cool, moist night air. This cycle repeatedly pulls corrosive humidity into the connection.
The High-Pressure Washing Problem
While necessary for maintenance, using a high-pressure washer can be a double-edged sword. It can force water past seals and deep into threaded areas, packing moisture into the most vulnerable crevices where rust loves to form.
| Plating/Material | Corrosion Resistance (ASTM B117 Salt Spray Hours to Red Rust) | Typical Application & Notes |
| Clear Trivalent Zinc | 72 – 120 Hours | Standard, budget-friendly option for dry or indoor environments. Inadequate for excavators. |
| Yellow Trivalent Zinc | 120 – 200 Hours | Slightly better performance due to thicker chromate conversion coating. Still a low-end option. |
| Zinc-Nickel Alloy (Zn-Ni) | 720 – 1,200+ Hours | Excellent choice. Widely used in automotive and heavy equipment for superior corrosion resistance without extreme cost. |
| 304 Stainless Steel | Essentially Immune to Red Rust | Good corrosion resistance but lower pressure rating and prone to galling. Not ideal for high-pressure hydraulics. |
| 316 Stainless Steel | Immunity to Red Rust, Resists Pitting | The ultimate choice for extreme corrosion (marine, chemical). High cost and lower pressure ratings than carbon steel. |
The Corrosive Chemistry at Play
Corrosion isn’t a single event—it’s a network of electrochemical reactions that work together to destroy metal. On an excavator, these processes happen continuously and simultaneously, triggered by water, oxygen, vibration, and the contact between different metals. The result is a slow but relentless chemical war that eats away at fittings from both the outside and within.
Simple Oxidation
This is the most familiar and visible form of corrosion. When unprotected steel is exposed to oxygen and moisture, an oxidation reaction begins almost instantly. The iron atoms lose electrons and react with oxygen to form hydrated iron(III) oxide—better known as red rust.
The process can start from a single scratch in the plating and, once initiated, spreads underneath, lifting and flaking off the remaining protective layer.
Chemical Reaction: Fe → Fe²⁺ + 2e⁻ O₂ + 2H₂O + 4e⁻ → 4OH⁻ Fe²⁺ + OH⁻ → Fe(OH)₃ → Fe₂O₃·H₂O (red rust)
| Condition | Effect | Result |
| Presence of water and air | Starts the oxidation process | Visible red rust forms |
| Repeated wet/dry cycles | Speeds up oxygen reaction | Rust spreads under plating |
| Standing water | Promotes deeper corrosion | Pitting and metal loss |
Galvanic Corrosion: The Battery Effect
Galvanic corrosion occurs when two dissimilar metals come into electrical contact in the presence of an electrolyte such as water, condensation, or mud. This setup creates a tiny galvanic cell, effectively turning the connection into a miniature battery.
- The less noble metal (anode) gives up electrons and corrodes faster.
- The more noble metal (cathode) is protected and corrodes more slowly.
On an excavator, this happens frequently between:
- Steel fittings and brass adapters
- Carbon steel and stainless steel components
- Zinc plating and aluminum surfaces
A Proactive Defense Against Rust
Fighting corrosion isn’t a single action, but a comprehensive strategy. It starts with selecting the right components and continues through meticulous installation and maintenance practices.
Demand Superior Plating from the Start
The easiest way to improve corrosion resistance is to specify fittings with advanced plating, like Zinc-Nickel (Zn-Ni). While slightly more expensive, the massive increase in service life provides an exceptional return on investment.
Installation Without Injury
Use a high-quality, six-point socket or a properly sized wrench that fits snugly on the hex. This prevents rounding the corners and damaging the plating. Never use pipe wrenches or adjustable wrenches on hydraulic fittings.
The Power of Cleanliness
Regularly washing mud and dirt off the machine is critical. Dirt traps moisture and chemicals against the fittings, creating a permanent poultice of corrosion. A clean machine is a longer-lasting machine.
Adding a Final Barrier
For maximum protection, apply a water-displacing anti-corrosion spray, a heavy grease, or a wax-based coating over the fittings after installation. This provides a renewable physical barrier between the plating and the hostile environment.
| Preventative Action | When to Perform | Primary Benefit |
| Specify Zinc-Nickel Plated Fittings | During parts ordering and-or machine specification. | Increases baseline corrosion resistance by over 10 times compared to standard zinc plating. The #1 most effective preventative step. |
| Use a Correctly Sized 6-Point Wrench/Socket | Every single time a fitting is installed or removed. | Prevents physical damage to the hex corners, preserving the factory-applied plating and ensuring a secure grip. |
| Clean and Dry Threads Before Assembly | During any new installation or re-assembly. | Removes any moisture or contaminants that could be sealed inside the threads, preventing crevice corrosion from starting. |
| Apply Anti-Seize or Protective Grease | During new installation, especially on threads. | Fills the void in the threads, displacing water and preventing both corrosion and thread galling, making future removal easier. |
| Regular High-Pressure Washdowns | Part of routine machine maintenance (e.g., weekly). | Removes the build-up of corrosive mud, salt, and chemicals that trap moisture against the fitting surfaces. |
| Apply External Protective Coating (Wax/Grease/Spray) | After installation and after each machine washing. | Creates a renewable physical barrier that shields the fitting and its plating from moisture, abrasion, and chemicals. |
By understanding how water, abrasion, chemicals, and galvanic reactions attack carbon steel, you can act early: specify higher-grade plating such as Zn-Ni, protect fittings during installation, keep machines clean, and renew external barriers regularly. Treating corrosion control as part of normal maintenance, rather than an afterthought, keeps hydraulic fittings serviceable longer, preserves torque accuracy and sealing surfaces, and protects both productivity and safety on every job.
FAQ
Why do the corners of the fitting’s nut rust first?
The plating is thinnest and most easily damaged on sharp corners. Wrench use and minor impacts concentrate wear on these edges, exposing the steel underneath long before the flat surfaces corrode.
Is a rusty fitting dangerous?
Yes. While surface rust is cosmetic, heavy corrosion weakens the fitting’s structural integrity, especially in the threads. It can also cause the fitting to seize, requiring destructive force to remove, which can damage other components.
Are stainless steel fittings a better option?
For corrosion, yes, but they have trade-offs. Stainless steel fittings are much more expensive, often have lower pressure ratings than carbon steel, and are more susceptible to thread galling if not installed carefully with lubrication.
Can I paint over my fittings to stop them from rusting?
You can, but it is often a temporary solution. The paint will be easily chipped by wrenches during future maintenance. A better option is a wax-based or grease-based corrosion inhibitor that is easy to re-apply.
Does the type of hydraulic fluid affect rust?
Not directly on the outside of the fitting. However, if a fitting is leaking, certain fluids (like water-glycol) can be more corrosive to the exterior than standard mineral-based oil.
My new replacement fitting rusted in a month. Is it defective?
It’s unlikely to be defective. It’s far more probable that it was a standard zinc-plated fitting and its plating was compromised during installation or by the harsh operating environment. For excavators, demanding a superior plating like Zinc-Nickel is crucial.
