What are NPSM threads? Everything You Need to Know

Understanding the types of threads used in pipes and fittings is crucial for ensuring the efficiency, safety, and reliability of hydraulic and plumbing systems. NPSM threads, also known as National Pipe Straight Mechanical threads, are particularly essential in these industries because they offer a unique approach to pipe fitting that differs from the more common tapered threads like NPT (National Pipe Tapered).

What Are NPSM Threads?

Definition

NPSM (National Pipe Straight Mechanical) threads are a type of pipe thread used primarily in hydraulic and plumbing applications. Unlike other thread types that may be tapered, NPSM threads are designed as straight threads, meaning they maintain a consistent diameter along their entire length. This standardization is defined by the ANSI (American National Standards Institute) and focuses on mechanical connections rather than creating pressure-tight seals. The purpose of NPSM threads is to provide a secure fit that relies on additional sealing components, such as O-rings or gaskets when needed to prevent leaks.

Thread Characteristics

Straight (Non-Tapered) Nature: NPSM threads are parallel, meaning they do not taper inward or outward along the length of the thread. This is in contrast to NPT (National Pipe Tapered) threads, which gradually narrow, creating a wedging effect when tightened.

Mechanical Functionality: Since NPSM threads do not taper, they are primarily designed for mechanical connections rather than for sealing on their own. They are ideal for applications where a tight mechanical fit is necessary, and the seal is achieved using additional components like sealing washers or O-rings.

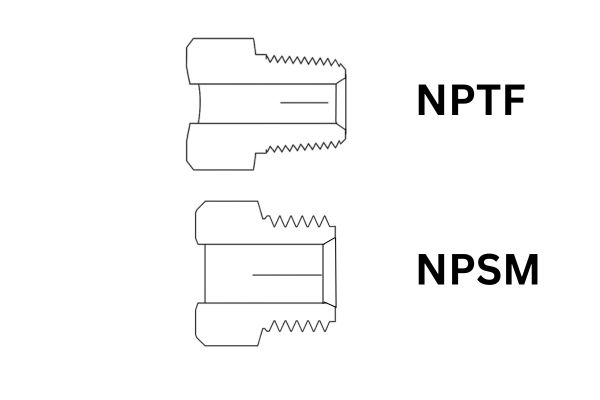

Compatibility with NPTF Threads: NPSM threads are often compatible with NPTF (National Pipe Tapered Fuel) threads. While NPSM threads themselves are not tapered, they can work with NPTF counterparts, which are specifically designed to create a dry seal. This compatibility allows NPSM and NPTF components to be used together, particularly when a non-leak seal is necessary for hydraulic or pneumatic systems.

Comparison with NPT Threads

Tapered vs. Straight Design: The primary distinction between NPSM and NPT threads lies in their structure. NPT threads are tapered, meaning they decrease in diameter as they extend, creating a tight, wedging seal when two NPT components are threaded together. This self-sealing characteristic makes NPT threads suitable for pressure-tight applications, often eliminating the need for additional sealing components.

Application Differences: NPSM threads, being straight, do not create this pressure-tight seal on their own. Therefore, they are used in situations where the primary requirement is mechanical strength rather than sealing capability. NPT threads are commonly used for high-pressure systems where a reliable, leak-proof connection is essential without additional seals.

Sealing Mechanics: In NPT systems, the taper creates a metal-to-metal seal as the threads compress against one another. In contrast, NPSM threads depend on supplementary components like O-rings or washers to ensure a leak-free connection. This makes NPSM threads advantageous for applications where maintaining a consistent diameter is important, and flexibility in sealing options is required.

History and Development of NPSM Threads

Origins

NPSM threads originated in the early 20th century as industries began to standardize various pipe threading practices in North America. As the demand for reliable and efficient connections in hydraulic, plumbing, and mechanical systems grew, it became clear that a consistent and standardized thread type was needed to ensure compatibility across different manufacturers and applications. The introduction of NPSM threads filled this gap by providing a non-tapered, straight thread option that could be used in various mechanical applications without the need for a self-sealing mechanism.

Development

The evolution of pipe threading standards has been heavily influenced by organizations such as the ANSI (American National Standards Institute). ANSI played a pivotal role in establishing guidelines for various types of threaded connections, including NPSM. In the mid-20th century, as industrial standards began to be more formalized, ANSI developed specifications that outlined the dimensions, tolerances, and performance requirements for NPSM threads. This standardization was crucial for manufacturers and engineers, allowing for interchangeable components that could ensure safety and performance across different systems and applications.

Why NPSM Threads Were Created

NPSM threads were created to address specific challenges associated with traditional tapered threads, particularly in applications where a mechanical fit was necessary without the complexities of a sealing system. The straight design of NPSM threads allows for easier alignment and assembly, making them ideal for scenarios where components must fit together without altering their structural integrity.

Moreover, NPSM threads provide flexibility by allowing users to select appropriate sealing materials based on their specific application needs. This adaptability makes NPSM threads suitable for various industries, including hydraulic systems and plumbing, where different environmental conditions and pressures must be accounted for. The ability to use NPSM threads in conjunction with other sealing mechanisms enhances their usability, ensuring a reliable connection while maintaining the mechanical advantages of a straight thread design.

Technical Specifications of NPSM Threads

Thread Dimensions

NPSM (National Pipe Straight Mechanical) threads are designed according to specific dimensional standards to ensure consistency and compatibility. The key dimensions for NPSM threads include:

Pitch: The pitch of an NPSM thread refers to the distance between adjacent thread peaks. NPSM threads maintain a uniform pitch that matches industry standards to ensure compatibility with other components. For example, an NPSM thread with a ½-inch diameter will have a corresponding pitch that aligns with ANSI standards.

Diameter: NPSM threads are straight, meaning they maintain a consistent outside diameter along the length of the thread. This outside diameter is crucial for ensuring that the thread fits precisely into the corresponding female fitting without tapering. The inside diameter, or root diameter, is also consistent to maintain uniformity.

Thread Angle: NPSM threads have a standard thread angle of 60 degrees, similar to other pipe threads like NPT (National Pipe Tapered). This angle ensures that the threads interlock properly when mated with compatible fittings, providing a secure mechanical connection.

Thread Tolerance Classes

NPSM threads adhere to specific tolerance classes that determine the allowable variance in thread dimensions. Tolerances are crucial for ensuring a reliable and secure fit between male and female components. The standard tolerance classes for NPSM threads are defined by ANSI and include:

Class 2A (External Threads): This class allows for a moderate level of tolerance, suitable for general-purpose applications where components must fit together without excessive tightness. It ensures that the external threads of the male fitting will mate easily with the internal threads of the female fitting, facilitating straightforward assembly.

Class 2B (Internal Threads): This class applies to the internal threads in the female fitting. It allows for similar levels of tolerance as Class 2A, ensuring that the threads are not too tight or too loose, providing a balanced fit that can accommodate slight variations while maintaining functionality.

These tolerance classes help ensure that NPSM threads achieve the required balance between ease of installation and reliability in the fit, minimizing the risk of thread damage or poor alignment during assembly.

Standard Sizes

NPSM threads come in a variety of standard sizes, accommodating different applications and system requirements. The most common sizes include:

¼ inch NPSM: Often used in smaller hydraulic fittings, instrumentation, or low-pressure applications where precision and compact size are required.

½ inch NPSM: A common size for plumbing applications, as well as hydraulic systems, where a moderate flow rate and connection stability are necessary.

¾ inch NPSM: Typically used in larger systems requiring stronger mechanical connections, such as high-flow plumbing or certain hydraulic applications.

1 inch and above: For larger-scale systems and industrial applications, where the connection must handle greater flow rates or mechanical stress.

Each size corresponds to a specific set of dimensional and pitch standards, ensuring that components can be easily matched and interchanged within and across systems. The use of these standardized sizes allows for broad compatibility, making it easier to source and replace parts in various applications.

Limitations and Considerations

Pressure Limitations

One of the primary limitations of NPSM (National Pipe Straight Mechanical) threads is their performance in high-pressure environments. Due to their straight (non-tapered) design, NPSM threads do not create a pressure-tight seal on their own. Unlike tapered threads like NPT (National Pipe Tapered), which wedge together as they are tightened, creating a seal that can withstand higher pressure, NPSM threads rely solely on mechanical engagement without this wedging effect. As a result:

Pressure Restrictions: NPSM threads are generally limited to low- and medium-pressure applications where the mechanical strength of the connection is sufficient, but a pressure-tight seal is not critical. In hydraulic or pneumatic systems operating under higher pressures, using NPSM threads without additional sealing measures can lead to leaks or even system failure.

Sealing Requirements

Given their non-sealing nature, NPSM threads often require the use of additional sealing components, especially in applications where maintaining pressure integrity is critical. The most common sealing methods include:

O-rings: These are commonly used with NPSM fittings to create a seal between the male and female components. The O-ring sits in a groove, compressing as the threads are tightened to form a pressure-tight barrier. This method is especially effective in hydraulic systems, where reliable sealing is essential to prevent leaks.

Sealants (e.g., PTFE/Teflon Tape or Pipe Dope): For some applications, sealants may be applied to NPSM threads to enhance the connection’s leak resistance. However, this approach is generally supplementary, as the primary seal still relies on the use of an O-ring or gasket.

Gaskets: These flat sealing components can be used with NPSM threads when two flat surfaces need to be joined, providing a secure seal when compressed.

These additional sealing measures are necessary because, without them, NPSM threads alone cannot maintain a leak-free connection in high-pressure or fluid-handling systems. Engineers must ensure that the appropriate sealing method is chosen based on the system’s requirements to prevent fluid or gas escape.

Temperature Tolerance

While NPSM threads can be used across a broad range of temperatures, their performance is also influenced by the sealing components used:

Temperature Limits of NPSM Threads: The metal used for NPSM fittings (commonly stainless steel or brass) can generally handle temperatures ranging from -65°F to 400°F (-54°C to 204°C) or more, depending on the material. However, this capability depends heavily on the specific sealing materials integrated with the threads.

O-Ring and Sealant Temperature Ratings: The effectiveness of O-rings, gaskets, and sealants diminishes outside of their temperature tolerance range. For instance, standard rubber O-rings may fail at high temperatures or become brittle at very low temperatures, compromising the seal. In such cases, specialized high-temperature O-rings (e.g., made from Viton or silicone) are needed.

Alternative Thread Types: For extreme temperature applications (either very high or low), alternative thread types like NPT or NPTF (which provide a dry seal without reliance on additional materials) may be preferred, especially when sealing integrity is vital, and the environmental conditions are harsh.

How to Identify and Measure NPSM Threads

Identification Tips

Identifying NPSM threads accurately is crucial for ensuring compatibility in mechanical systems. Here are some visual and measurement techniques:

Visual Inspection: NPSM threads appear straight and parallel, lacking the taper seen in NPT threads. Look for a consistent diameter throughout the length of the threaded section.

Thread Count: Count the number of threads per inch (TPI). NPSM threads typically have a specific TPI that aligns with their size, which can help differentiate them from other thread types.

End Shape: Examine the end of the threaded fitting; NPSM threads often have a more rounded profile at the tip compared to NPT threads, which may have sharper, more defined edges.

Thread Gauges

Using thread gauges is a reliable method for measuring thread pitch and diameter:

Thread Pitch Gauge: This tool has multiple blades that allow you to measure the pitch by matching the thread profile. Align the gauge with the threads to determine the correct TPI.

Caliper: A caliper can be used to measure the external diameter of the threaded section. For NPSM, ensure the measurement is consistent along the entire length, confirming the non-tapered design.

Go/No-Go Gauges: These are specialized tools designed to quickly assess whether a thread fits within specified tolerances. A “go” gauge should fit snugly, while a “no-go” gauge should not fit at all, indicating whether the threads are within acceptable limits.

Common Mistakes in Identification

When identifying NPSM threads, several common errors can occur:

Confusing NPSM with NPT: The most frequent mistake is mistaking NPSM for NPT threads due to their similar appearance. To avoid this, always check for taper; if the threads are straight, they are NPSM.

Ignoring Thread Count: Failing to measure the TPI can lead to incorrect identification. Always confirm the thread count against standard specifications for NPSM.

Neglecting Compatibility: Even if NPSM and NPT threads appear similar, they may not be compatible in practice. Ensure that any mating components are designed for the same thread type to avoid leaks or failures.

NPSM vs. Other Thread Types

NPSM vs. NPT

Sealing Mechanics: NPT threads create a seal through their tapered design, which compresses against the male fitting to form a tight, pressure-resistant barrier. NPSM threads, on the other hand, do not provide this self-sealing feature and rely on additional sealing components, like O-rings.

Applications: NPT threads are used in applications where a leak-proof connection is critical, such as high-pressure systems. NPSM threads are suitable for mechanical connections where flexibility in sealing methods is desired.

Pressure Tolerance: NPT threads can generally handle higher pressures due to their self-sealing properties. NPSM threads are limited to lower pressures unless supplemented with effective sealing materials.

NPSM vs. BSPP (British Standard Pipe Parallel)

Compatibility: NPSM threads are predominantly used in North America, while BSPP threads are more common in European and Commonwealth countries. Although both are straight threads, they have different dimensions and tolerances, making them incompatible without appropriate adapters.

Geographic Usage: The choice between NPSM and BSPP often depends on regional standards and the specific industry. For example, plumbing components in North America will typically use NPSM, while those in the UK may use BSPP.

NPSM vs. NPTF (Dryseal)

Usage Together: NPSM threads can be used with NPTF threads, as they both share similar diameters and are designed for mechanical strength. However, while NPTF threads provide a dry seal without the need for additional sealing materials, NPSM threads require supplementary components to ensure leak resistance.

Importance of Sealing Techniques: When combining NPSM and NPTF components, it’s essential to ensure proper sealing techniques are used. For instance, O-rings should be correctly placed to accommodate the straight nature of NPSM threads, while NPTF threads can create a seal without relying solely on additional sealing materials.

Conclusion

For professionals in hydraulic, plumbing, and related fields, it is crucial to remember that NPSM threads provide reliable mechanical connections but require additional sealing components for effective performance in high-pressure situations. Understanding how to identify and measure NPSM threads accurately will help ensure compatibility with other components, reducing the risk of leaks and enhancing system reliability. Familiarity with the differences between NPSM and other thread types will facilitate better decision-making when selecting fittings for various applications.

FAQ

What does NPSM stand for?

NPSM stands for National Pipe Straight Mechanical, which refers to a standard for straight pipe threads used in various mechanical applications.

How do NPSM threads differ from NPT threads?

NPSM threads are straight and do not create a self-sealing effect, while NPT (National Pipe Tapered) threads are tapered and form a seal through compression as they are tightened.

What applications are suitable for NPSM threads?

NPSM threads are commonly used in plumbing and hydraulic systems, particularly where mechanical connections are needed without the requirement for a pressure-tight seal.

Do NPSM threads require additional sealing materials?

Yes, NPSM threads typically require additional sealing components, such as O-rings or sealants, to ensure leak resistance, especially in high-pressure applications.

What are the standard sizes available for NPSM threads?

Common standard sizes for NPSM threads include ¼ inch, ½ inch, and ¾ inch, among others, each used for different applications based on flow rates and mechanical requirements.

How can I identify NPSM threads?

To identify NPSM threads, look for straight, parallel threads and measure the pitch and diameter. Using thread gauges can help ensure accurate identification.

Oct, 2024

Hose Clamps Selection: Boosting Agricultural Efficiency

Hose clamps might seem like small, inconspicuous components, but their role in agriculture is crucial. From ensuring efficient irrigation systems to maintaining the functionality of complex machinery, hose clamps are integral to modern farming operations. As agricultural systems continue to advance, these small devices help secure hoses and connections, making sure that equipment operates without leaks or failures. This is especially important in large-scale farming where efficiency and reliability directly influence productivity and profitability.

Understanding Hose Clamps: Types and Functions

What are Hose Clamps?

Hose clamps are mechanical devices designed to hold hoses in place, providing a secure connection between hoses and fittings or components in various systems. Their primary purpose is to ensure that hoses remain attached under varying conditions, such as pressure changes, temperature fluctuations, and mechanical vibrations. In agricultural settings, where hoses are frequently subjected to demanding conditions—like high pressure from irrigation systems or the corrosive nature of fertilizers—hose clamps play a critical role in maintaining operational efficiency and preventing leaks.

The importance of these components extends beyond mere attachment; a well-fitted hose clamp can significantly reduce the risk of system failures, water wastage, and crop damage. With proper selection and maintenance, hose clamps help enhance the longevity and reliability of agricultural equipment.

Types of Hose Clamps

Worm Gear Clamps

Description: Worm gear clamps are the most commonly used type of hose clamp. They consist of a metal band with a threaded screw that tightens or loosens the band around the hose.

Applications: Their versatility makes them ideal for various agricultural uses, especially in irrigation systems. They can accommodate different hose sizes and are easy to adjust, making them suitable for situations where flexibility is essential.

T-Bolt Clamps

Description: T-bolt clamps feature a heavy-duty design with a T-shaped bolt that provides a strong, uniform tightening force around the hose.

Applications: These clamps are best suited for high-pressure applications, such as in agricultural machinery that requires secure hose connections. Their robust design ensures that they can handle the significant stress of hydraulic systems and high-flow irrigation setups.

Spiral Clamps

Description: Spiral clamps are characterized by a continuous spiral band that wraps around the hose, allowing for a more uniform pressure distribution.

Applications: They are particularly useful in applications with vibration, such as on equipment that operates at high speeds or under variable loads. By minimizing movement and securing the hose tightly, spiral clamps help maintain the integrity of the connections.

Oetiker Clamps

Description: Oetiker clamps are a type of ear clamp that provides a tamper-proof solution. They are installed using special tools that crimp the band around the hose.

Applications: Commonly used in hydraulic systems, these clamps are ideal for environments where connections need to remain secure without the risk of loosening over time, such as in high-vibration scenarios or with critical fluid transfer.

Band Clamps

Description: Band clamps consist of a flat band that encircles the hose and provides pressure evenly around its circumference.

Applications: They are often used for larger hoses, such as those found in slurry systems or large irrigation setups, where even pressure distribution is essential for preventing leaks.

Choosing the Right Type Based on the Application

Selecting the right hose clamp is crucial for ensuring optimal performance and safety in agricultural applications. Here are some criteria to consider when choosing the appropriate type:

Application Type: Determine the specific use of the hose. For irrigation, worm gear clamps may be sufficient, while high-pressure machinery requires T-bolt clamps. Understanding the environment in which the clamps will operate is essential.

Pressure Requirements: Assess the pressure levels that the hose will be subjected to. High-pressure applications necessitate stronger clamps like T-bolt or Oetiker clamps, which can withstand greater forces without failure.

Hose Material and Size: Consider the material of the hose, as some clamps may not be compatible with certain types of rubber or plastic. Additionally, ensure that the clamp size matches the hose diameter for a secure fit.

Environmental Conditions: Take into account exposure to chemicals, moisture, and temperature variations. Stainless steel clamps are recommended for corrosive environments, while standard galvanized options may suffice in less demanding conditions.

Maintenance Needs: Evaluate how often the clamps will be accessed for maintenance. For applications that require frequent adjustments, worm gear clamps may be more practical due to their easy adjustability compared to tamper-proof options like Oetiker clamps.

Factors to Consider When Selecting Hose Clamps

Choosing the right hose clamp for agricultural applications is critical to ensuring efficiency and safety. Several factors must be considered, including material, size and fit, pressure requirements, and environmental conditions. Understanding these factors can significantly impact the performance of agricultural systems, preventing costly leaks and failures.

Material Considerations

Stainless Steel

Overview: Stainless steel hose clamps are highly resistant to corrosion, making them an ideal choice for environments exposed to moisture, chemicals, or harsh weather conditions. This material does not rust, which is particularly advantageous in agricultural settings where water, fertilizers, and pesticides are prevalent.

Applications: These clamps are commonly used in irrigation systems and equipment that require frequent exposure to wet conditions. For instance, stainless steel clamps are essential in drip irrigation setups and in areas where hoses may come into contact with corrosive substances. Their durability ensures a long lifespan and reduces the need for frequent replacements, contributing to overall operational efficiency.

Galvanized Steel

Overview: Galvanized steel clamps are coated with a layer of zinc to prevent rusting. While they are less resistant to corrosion compared to stainless steel, they are suitable for less demanding applications where exposure to moisture is limited.

Applications: These clamps are effective in dry environments and can be used in standard irrigation systems or machinery that does not experience extreme conditions. They offer a cost-effective solution for farmers looking to secure hoses without the higher expense of stainless steel options. However, their durability is not as robust, making them more suitable for less critical applications.

Size and Fit

The size and fit of hose clamps are critical factors that can greatly influence their effectiveness. A poorly fitted clamp can lead to leaks, hose disconnections, and potential equipment failures.

Importance of Accurate Measurements: When selecting a hose clamp, it is vital to accurately measure the diameter of the hose. Clamps come in various sizes, and using a clamp that is too large can result in inadequate pressure to secure the hose, while a clamp that is too small may not fit at all. Ensuring a snug fit allows the clamp to exert even pressure around the hose, creating a reliable seal that prevents leaks.

Proper Fit for Security: A well-fitting clamp not only secures the hose in place but also accommodates any potential expansion or contraction due to temperature changes. This adaptability helps maintain the integrity of the connection over time, ensuring that the hose remains attached during operation, particularly in dynamic systems where vibrations and movements are common.

Pressure Requirements

Pressure levels play a significant role in determining the appropriate type of hose clamp to use.

Low Pressure: For applications involving low pressure—such as standard irrigation systems—worm gear clamps or standard band clamps may be sufficient. These clamps provide adequate holding power without the need for the additional strength required in high-pressure scenarios.

High Pressure: In contrast, high-pressure applications, such as those found in hydraulic systems or equipment that experiences significant fluid flow, require more robust clamps like T-bolt clamps or Oetiker clamps. These clamps are designed to withstand greater forces, ensuring that the hoses remain securely attached under pressure. Using the wrong type of clamp in a high-pressure application can lead to catastrophic failures, causing leaks that could harm crops or damage equipment.

Environmental Factors

The environment in which the hose and clamp will operate is another critical consideration.

Temperature Variations: Fluctuations in temperature can affect both the hose material and the clamp’s performance. Clamps must be able to maintain their gripping force in extreme heat or cold. For instance, certain materials may become brittle in low temperatures, compromising their effectiveness. Selecting clamps that can withstand the specific temperature range of the operating environment is essential.

Moisture and Chemical Exposure: Exposure to moisture and chemicals is common in agricultural settings. Stainless steel clamps are often the best choice for environments where hoses will be exposed to water, fertilizers, or pesticides. Conversely, galvanized clamps may deteriorate over time in such conditions. Understanding the specific chemicals the clamps will encounter is crucial in making an informed selection.

Fertilizer and Pesticides: Certain agricultural products can be corrosive, necessitating the use of specialized materials. For example, clamps used in systems handling aggressive fertilizers or pesticides should be chosen based on their chemical compatibility to avoid premature failure.

Hose Clamps in Irrigation Systems

Importance of Reliable Connections in Irrigation

In agricultural irrigation systems, hose clamps are essential for ensuring secure and reliable connections between hoses and pipes. A well-fitted and durable hose clamp prevents water loss, which is critical for maintaining an efficient irrigation system. Leaks or loose connections can result in significant water wastage, reduced pressure, and uneven water distribution, which can directly impact crop health and yield.

By securing the hoses firmly, clamps help maintain a consistent flow of water throughout the irrigation system. This consistency ensures that all areas of the field receive an appropriate amount of water, optimizing growth and reducing the risk of crop failure. Reliable clamps also minimize the likelihood of system breakdowns, reducing the need for frequent maintenance and associated costs.

Best Clamps for Different Irrigation Types

Drip Irrigation

Suitable Clamps: Worm gear clamps are ideal for drip irrigation systems due to their versatility and ease of adjustment. These systems typically operate under low pressure, so the flexibility and simple design of worm gear clamps provide a sufficient and cost-effective solution.

Application: These clamps can be used to secure small-diameter hoses, ensuring that the water is delivered precisely where needed without any leakage. The ability to easily tighten or loosen the clamp also allows for quick adjustments during installation or maintenance.

Sprinkler Systems

Clamps for Moderate Pressure and Flexibility: For sprinkler systems that operate at moderate pressure, T-bolt clamps or spiral clamps are recommended. These types provide a tighter grip and better stability, making them suitable for systems that experience intermittent pressure fluctuations.

Application: Spiral clamps, in particular, offer excellent resistance to vibration, which is common in sprinkler systems where mechanical movements occur. This resistance helps maintain secure connections even when the system cycles on and off, ensuring consistent water flow throughout the operation.

High-Pressure Irrigation

Heavy-Duty Clamps: High-pressure irrigation setups, such as those used in large-scale or long-distance watering systems, require robust clamps like T-bolt clamps. These clamps provide a secure seal capable of handling the high pressure exerted within these systems.

Application: T-bolt clamps are built to withstand significant forces, ensuring that hoses remain securely attached, preventing blowouts, and maintaining high flow rates. These clamps are particularly useful for high-pressure water pumps and extensive irrigation networks that cover large fields.

By choosing the appropriate clamp type for each irrigation method, farmers can ensure that their systems operate efficiently, reducing water waste and maintaining crop health.

Hose Clamps for Agricultural Machinery

Machinery Applications

In agriculture, machinery such as crop sprayers, seed drills, and slurry spreaders rely heavily on hose clamps to maintain secure connections. These machines often operate under demanding conditions where hoses are subjected to high pressure, vibrations, and frequent movements.

Crop Sprayers: These devices use hose clamps to attach hoses that deliver pesticides and fertilizers. Given the chemical exposure, stainless steel clamps are often preferred to resist corrosion and ensure a secure connection, preventing leaks that could be hazardous to crops and operators.

Seed Drills: Seed drills require precise hose connections to channel seeds from hoppers to the ground. Worm gear clamps are suitable here, as they provide a flexible and adjustable option for securing small to medium-sized hoses involved in seed distribution.

Slurry Spreaders: These machines distribute liquid fertilizers or manure through a sequence of hoses connected to a tank. Heavy-duty clamps like T-bolt clamps are essential for these setups, as they provide the strength needed to handle the thick and often abrasive materials transported under pressure.

High-Pressure Applications

High-pressure machinery, such as hydraulic systems and high-capacity irrigation pumps, demands the use of specially designed clamps capable of withstanding intense pressure levels. T-bolt clamps are the preferred choice in these situations due to their strength and durability.

Application: T-bolt clamps offer a uniform tightening force, ensuring that hoses remain securely attached under the pressure exerted by the system. These clamps are also beneficial for high-vibration machinery, as they provide stability and prevent disconnections, which could result in costly equipment damage and operational downtime.

Maintenance Tips

Regular maintenance of hose clamps is crucial to ensure continuous machinery operation and prevent unexpected failures:

Routine Inspections: Frequently check the condition of hose clamps, especially on equipment exposed to harsh environments or high pressures. Look for signs of corrosion, wear, or looseness, which could indicate that a clamp needs adjustment or replacement.

Tightening and Adjustments: During inspections, tighten clamps as needed to maintain a secure connection. Ensure that the torque applied is appropriate for the clamp type—too much force can damage hoses, while too little may not provide a sufficient seal.

Replacement Guidelines: Replace any clamps that show significant wear, corrosion, or damage. It’s also advisable to keep a stock of essential clamps, such as worm gear or T-bolt clamps, to minimize downtime during maintenance tasks.

Cleaning and Corrosion Prevention: Regularly clean clamps and hoses to remove debris and chemical residues that could accelerate corrosion. Using anti-corrosive treatments or selecting stainless steel clamps can extend the life of the components, especially in applications involving chemicals or frequent water exposure.

Safety Considerations

Impact of Loose Connections

Loose or improperly fitted hose clamps can pose significant risks in agricultural settings. One of the primary dangers is the potential for leaks, which can lead to hazardous conditions, particularly when transporting chemicals or high-pressure fluids. These leaks not only waste resources but can also create slippery surfaces that increase the risk of slips and falls. Furthermore, loose connections may result in equipment damage, as hoses can detach under pressure, leading to costly repairs and operational downtime. In severe cases, sudden hose disconnections can cause injuries to workers nearby due to flying debris or splashes of hazardous materials.

In high-pressure systems, the stakes are even higher. A malfunctioning clamp can lead to catastrophic failures, potentially injuring operators and nearby personnel. This highlights the critical need for proper clamp selection and installation to ensure a safe working environment.

Best Practices for Ensuring Safety

To minimize safety hazards associated with hose clamps, the following best practices are essential:

Regular Inspections: Conduct routine checks of hose clamps to identify signs of wear, corrosion, or loosening. Early detection of issues can prevent accidents and equipment failures.

Proper Installation: Ensure that clamps are installed correctly according to the manufacturer’s guidelines. The right torque should be applied, as over-tightening can damage hoses while under-tightening can lead to leaks.

Use Appropriate Clamps: Select the right type of clamp for the specific application and pressure requirements. Consider factors such as hose size, material, and environmental conditions to choose clamps that provide secure connections.

Training and Awareness: Provide training for staff on the importance of hose clamp maintenance and safety practices. Raising awareness about the risks associated with improper installations can foster a culture of safety in the workplace.

Documentation and Protocols: Maintain detailed records of inspections and maintenance activities. Establishing protocols for routine checks and replacements can help ensure that hose clamps remain in optimal condition.

Conclusion

To achieve optimal efficiency and safety, it’s essential for farmers and agricultural professionals to periodically assess their current hose clamp usage. Consider inspecting all connections and replacing or upgrading clamps that show signs of wear, corrosion, or improper fit. By investing in high-quality, durable hose clamps suited to the specific demands of your systems, you can minimize downtime, enhance equipment performance, and protect both crops and personnel from potential hazards.

FAQ

What are hose clamps used for in agriculture?

Hose clamps secure hoses and pipes in irrigation systems and machinery, preventing leaks and ensuring efficient fluid transfer.

How do I choose the right hose clamp for my application?

Consider the type of application (e.g., irrigation or machinery), pressure requirements, hose size, and environmental conditions when selecting a hose clamp.

What materials are best for hose clamps?

Stainless steel is ideal for corrosive environments, while galvanized steel is suitable for less demanding conditions. Choose based on the specific environment of use.

How often should I inspect my hose clamps?

Regular inspections should be conducted every few weeks or after significant usage, particularly for equipment exposed to harsh conditions.

What signs indicate that a hose clamp needs replacement?

Look for signs of corrosion, wear, or loosening, which can compromise the clamp’s effectiveness and lead to leaks or disconnections.

Can I reuse hose clamps after removal?

It depends on their condition. If they show no signs of damage or wear, they may be reused; however, it’s generally safer to replace them to ensure reliability.

Oct, 2024

Choosing Hose Clamp Types: Meeting Different Challenges

Hose clamps might seem like simple, unassuming components, but their role in securing hoses and preventing leaks is crucial across numerous applications. Whether you’re working on an automotive system, managing plumbing in your home, or operating machinery in an industrial setting, the right hose clamp can mean the difference between a reliable connection and a costly failure.

Understanding Hose Clamps: Basics and Importance

What is a Hose Clamp?

A hose clamp is a mechanical device used to attach and seal a hose onto a fitting such as a barb or nipple. It is designed to ensure a tight seal, preventing fluids or gases from leaking at the connection point. Hose clamps come in various designs and sizes, allowing them to accommodate different hose types and diameters, making them versatile components in various industries.

How Hose Clamps Work

Hose clamps function by providing a uniform and consistent compression around the circumference of a hose. When a hose is slipped over a fitting, the clamp is placed around the hose and tightened to compress the hose material against the fitting. This compression creates a seal that prevents fluid or air from escaping. The design of hose clamps—whether it’s a worm gear, spring-loaded, or T-bolt style—allows for adjustable pressure to ensure that the hose remains securely attached even when subjected to pressure changes or vibrations.

Choosing the Correct Hose Clamp

Selecting the appropriate hose clamp is essential for the safety and efficiency of any system that involves hoses. The right clamp not only ensures a secure seal but also minimizes the risk of leaks, which can lead to significant damage, safety hazards, and system inefficiency.

Safety: In systems where high-pressure fluids are involved, such as in automotive and industrial applications, the wrong clamp type or an ill-fitting clamp can lead to catastrophic leaks, posing risks of equipment failure, environmental damage, and personal injury.

System Efficiency: An effective hose clamp helps maintain system integrity by preventing leaks that could reduce system pressure or cause fluid loss. In hydraulic and pneumatic systems, for example, maintaining proper pressure is critical for efficiency and functionality.

Longevity and Cost-Effectiveness: Using the correct hose clamp for the application also extends the lifespan of both the hose and the clamp, reducing the frequency of maintenance and replacements. This not only saves money but also minimizes downtime and increases productivity.

Types of Hose Clamps

Worm Gear Clamps

Description: Worm gear clamps consist of a durable metal band equipped with a threaded screw mechanism. When the screw is turned, it pulls the ends of the band together, creating a tight grip around the hose. This mechanism allows for fine adjustments, making it easy to achieve the desired clamping force.

Applications: Worm gear clamps are highly versatile and can be found in a variety of settings. They are commonly used in automotive applications, such as securing radiator hoses, as well as in household plumbing for water and drainage pipes. Additionally, they are used in industrial settings to secure flexible hoses in equipment where secure connections are essential for operation.

Advantages and Limitations:

Pros: One of the primary advantages of worm gear clamps is their ease of use. They can be quickly adjusted to fit hoses of different diameters, making them suitable for a range of applications. Their design also provides a reliable seal, minimizing the risk of leaks.

Cons: However, if overtightened, these clamps can damage soft hoses, leading to leaks or even complete hose failure. It’s crucial to monitor the tightening process to avoid excessive pressure that could compromise the hose material.

T-Bolt Clamps

Description: T-bolt clamps feature a robust band with a T-shaped bolt that facilitates a strong and uniform clamping force. The T-bolt design allows for high torque application, making these clamps particularly effective for securing hoses under demanding conditions.

Applications: These clamps are ideal for heavy-duty and high-pressure applications. Commonly found in automotive systems, they are used to secure hoses in engines and cooling systems. They are also prevalent in industrial environments, such as in the construction of piping systems, where robust connections are required to handle significant pressure and vibration.

Advantages and Limitations:

Pros: T-bolt clamps offer superior strength and reliability, making them suitable for challenging applications. Their ability to withstand high pressure without compromising the integrity of the hose is a significant advantage in demanding environments.

Cons: On the downside, T-bolt clamps can be more expensive and may require more complex installation procedures compared to standard worm gear clamps. Their design may also necessitate specific tools for tightening, which could be a consideration for some users.

Spring Clamps

Description: Spring clamps utilize a spring mechanism to maintain constant pressure on the hose. This design allows the clamp to automatically adjust to variations in hose size and pressure, ensuring a consistent seal.

Applications: Primarily used in automotive cooling systems, spring clamps excel in applications where thermal expansion and contraction occur. They provide a reliable connection in environments subject to temperature fluctuations, such as engine compartments.

Advantages and Limitations:

Pros: One of the significant advantages of spring clamps is their quick installation process. They can be easily snapped onto hoses, making them convenient for assembly lines and repair work. Their ability to adjust automatically to changes in hose size enhances their usability in dynamic conditions.

Cons: However, their clamping force is generally lower than that of other clamp types, which may not be sufficient for high-pressure applications. In such cases, there is a risk of leaks if the pressure exceeds the clamp’s holding capacity.

Ear Clamps

Description: Ear clamps, often referred to as Oetiker clamps, are designed for one-time use. They have a unique shape that, when crimped, creates a permanent seal around the hose. This design is intended to provide a secure, leak-proof connection.

Applications: Ear clamps are commonly found in applications such as fuel systems and air compressors, where a secure fit is critical. Their use is particularly advantageous in scenarios where leakage could pose significant risks.

Advantages and Limitations:

Pros: Ear clamps provide a reliable fit and a high level of security in high-pressure environments. Once installed, they are unlikely to loosen or fail, making them ideal for critical applications.

Cons: The major drawback is that they are designed for one-time use; once removed, they cannot be reused. This leads to additional costs for replacements during maintenance or repairs, which can be a consideration for long-term operational budgets.

Wire Clamps

Description: Wire clamps are characterized by their simple design, typically consisting of a length of wire twisted to create a loop that tightens around the hose. This minimalist design is easy to manufacture and install.

Applications: These clamps are best suited for lightweight and low-pressure applications, such as securing garden hoses, low-pressure airlines, or other non-critical connections.

Advantages and Limitations:

Pros: Wire clamps are cost-effective and extremely easy to install, making them a popular choice for DIY projects and applications where low-performance requirements exist. Their simplicity means they can be used in a variety of settings without special tools or equipment.

Cons: However, their limited pressure handling capacity makes them unsuitable for high-pressure applications. In demanding environments, they may fail under stress, leading to leaks and system inefficiencies.

Factors to Consider When Choosing a Hose Clamp

Material Compatibility

Choosing the right material for a hose clamp is crucial to ensure durability and performance, especially in challenging environments. Common materials include:

Stainless Steel: Ideal for corrosive environments, such as marine and industrial applications, due to its resistance to rust and oxidation. It is also suitable for high-temperature settings, providing long-term strength and reliability.

Galvanized Steel: More economical than stainless steel, this option is suitable for less demanding environments where corrosion resistance is still a concern but not as critical.

Plastic Clamps: Lightweight and resistant to certain chemicals, plastic clamps are suitable for low-pressure applications where minimal weight is a priority.

Brass or Aluminum: Used in specialty applications where these metals provide specific benefits such as lightweight and non-corrosive properties.

Importance: Selecting a material that matches the application environment ensures that the clamp maintains its integrity over time, avoiding failures caused by corrosion, temperature fluctuations, or chemical exposure.

Size and Fit

For a hose clamp to function effectively, it must be the correct size for the hose it’s securing. Improper sizing can lead to leaks, hose damage, or even complete system failure.

Measuring Guidelines:

Measure the outer diameter of the hose with the fitting attached.

Ensure that the clamp’s size range comfortably fits within the diameter of the hose. Clamps often specify a minimum and maximum diameter they can secure.

Ensuring Proper Fit:

The clamp should provide an even compression around the entire circumference of the hose. Avoid over-tightening, as it can cut into the hose material, especially with soft or flexible hoses.

Proper measurement and fit ensure that the clamp provides a leak-free seal without compromising the hose’s structural integrity.

Pressure Requirements

The type of clamp you choose must be matched to the pressure levels of the system:

High-Pressure Clamps: T-bolt and heavy-duty worm gear clamps are designed to handle high-pressure applications, such as in automotive systems or industrial machinery where fluid or gas pressure is substantial. These clamps provide a strong, consistent seal.

Low-Pressure Clamps: For applications where pressure levels are minimal, such as household plumbing or garden hoses, lighter and simpler clamps like wire or plastic clamps are sufficient.

Importance: Matching the clamp to the pressure requirements of the system ensures that the clamp can maintain a secure hold without failing under stress, preventing leaks and potential system damage.

Reusability vs Permanent Installation

When selecting a hose clamp, consider whether the connection needs to be temporary or permanent:

Reusable Clamps: Worm gear and T-bolt clamps are reusable, making them ideal for systems that require regular maintenance or adjustments. They can be easily removed and reinstalled without damage to the hose.

One-Time Use Clamps: Ear clamps (Oetiker clamps) and some spring clamps are designed for permanent installation. They provide a secure, leak-proof connection but must be replaced when removed.

Advantages: Reusable clamps offer flexibility and cost savings in systems where maintenance is frequent. One-time use clamps, however, provide a tamper-proof seal that is often more secure for critical or high-risk applications.

Environmental Conditions

Hose clamps may be exposed to various environmental factors that impact their performance and longevity:

Chemical Exposure: In environments where chemicals are present, such as in chemical processing plants or fuel systems, select clamps made of materials resistant to chemical corrosion (e.g., stainless steel or specialized alloys).

Temperature Extremes: For high-temperature applications, such as automotive engines or industrial heating systems, clamps must be able to withstand thermal expansion without losing their clamping force. Stainless steel is often preferred for its heat resistance.

Moisture and Humidity: In marine or outdoor settings, corrosion-resistant clamps are essential to prevent rust and degradation. Stainless steel or non-metallic options (e.g., plastic clamps) are suitable in these cases.

Common Challenges in Hose Clamp Selection and Installation

Leaks and Seal Failures

Causes:

Improper Sizing: One of the most common causes of leaks is using a hose clamp that is either too large or too small for the hose. If the clamp does not fit snugly around the hose, it may not provide sufficient pressure to create a proper seal, leading to fluid or air leaks.

Incompatible Materials: Selecting a clamp material that does not match the hose or system environment can result in leaks. For example, using a clamp made from a material that reacts with chemicals in the system can cause deterioration, compromising the seal.

Inadequate Pressure Resistance: Using a low-pressure clamp (e.g., wire or spring clamps) in a high-pressure system can result in leaks or even clamp failure, as these clamps may not have the necessary strength to maintain a tight seal under high pressure.

Solutions:

Accurate Measurement: Measure the outer diameter of the hose (with the fitting included) to select the correct clamp size. Ensuring the clamp fits within the specified diameter range is crucial to achieving a secure fit.

Material Compatibility: Choose a clamp material that matches the hose and the system’s environment. For high-temperature or corrosive environments, stainless steel clamps are often the best choice due to their resistance to rust and heat.

Pressure Consideration: Select a clamp type designed to handle the pressure levels in your system. For high-pressure applications, T-bolt clamps or heavy-duty worm gear clamps are recommended as they provide the necessary strength to maintain a secure seal.

Proper selection and careful installation are essential steps to prevent leaks and ensure long-term system efficiency.

Corrosion Issues

Material Selection for Corrosive Environments: In environments where hoses and clamps are exposed to moisture, chemicals, or corrosive substances, the risk of corrosion increases significantly. Corrosion weakens the clamp structure, leading to potential failures, leaks, and damage to the hose itself.

Recommendations:

Stainless Steel Clamps: For environments prone to rust or chemical exposure (e.g., marine settings or industrial chemical plants), stainless steel clamps are highly recommended. They offer superior resistance to corrosion, even in the presence of harsh chemicals or saltwater.

Non-Metallic Options: In certain situations where metallic corrosion is a concern, plastic or other non-metallic clamps can be used. These clamps are resistant to rust but are generally suitable only for low-pressure applications and environments where high temperatures are not a factor.

Coated Clamps: Galvanized or coated metal clamps provide an economical option for environments with moderate corrosion risks. However, they may not perform as well as stainless steel in extreme conditions.

Choosing corrosion-resistant clamps based on the specific environmental exposure ensures durability and reliability, reducing the need for frequent replacements or repairs.

Damage to Hoses

Potential for Damage: Certain clamp types, particularly worm gear clamps, can damage hoses if not used correctly. For example, over-tightening a worm gear clamp on a soft hose can cut into or deform the hose material, leading to leaks or weakening the hose structure.

Solutions:

Choose the Right Clamp Type: When working with soft or flexible hoses, consider using spring clamps or ear clamps, as they apply even pressure without the risk of over-tightening. These types are particularly suitable for automotive or household applications where the hoses may be more delicate.

Proper Installation Techniques: To minimize the risk of damage:

Avoid overtightening: Tighten the clamp only until it provides a secure fit without pinching or cutting into the hose. Use a torque wrench if necessary to apply the correct amount of force.

Use clamps with smooth, rounded edges to reduce the risk of cutting into the hose material.

Protective Sleeves or Liners: In applications where worm gear clamps are necessary but soft hoses are used, protective sleeves or liners can be placed between the clamp and hose to distribute the pressure more evenly and protect the hose material.

By carefully selecting and adjusting clamps to match the hose material and application, damage can be minimized, ensuring the longevity and effectiveness of the hose system.

Practical Tips for Installation and Maintenance

Installation Best Practices

Proper installation is key to ensuring that hose clamps function effectively and securely. Below is a step-by-step guide for installing common clamp types like worm gear and spring clamps:

Select the Right Clamp:

Ensure that the clamp type and size match the hose diameter and application requirements.

Verify that the clamp material is suitable for the environment (e.g., stainless steel for corrosive environments).

Prepare the Hose and Fitting:

Clean the hose and fitting surfaces to remove any dirt, debris, or residues that may interfere with the seal.

Slide the hose over the fitting, making sure it is fully seated.

Position the Clamp:

Place the clamp approximately 1/4 inch (6 mm) from the end of the hose, covering the area where the hose meets the fitting but not too close to the edge to avoid slippage.

Ensure the clamp is aligned and positioned evenly around the circumference of the hose.

Tighten the Clamp (Worm Gear Clamps):

Use a screwdriver or a ratchet to turn the screw mechanism and tighten the clamp. Tighten until the clamp feels secure but avoid over-tightening, especially with soft hoses, as this can cause damage.

For spring clamps, use pliers to compress and open the clamp, then slide it into position and release to secure the hose.

Check the Seal:

Visually inspect the clamp to ensure even tightening around the hose. There should be no visible gaps between the clamp and the hose surface.

After installation, pressurize the system (if possible) and check for any signs of leaks.

By following these steps, you can ensure a secure and effective installation that minimizes the risk of leaks and hose damage.

Maintenance and Inspection

Regular maintenance and inspection are essential to keep hose clamps and hose systems functioning properly over time:

Regular Inspection Schedule:

Inspect hose clamps periodically based on the application (e.g., monthly for high-pressure systems, bi-annually for low-pressure systems). Look for signs of rust, corrosion, or damage.

Check for any signs of leaks around the clamp area, which may indicate that the clamp is loosening or failing.

Adjust and Retighten as Needed:

For worm gear clamps, retighten as necessary to maintain a proper seal. This is especially important in systems that experience vibration or thermal cycling, as these conditions can cause clamps to loosen over time.

For spring and ear clamps, ensure they remain securely in place; if they appear loose or have shifted, replace them as they are often designed for one-time use.

Hose Condition Monitoring:

Examine the hose material for signs of wear, such as cracks, bulges, or brittleness, particularly around the clamp area.

Replace hoses that show significant wear or degradation to prevent potential failure.

Consistent inspection and maintenance can prolong the lifespan of both hoses and clamps, ensuring system efficiency and safety.

Troubleshooting Common Issues

Loose Clamps:

Problem: Clamps that become loose can lead to leaks and system inefficiency.

Solution: Retighten the clamp using the appropriate tool (e.g., screwdriver or torque wrench for worm gear clamps). For clamps that frequently loosen, consider switching to a T-bolt or spring clamp, which may provide a more secure fit under vibration or temperature changes.

Incorrect Sizing:

Problem: A clamp that is too large or too small may not provide a secure seal, leading to leaks.

Solution: Verify the outer diameter of the hose and the fitting, and select a clamp within the correct size range. If an undersized clamp was initially used, replace it with a properly sized one.

Corrosion or Rust:

Problem: Corroded clamps may weaken over time, leading to failure.

Solution: Replace rusted clamps with stainless steel versions to prevent further corrosion. For systems prone to chemical exposure, ensure the clamp material is resistant to the specific chemicals present.

Hose Damage Near Clamps:

Problem: Over-tightening, particularly with worm gear clamps, can cut into or deform hoses, causing leaks.

Solution: Loosen the clamp and inspect the hose for damage. If the hose is damaged, replace it and reinstall the clamp, ensuring that it is tightened only until a secure seal is achieved without excessive force. Use protective sleeves if necessary for softer hoses.

Persistent Leaks Despite Proper Installation:

Problem: Leaks may persist even when clamps are properly installed and tightened.

Solution: Check if the clamp material is compatible with the hose and the fluid being transported. If the material or type is incompatible, replace it with a more suitable option (e.g., upgrading to a T-bolt clamp for high-pressure systems or choosing a corrosion-resistant clamp for chemical exposure).

Conclusion

Armed with the knowledge of different hose clamp types and practical tips for their selection and installation, it’s time to apply this information to your systems. By choosing the appropriate clamp for each application, you can significantly enhance the safety and efficiency of your operations. For further guidance and to explore high-quality clamp options, check out our recommended products and resources.

FAQ

What is a hose clamp?

A hose clamp is a device used to secure hoses onto fittings, preventing leaks and maintaining pressure within the system. They come in various types and sizes to suit different applications.

How do I choose the right size hose clamp?

Measure the outer diameter of the hose (including any fittings) and select a clamp that fits within the specified diameter range. Ensure the clamp is not too tight or too loose for optimal performance.

Can I reuse hose clamps?

It depends on the type. Worm gear and T-bolt clamps can generally be reused if they remain undamaged. However, ear clamps are designed for one-time use and should be replaced after removal.

What materials are hose clamps made from?

Hose clamps can be made from various materials, including stainless steel, plastic, and galvanized metal. The material choice should be based on the application environment, such as exposure to chemicals or high temperatures.

How often should I inspect my hose clamps?

It’s advisable to inspect hose clamps regularly, ideally every few months for high-pressure systems and biannually for low-pressure applications, checking for signs of wear, corrosion, or loosening.

What should I do if I notice a leak?

First, tighten the clamp to see if it resolves the issue. If the leak persists, check for proper sizing, material compatibility, and hose condition. If necessary, replace the clamp or the hose to eliminate the leak.

Oct, 2024

Choose from Brass, Carbon Steel and Stainless Steel Fitting banner

Brass, Carbon and Stainless Steel Fittings: How to Choose

Hydraulic fittings are integral components in hydraulic systems, serving as connectors that keep systems functioning efficiently under various conditions. The right selection of these fittings is critical for ensuring system reliability, safety, and performance. A poor choice can lead to leaks, system failures, and costly maintenance. The durability and performance of a hydraulic system depend heavily on the material used for its fittings, as different materials offer unique properties that can impact the overall operation and lifespan of the system.

Understanding Hydraulic Fittings

A. Definition and Function of Hydraulic Fittings

Hydraulic fittings are components used in hydraulic systems to connect hoses, pipes, and tubes. They play a vital role in ensuring the smooth and efficient flow of hydraulic fluid under pressure. These fittings are designed to create secure and leak-free connections, allowing for flexibility in system design while also supporting the transfer of fluid power. Their primary function is to maintain a tight seal under various pressure and temperature conditions, ensuring the hydraulic system operates safely and efficiently. Without properly functioning fittings, hydraulic systems could experience leaks, pressure drops, or failures, leading to equipment damage and costly downtime.

B. Types of Hydraulic Fittings

Hydraulic fittings come in various types, each designed to fulfill specific functions within a hydraulic system. The main types include connectors, adapters, and couplings:

Connectors:

Connectors are used to join two pieces of hose, pipe, or tubing, allowing for the extension or redirection of hydraulic lines. They often have threads or a push-to-connect design, which makes installation quick and easy. Connectors ensure a stable and secure bond, preventing fluid leaks and pressure loss. Examples include straight, elbow, and tee connectors, each serving different purposes based on the routing needs of the system.

Adapters:

Adapters are used to change the type of connection or transition between different fitting styles or sizes. They are essential when integrating components with different thread types (e.g., converting metric threads to standard threads). Adapters also help connect dissimilar materials, such as adapting between hoses and rigid pipes, providing flexibility in the system design. They are crucial in custom hydraulic setups where compatibility issues may arise due to varying fitting specifications.

Couplings:

Couplings are designed to join or disconnect hydraulic lines quickly and easily, often without the need for tools. Quick-release couplings, for instance, allow for rapid connection and disconnection of hoses, which is valuable in systems that require frequent reconfiguration or maintenance. This type of fitting is especially useful in mobile hydraulic applications and machinery where quick setup and breakdown are critical. Couplings provide secure and leak-proof connections while maintaining the integrity of the hydraulic system during repeated use.

hydraulic adapters manufacturer Topa in China

C. Importance of Material Choice in Hydraulic Systems

The choice of material for hydraulic fittings is a critical factor that directly impacts the performance, durability, and safety of a hydraulic system. Different materials offer varying levels of strength, corrosion resistance, and compatibility with hydraulic fluids. The material must be selected based on the operating environment, pressure requirements, and fluid type to prevent degradation and ensure longevity.

Corrosion Resistance: In environments where exposure to moisture, chemicals, or saltwater is common (e.g., marine or chemical processing industries), corrosion-resistant materials like stainless steel are preferred. Using the wrong material in these conditions could lead to rapid wear, leaks, and even system failure.

Strength and Durability: High-pressure systems require materials that can withstand extreme stress without compromising structural integrity. Carbon steel is often used in high-pressure scenarios due to its strength, but stainless steel offers similar strength with the added benefit of corrosion resistance.

Fluid Compatibility: Different hydraulic fluids have varying chemical properties. It’s essential to choose a material that will not react adversely with the fluid used, as incompatible materials can cause contamination, corrosion, or seal failure. Brass, for instance, works well with certain non-corrosive fluids, while stainless steel is more versatile and compatible with a broader range of fluids, including those used in harsh chemical environments.

Stainless Steel Hydraulic Fittings

A. Overview of Stainless Steel as a Material

Stainless steel is an alloy primarily composed of iron, carbon, and a minimum of 10.5% chromium, which provides its characteristic resistance to corrosion. The introduction of chromium forms a protective oxide layer on the surface of the steel, preventing rust and degradation. This unique property makes stainless steel an ideal choice for hydraulic fittings, especially in environments where exposure to moisture, chemicals, and varying temperatures is prevalent.

Stainless steel is also known for its aesthetic appeal, with a shiny, polished finish that is often preferred in visible applications. Its versatility allows for a wide range of forms, from tubing to fittings and valves, making it a favored material in various industrial sectors. The ability to fabricate stainless steel into complex shapes while maintaining its structural integrity adds to its popularity in hydraulic systems.

B. Key Properties of Stainless Steel

Corrosion Resistance: Stainless steel’s most significant advantage is its superior corrosion resistance. The chromium content creates a self-repairing layer of chromium oxide, which protects the underlying metal from environmental factors. This makes stainless steel fittings suitable for use in aggressive environments, including those that involve exposure to chemicals, saltwater, or high humidity. Unlike carbon steel, which can rust and weaken over time, stainless steel maintains its strength and functionality, resulting in lower maintenance costs and increased longevity.

Strength and Durability: Stainless steel is known for its exceptional strength-to-weight ratio. It can withstand high pressures and is less prone to failure under stress compared to many other materials. This strength makes stainless steel fittings ideal for high-pressure hydraulic applications, where safety and reliability are paramount. Additionally, stainless steel exhibits excellent toughness, allowing it to absorb impacts and vibrations without cracking or breaking, which is essential in dynamic operating conditions.

Temperature Resistance: Stainless steel fittings can endure a wide range of temperatures, making them suitable for both high- and low-temperature applications. Certain grades of stainless steel maintain their mechanical properties at elevated temperatures, allowing for reliable performance in environments where thermal stress is a concern. This temperature resistance also extends to cryogenic applications, where maintaining the integrity of hydraulic systems at low temperatures is crucial.

stainless steel hose fittings factory and supplier china

C. Types of Stainless Steel Fittings

304 Stainless Steel: 304 stainless steel is the most commonly used grade for hydraulic fittings due to its balance of corrosion resistance, strength, and cost-effectiveness. It contains approximately 18% chromium and 8% nickel, providing good resistance to oxidation and corrosion in mildly corrosive environments. 304 fittings are ideal for applications that do not involve extreme exposure to chlorides or saline environments.

316 Stainless Steel: 316 stainless steel offers enhanced corrosion resistance compared to 304, primarily due to the addition of molybdenum (around 2-3%). This makes it particularly suited for applications involving salt water, acids, and other aggressive chemicals. 316 fittings are commonly used in marine environments and chemical processing industries, where exposure to harsh conditions is expected. They maintain their strength and integrity, making them a reliable choice for high-performance hydraulic systems.

D. Applications in Various Industries

Chemical Processing: In the chemical processing industry, stainless steel hydraulic fittings are essential due to their resistance to corrosive chemicals and high temperatures. These fittings ensure the safe and efficient transport of fluids in processes such as mixing, heating, and reaction. Their durability reduces the risk of leaks and system failures, which is critical in environments where chemical spills can pose significant risks to health and safety.

Food and Beverage: The food and beverage industry relies on stainless steel fittings to maintain hygiene and prevent contamination. Stainless steel is non-reactive, making it suitable for transporting food and beverages without altering their quality. These fittings are easy to clean and sanitize, ensuring compliance with health and safety regulations. Their corrosion resistance also ensures longevity, reducing the frequency of replacements and maintenance.

Marine Environments: Stainless steel fittings are extensively used in marine applications due to their ability to withstand exposure to saltwater and harsh environmental conditions. The corrosion resistance of 316 stainless steel makes it an ideal choice for shipbuilding, offshore drilling rigs, and underwater equipment. Using stainless steel fittings in these applications helps prevent failures and prolongs the lifespan of hydraulic systems, ensuring reliable operation in challenging maritime conditions.

Comparison with Brass and Carbon Steel Fittings

A. Brass Fittings

1. Properties and Advantages:

Brass is a versatile and widely used material for hydraulic fittings, known for its excellent corrosion resistance, particularly in environments with water exposure. It is an alloy primarily made of copper and zinc, which gives it durability and malleability. Brass fittings are easier to machine and install due to their relatively soft nature, which also makes them suitable for applications where frequent fitting adjustments are needed. Additionally, brass is resistant to rust and offers good thermal and electrical conductivity, making it valuable in hydraulic systems where these properties are beneficial.

2. Limitations:

While brass fittings offer several advantages, they also have limitations. Brass is generally not as strong as stainless steel or carbon steel, which limits its use in high-pressure applications. Its lower tensile strength means it can deform or fail under extreme stress or vibration, making it unsuitable for high-impact environments. Furthermore, brass fittings are not recommended for applications involving corrosive fluids or exposure to saltwater, as these conditions can cause dezincification—a process where zinc is leached out, leading to weakened structural integrity and increased failure risk. Brass fittings are, therefore, best suited for low-pressure, non-corrosive environments.

B. Carbon Steel Fittings

1. Properties and Advantages:

Carbon steel fittings are known for their high strength and durability, making them suitable for demanding applications involving high pressures and temperatures. Carbon steel is composed primarily of iron and carbon, which gives it the toughness needed to handle mechanical stress without deformation. These fittings are often used in industrial and heavy-duty settings where reliability under pressure is critical. Additionally, carbon steel fittings are more affordable compared to stainless steel, providing a cost-effective solution for robust hydraulic systems.

2. Limitations:

Despite its strength, carbon steel has some notable disadvantages. One of the primary limitations is its vulnerability to corrosion, especially in environments with moisture, chemicals, or saltwater exposure. Unlike stainless steel, carbon steel lacks a protective chromium oxide layer, making it prone to rust when exposed to oxygen and water. This limitation often necessitates the use of protective coatings or surface treatments, which add to the maintenance requirements and long-term costs. Carbon steel fittings are also less suitable for environments with extreme temperature fluctuations, as they can become brittle in cold conditions or lose strength at high temperatures.

C. Cost Considerations

Cost is a significant factor when selecting hydraulic fittings, as material choice directly impacts both initial and long-term expenses. Brass fittings are generally affordable and cost-effective for low-pressure and less demanding applications. Their ease of machining and installation further reduces labor costs. However, their lower durability and limitations in high-pressure environments mean they may not be suitable for more complex systems, potentially increasing long-term costs through frequent replacements.

Carbon steel fittings provide a balance between cost and strength, often being less expensive than stainless steel but more robust than brass. This makes them a popular choice in heavy-duty applications where high pressure is involved. However, the added expenses associated with anti-corrosion treatments and ongoing maintenance should be considered when evaluating their overall cost-effectiveness, particularly in corrosive environments.

Stainless steel fittings, while generally more expensive upfront, offer long-term value due to their durability and corrosion resistance. The reduced need for maintenance and the longer lifespan of stainless steel fittings can offset the higher initial investment, especially in applications where environmental exposure and fluid compatibility are critical. In industries where reliability and safety are paramount, stainless steel becomes a cost-effective option despite its higher price tag.

D. Performance in Different Environments

1. Corrosive Environments:

Brass: Brass performs well in moderately corrosive environments, such as those involving freshwater or mild chemicals. However, it is not suitable for highly corrosive environments, such as those with exposure to seawater or acids, as it can suffer from dezincification and corrosion.

Carbon Steel: Carbon steel is not ideal for corrosive environments without protective coatings. If exposed to moisture, chemicals, or saltwater without adequate protection, it will corrode quickly, leading to system failure. In such cases, using carbon steel might increase maintenance requirements and costs.

Stainless Steel: Stainless steel, particularly grades like 316, is highly resistant to corrosion, making it the most suitable option for environments where exposure to harsh chemicals, saltwater, or extreme humidity is expected. Its ability to maintain structural integrity in these conditions significantly reduces the risk of leaks or failures.

2. High-Pressure Systems:

Brass: Brass fittings are not recommended for high-pressure systems due to their lower tensile strength and susceptibility to deformation under extreme pressure. They are better suited for low-pressure applications where the environment is stable.

Carbon Steel: Carbon steel excels in high-pressure applications due to its strength and toughness. It can handle the stress and mechanical forces involved in heavy-duty hydraulic systems, making it a reliable choice in industrial settings where maintaining high pressure is essential.

Stainless Steel: Stainless steel offers similar performance to carbon steel in high-pressure systems but with the added benefit of corrosion resistance. This makes stainless steel fittings the ideal choice for high-pressure systems that also operate in corrosive or harsh environments. They provide both the strength required and the longevity needed to ensure reliable operation.

3. Temperature Variability:

Brass: Brass fittings can handle moderate temperature ranges but are not suitable for extreme fluctuations or very high temperatures. In high-temperature conditions, brass may lose its structural integrity, compromising the safety and reliability of the system.

Carbon Steel: Carbon steel fittings perform well in high-temperature environments but may require specific treatments to enhance their thermal resistance. They can become brittle at low temperatures, limiting their use in systems where temperature variability is significant.

Stainless Steel: Stainless steel’s performance remains stable across a wide range of temperatures, from cryogenic conditions to high heat. Its resistance to both low and high temperatures makes it an excellent choice for hydraulic systems that operate under varying thermal conditions, such as those in the aerospace, marine, or chemical processing industries.

Choosing the Right Fitting for Your Application

Fluid Type

The type of fluid used in a hydraulic system greatly influences the choice of fitting material. Hydraulic systems utilize various fluids such as water-based fluids, synthetic oils, or corrosive chemicals, each with different chemical properties. It is essential to choose a fitting material that is chemically compatible with the fluid to prevent reactions that could lead to corrosion, contamination, or deterioration of the fitting itself.

Water-based Fluids: Stainless steel is often the best choice when using water-based hydraulic fluids due to its excellent resistance to oxidation and corrosion. Brass can also work well in such environments, provided the pressure remains low and the environment is not highly corrosive.

Synthetic Oils: Most metals, including carbon steel, are generally compatible with synthetic oils. However, if there is a risk of exposure to moisture or the presence of other corrosive elements, stainless steel fittings are recommended to provide additional protection and ensure long-term reliability.

Corrosive Chemicals: In systems that transport aggressive chemicals or fluids with corrosive properties (such as acids), 316 stainless steel is often the preferred choice due to its superior resistance to chemical attack. Carbon steel or brass fittings may degrade quickly under such conditions, leading to system failures.

Pressure and Temperature Requirements

The pressure and temperature conditions within a hydraulic system are crucial in determining the appropriate fitting material and type. Different materials perform optimally at varying pressure levels and temperatures, and selecting a fitting that matches these parameters is essential for the safe and efficient operation of the system.

Pressure Requirements:

For high-pressure systems, such as those found in industrial or heavy-duty applications, carbon steel and stainless steel are the best options due to their high tensile strength and durability. Brass fittings are not recommended for high-pressure applications as they may deform or fail under extreme stress.

In low-pressure systems, where the operational environment is less demanding, brass fittings can be suitable and cost-effective, especially if the fluid type and environmental conditions are non-corrosive.

Temperature Requirements:

For systems operating at high temperatures, such as those used in industrial processing or chemical plants, stainless steel fittings are preferred due to their ability to retain structural integrity and resist thermal expansion. Stainless steel’s performance remains stable across a wide temperature range, ensuring system reliability and safety.

In low-temperature or cryogenic applications, stainless steel also excels because it remains ductile and resists brittleness, unlike carbon steel, which can become fragile in extremely cold conditions. This property makes stainless steel fittings an optimal choice for environments with fluctuating or extreme temperatures.

Environmental Conditions

The surrounding environment where the hydraulic system operates plays a significant role in material selection. Environmental factors such as humidity, exposure to chemicals, or saline conditions can affect the longevity and performance of hydraulic fittings.

Corrosive Environments: For applications in environments with high exposure to corrosive elements, such as marine environments or chemical processing facilities, stainless steel fittings, especially 316 grade, provide superior resistance to rust and chemical attack. Carbon steel, while strong, requires additional protective coatings or treatments to withstand such environments, increasing maintenance and costs.

Humid or Moist Conditions: In humid environments or systems exposed to moisture, choosing stainless steel over carbon steel or brass helps ensure the fittings do not corrode over time. Brass can also be used, but it is generally recommended for less critical, low-pressure systems.

Harsh Industrial Settings: In rugged industrial settings where fittings may face mechanical stress, impact, or vibration, carbon steel and stainless steel are appropriate choices due to their robustness. Carbon steel fittings are suitable when corrosion is not a major concern, while stainless steel offers both strength and corrosion resistance, making it ideal for challenging conditions.

Conclusion

As you navigate the selection process for hydraulic fittings, take the time to evaluate your specific operational needs comprehensively. Consider factors such as the type of fluid, operating pressures, temperature ranges, and environmental conditions to ensure you make an informed decision. By making informed choices, you can ensure the longevity and reliability of your hydraulic systems, contributing to greater efficiency and safety in your operations.

FAQ

What is the most corrosion-resistant material for hydraulic fittings?

Stainless steel, particularly 316 grade, offers the highest corrosion resistance, making it ideal for applications involving chemicals, saltwater, or high humidity.

When should I use brass hydraulic fittings?

Brass fittings are best used in low-pressure applications and non-corrosive environments, such as systems involving freshwater or non-reactive fluids.

What is the main advantage of carbon steel fittings?

Carbon steel fittings are highly durable and strong, making them suitable for high-pressure applications and industrial settings where mechanical strength is critical.

Are stainless steel fittings suitable for high-temperature environments?

Yes, stainless steel fittings can withstand a wide range of temperatures, including high temperatures, without losing their structural integrity, making them suitable for both high and low-temperature applications.

How do I choose the right fitting material for my hydraulic system?

Consider factors such as the type of fluid used, operating pressure, temperature requirements, and environmental conditions to select the most compatible and durable material.

Why are stainless steel fittings more expensive than other options?

Stainless steel fittings are more expensive due to their superior properties, including corrosion resistance, durability, and versatility in extreme conditions.

Oct, 2024

77 Series Crimp Hydraulic Fittings banner

77 Series Crimp Hydraulic Fittings: What You Need to Know

Crimp fittings are essential components in hydraulic systems, playing a critical role in ensuring secure, leak-proof connections between hoses and other system elements. These fittings are designed to provide a reliable seal, even under extreme pressure and challenging environmental conditions, making them vital for maintaining the performance and safety of hydraulic systems. By compressing the fitting onto the hose using specialized crimping tools, crimp fittings create a durable, robust connection that minimizes the risk of fluid leakage and system failure.

Understanding Crimp Fittings

Definition and Functionality

Crimp hydraulic fittings are specialized components used in hydraulic systems to connect hoses, tubes, and other system parts securely. These fittings are designed to create a tight, leak-proof seal by compressing the fitting onto the hose with a crimping tool, forming a secure bond. This process, known as crimping, involves placing the hose into a fitting sleeve and then using a crimping machine to press the sleeve tightly around the hose. The result is a durable connection that can withstand high pressure and resist movement or vibration. Crimp fittings are crucial for maintaining the integrity of hydraulic systems, ensuring that the flow of hydraulic fluid remains uninterrupted, and preventing leaks that could lead to system failure.

In hydraulic systems, secure and leak-free connections are essential for efficiency and safety. Hydraulic fluid, which is often under extremely high pressure, powers the movement and control of machinery. Any leaks or poorly sealed connections can lead to loss of pressure, reduced performance, or even complete system breakdowns. Crimp fittings, when properly installed, provide a reliable seal that can handle the high-pressure demands typical of hydraulic applications, making them a preferred choice for many industries, including construction, manufacturing, agriculture, and automotive sectors.

crimp style Hydraulic hose fitting Manufacturer Topa

Types of Crimp Fittings

Crimp fittings come in a variety of configurations, each suited for different hydraulic system needs. The most common types include:

Elbow Fittings: These fittings are designed to change the direction of the hydraulic hose, typically by 45 or 90 degrees. Elbow crimp fittings are ideal for tight spaces or routing hoses around obstacles.

Straight Fittings: The most basic type, straight fittings connect two hoses in a straight line. They are used when no change in direction is needed and are suitable for applications where space allows for a straightforward connection.

Tee Fittings: These fittings split or combine flow within the hydraulic system, connecting three hoses. They are useful when branching is required, such as when distributing fluid to different parts of the system.

Flange Fittings: Common in high-pressure systems, flange fittings provide strong, leak-resistant connections and are typically used in conjunction with heavy-duty hoses.

Swivel Fittings: These allow hoses to rotate and move, reducing stress on the connection points. They are ideal for applications where movement and flexibility are necessary.

The variety of crimp fittings available makes it possible to customize hydraulic systems to fit specific requirements, ensuring optimal performance and functionality.

Why Crimp Fittings Are Preferred

Crimp fittings are widely preferred over other types of fittings, such as threaded or compression fittings, for several reasons:

Durability: Crimp fittings provide a permanent connection that is designed to handle the high pressures and harsh conditions found in hydraulic systems. Unlike threaded connections that may loosen over time, crimp fittings maintain their integrity even under significant stress and vibration.

Ease of Installation: The crimping process is straightforward and efficient. With the right crimping machine and tools, fittings can be installed quickly and securely, reducing downtime and labor costs. This ease of installation makes crimp fittings ideal for fieldwork, where time and efficiency are critical.

Leak Prevention: One of the biggest advantages of crimp fittings is their ability to create a leak-free seal. The crimping process compresses the fitting sleeve tightly around the hose, ensuring that no fluid can escape, which is particularly important in high-pressure applications where any leakage could result in system failure or safety hazards.

Versatility: With a wide range of configurations and materials, crimp fittings offer flexibility for various hydraulic applications. Whether the system operates in high-pressure, high-temperature, or corrosive environments, there is likely a crimp fitting designed to handle those conditions.

Overview of the 77 Series Crimp Hydraulic Fittings

The 77 series crimp fittings are a well-regarded option in the hydraulic industry, specifically designed for high-pressure applications. These fittings offer a range of features and configurations that make them versatile and efficient, suitable for diverse industrial needs.

Features of the 77 Series

The 77 series crimp fittings are engineered to meet the rigorous demands of high-pressure hydraulic systems. Here are some of the key features that make these fittings stand out:

High-Pressure Compatibility: The 77 Series is built to withstand extreme pressure levels, ensuring that the connections remain secure and leak-free even under the most demanding operating conditions. This makes them ideal for heavy-duty applications such as construction equipment, agricultural machinery, and industrial hydraulic systems where pressure can reach very high levels.

Versatility with Hose Types: One of the strengths of the 77 Series is its compatibility with various hydraulic hoses. These fittings can be used with braided, spiral, and thermoplastic hoses, among others, making them suitable for a wide range of hydraulic systems. This flexibility allows users to choose the best hose type for their specific application without worrying about fitting incompatibility.

Robust Sealing Technology: The fittings are designed to provide a tight, leak-proof seal. This is particularly crucial in hydraulic systems where maintaining fluid integrity is essential for performance and safety. The crimping process, when properly executed, ensures a secure connection that prevents fluid leakage and maintains system pressure.

Materials Used in the 77 Series

The 77 series crimp fittings are available in a variety of materials, each tailored to meet specific application requirements. The most common materials used include:

Carbon Steel: Carbon steel is a popular material for these fittings due to its strength and durability. It offers good resistance against wear and tear, making it suitable for high-pressure environments where fittings need to withstand significant mechanical stress. Carbon steel is a cost-effective option that delivers reliable performance in most standard hydraulic applications.

Stainless Steel: For applications where corrosion resistance is critical, the 77 Series is also available in stainless steel. This material is ideal for use in harsh environments where fittings are exposed to moisture, chemicals, or corrosive fluids. Stainless steel fittings provide enhanced longevity and reliability, making them a preferred choice in industries like marine, chemical processing, and offshore drilling.

Plated Finishes: To further enhance the durability and corrosion resistance of carbon steel fittings, they are often available with plated finishes such as zinc or chromium. These coatings provide an additional layer of protection, extending the life of the fittings in challenging conditions.

The availability of these material options ensures that the 77 series crimp fittings can meet the specific needs of different industries and applications, providing users with flexibility in their selection.

Common Configurations

The 77 series crimp fittings come in various configurations to accommodate different hose routing and connection needs. Some of the most popular configurations include:

Straight Fittings: These are the simplest type of fittings and are used when a direct connection between two hoses or components is required. Straight fittings are suitable for applications where space is not an issue and a linear flow path is preferred.

90-Degree Elbow Fittings: These fittings are designed to change the direction of the hose by 90 degrees, making them ideal for situations where space is limited, and hoses need to be routed around obstacles. The 90-degree elbow configuration helps in efficient hose management, preventing kinks and bends that could compromise system performance.

45-Degree Elbow Fittings: Similar to the 90-degree version, the 45-degree elbow fittings offer a directional change but at a lesser angle. This configuration is useful when the hose needs to navigate around corners or obstacles without creating sharp bends, which can reduce stress on the hose and fitting.

Tee Fittings: Tee configurations are used when it is necessary to split the flow of hydraulic fluid into two directions or combine fluid from two sources. They are commonly employed in complex hydraulic systems where multiple components need to be interconnected.

Application Flexibility

Compatibility with Various Hydraulic Fluids: The 77 Series fittings are compatible with multiple types of hydraulic fluids, including petroleum-based oils, synthetic oils, and water-glycol solutions. This broad compatibility allows users to deploy these fittings across different hydraulic systems, regardless of the type of fluid being used. It also makes them suitable for both standard and specialized applications, such as those using biodegradable or fire-resistant fluids.

Suited for Extreme Environments: The 77 Series fittings are designed to function effectively in extreme temperatures and challenging environmental conditions. Stainless steel options are particularly well-suited for corrosive environments, while the carbon steel versions with plated finishes can handle high-temperature and high-pressure scenarios. This makes them a reliable choice for sectors like agriculture, construction, and mining, where hydraulic systems often operate under harsh conditions.

Adaptable Across Industries: The range of materials, configurations, and compatibility features makes the 77 Series fittings versatile enough for use across numerous industries. From heavy machinery and construction equipment to industrial manufacturing systems and marine applications, these fittings provide the flexibility needed for efficient hydraulic system design and operation.

Installation Guide for 77 Series Crimp Fittings

Proper installation of 77 series crimp fittings is crucial for maintaining the integrity and performance of a hydraulic system. A secure and leak-free connection is necessary to ensure that hydraulic pressure is maintained and that the system operates efficiently.

Step-by-step Installation Process

Gather the Necessary Tools and Equipment

Crimping Machine: A hydraulic crimping machine specifically designed for crimp fittings is essential for ensuring a secure and precise connection.

Die Set: Ensure you have the correct die set for the 77 Series fittings and the hose size you are using. The die set must match the fitting specifications to avoid improper crimping.

Cutting Tool: A hose cutter is necessary to create a clean, straight cut on the hose. Avoid using a utility knife or other non-specialized tools, as they may not provide the clean edge required for a secure fit.

Lubricant: Optional but recommended for easing the insertion of the hose into the fitting, ensuring a smooth installation process.

Prepare the Hose

Measure and cut the hose to the desired length using a hydraulic hose cutter. Ensure the cut is clean and straight to avoid uneven connections that could compromise the seal.

Inspect the hose for any damage, debris, or frayed edges that could affect the installation. Remove any contaminants that might interfere with the crimping process.

Select the Correct Fitting

Choose the appropriate 77 Series Crimp Fitting based on the hose type, size, and application. Verify the fitting’s material (e.g., carbon steel, stainless steel) matches the requirements of the hydraulic fluid and environment it will operate in.

Slide the fitting onto the hose, ensuring that the hose is fully inserted into the fitting until it reaches the fitting’s stop point. This step is critical for ensuring a tight seal during crimping.

Position the Hose and Fitting in the Crimping Machine

Set up the crimping machine with the correct die set for the fitting size. Double-check that the die set is properly aligned and secured in the machine.

Position the fitting and hose in the crimping machine, ensuring the fitting is centered within the die. This alignment is crucial to avoid a misaligned crimp, which could cause leaks or fitting failure.

Engage the crimping machine and apply pressure until the die closes fully around the fitting. The crimping process should be done slowly and steadily to ensure uniform pressure is applied.

Inspect the Crimped Fitting

Once crimping is complete, inspect the fitting for any signs of deformation or misalignment. The crimp should be uniform around the entire fitting, and there should be no visible gaps or uneven sections.

Measure the crimp diameter using a caliper or crimp gauge to verify that it falls within the recommended tolerance as specified in the fitting’s manual. This step ensures the crimp is secure and that the fitting will perform as expected under pressure.

Tips for Avoiding Common Installation Mistakes

Ensuring a Tight Seal

Always verify that the hose is fully inserted into the fitting before crimping. A partially inserted hose can result in a poor seal and potential leaks.

Use a lubricant if necessary to ease the insertion of the hose into the fitting, ensuring it reaches the fitting’s stop point. However, avoid excessive use of lubricant, as it may affect the connection quality.

Avoiding Misalignment

Proper alignment of the fitting within the crimping machine is critical. Misalignment can cause uneven crimping, leading to leaks and weakening the fitting’s integrity. Always double-check the positioning before engaging the crimping machine.

Use a die set that matches the specific fitting size. An incorrect die set can result in an improperly crimped fitting that does not seal correctly.

Checking Hose and Fitting Compatibility

Before starting the installation process, ensure that the hose type is compatible with the 77 Series fitting and that the sizes match perfectly. Using incompatible hoses or mismatched sizes can lead to leaks and failure under pressure.

Refer to the fitting manufacturer’s specifications and compatibility chart to confirm the right match between the hose and the fitting.

Safety Considerations

Personal Protective Equipment (PPE)

Always wear appropriate PPE when working with crimp fittings and hydraulic hoses. This includes safety glasses, gloves, and steel-toed boots to protect against potential injuries from pressurized systems or sharp tools.

Ensure that loose clothing or jewelry is removed to prevent them from getting caught in the machinery.

Crimping Machine Safety

Only use a hydraulic crimping machine that is in good working condition and properly maintained. Inspect the machine for any defects or damage before each use.

Follow the manufacturer’s operating guidelines for the crimping machine. Never bypass safety features, and ensure all guards are in place before crimping.

Hydraulic System Safety

Before installation, depressurize the hydraulic system and shut off any power sources to avoid accidental activation during the installation process.

Handle hydraulic hoses with care. A burst or improperly installed hose can release hydraulic fluid at high pressure, posing a risk of serious injury. Always test the connection with the system’s pressure off before full operation.

Post-Installation Testing

After installation, perform a pressure test to verify that the connection is secure and leak-free. Gradually increase the pressure while inspecting for any signs of leaks or weakness around the fitting.

Monitor the fitting and hose during initial operation to ensure the installation was successful and that the fitting performed as expected under normal operating conditions.

Compatibility and Selection Tips for 77 Series Crimp Fittings

Selecting the correct 77 Series Crimp Fitting is essential to ensure the reliability and efficiency of your hydraulic system. A proper selection process involves understanding the specific requirements of your application, including pressure ratings, hose types, and fluid compatibility. This section will guide you through the key factors to consider when choosing the right fitting and how to ensure compatibility for optimal system performance.

Choosing the Right 77 Series Fitting

When selecting a 77 Series Crimp Fitting, it’s crucial to evaluate the following factors to match your system’s requirements accurately:

Pressure Ratings:

Hydraulic systems operate at different pressure levels depending on the application, and it is essential to choose fittings rated for the specific pressures your system will encounter. The 77 Series fittings are designed to handle high-pressure environments, but always verify the fitting’s pressure rating to match or exceed the system’s maximum operating pressure. Choosing an undersized fitting can lead to leaks, system failure, or safety hazards.

Hose Types:

Not all hoses are compatible with every fitting type, so it’s important to ensure that the selected 77 Series fitting matches the hose you are using. The 77 Series is compatible with various hose types, including braided, spiral, and thermoplastic hoses. Each hose type has different pressure capabilities and performance characteristics, so selecting the appropriate combination of hose and fitting is crucial for system integrity.

Fluid Compatibility:

The type of hydraulic fluid used in your system also plays a significant role in choosing the right fitting. Ensure that the fitting material is compatible with the hydraulic fluid, whether it’s petroleum-based, synthetic, water-glycol, or fire-resistant fluid. For instance, stainless steel fittings are recommended for corrosive or chemically aggressive fluids, while carbon steel fittings with protective coatings may be suitable for standard hydraulic oils.

By considering these factors, you can choose a 77 Series Crimp Fitting that matches your application’s specific needs, ensuring both safety and performance.

Compatibility with Hoses

The 77 series crimp fittings are designed to work with a wide variety of hoses. However, understanding the compatibility of different hose types is crucial for making the correct selection:

Braided Hydraulic Hoses:

These hoses are commonly used in medium-to-high-pressure applications. The 77 Series is well-suited for braided hydraulic hoses, providing the necessary strength and durability to withstand the high pressure and dynamic movement typical in industrial systems. They are ideal for use in mobile equipment, industrial machinery, and agricultural applications.

Spiral Hydraulic Hoses:

Spiral hoses are typically used for high-pressure applications and are designed to handle extreme pressure fluctuations and high flow rates. The 77 Series fittings are compatible with these hoses, offering a secure, leak-free seal essential for maintaining performance in heavy-duty equipment like construction machinery and mining equipment.

Thermoplastic Hoses:

For systems requiring lightweight, flexible hoses, thermoplastic options are available. The 77 series crimp fittings are also compatible with thermoplastic hoses, making them suitable for mobile and compact hydraulic systems that benefit from the lightweight and flexibility of thermoplastic materials. These hoses are often used in robotics, aerial lifts, and other applications where flexibility is key.

Ensuring Optimal Performance

To maximize the performance and lifespan of the 77 series crimp fittings, it is essential to match the fittings to your system requirements accurately. Here are some tips for ensuring optimal performance:

Match Fittings to System Requirements:

Review the system’s pressure, temperature, and fluid characteristics before selecting the fitting. If your system operates at extreme temperatures or involves chemically aggressive fluids, opt for stainless steel fittings for enhanced corrosion resistance and longevity.

Consider the environmental conditions in which the fittings will be used. For example, systems exposed to corrosive environments (e.g., marine or chemical processing industries) should prioritize stainless steel or corrosion-resistant coatings.

Verify the Correct Fitting Size:

Fitting size is a critical factor that directly impacts the system’s performance. Ensure that the fitting matches the hose diameter perfectly, as an undersized or oversized fitting can lead to improper crimping, leaks, or reduced hydraulic efficiency. Always measure the hose and consult the 77 Series sizing chart to determine the correct fitting size.

Installation and Maintenance:

Even the best fittings can underperform if not installed or maintained correctly. Follow the manufacturer’s guidelines for crimping and installing the fittings to ensure a tight, secure seal. Regular maintenance and inspection of fittings and hoses will help identify wear, leaks, or other issues early, extending the life of the fitting and overall hydraulic system.

Conclusion

Choosing the correct fitting for your specific application is crucial for maintaining system integrity, preventing leaks, and ensuring long-term performance. Proper installation, including using the right tools and following best practices, is equally important to secure a leak-free, robust connection that withstands high pressure and challenging conditions.

FAQ

What are 77 series crimp fittings used for?

77 series crimp fittings are used to securely connect hoses in high-pressure hydraulic systems, ensuring leak-free and durable connections.

What types of hoses are compatible with 77 series crimp fittings?

The 77 Series is compatible with various hose types, including braided, spiral, and thermoplastic hydraulic hoses.

What materials are 77 series crimp fittings made from?

These fittings are commonly made from carbon steel and stainless steel, with options for plated finishes to enhance corrosion resistance.

How do I choose the right 77 Series Crimp Fitting?

Consider factors like pressure ratings, hose type, and fluid compatibility to match the fitting with your system’s requirements.

What tools are needed to install 77 series crimp fittings?

A hydraulic crimping machine, a die set matching the fitting size, and a hose cutter are essential for proper installation.

Can I use 77 series crimp fittings with any hydraulic fluid?

The fittings are compatible with a wide range of hydraulic fluids, but it’s important to verify that the fitting material matches the fluid type used in your system.

Oct, 2024

Why Is Inspecting and Replacing Hydraulic Lines Crucial?

Introduction

Hydraulic systems are the backbone of various industries, including industrial manufacturing, agriculture, and construction. These systems power everything from heavy machinery, like excavators and tractors, to precision manufacturing equipment. The efficiency and effectiveness of these operations often depend on the performance and reliability of their hydraulic systems. At the core of these systems are hydraulic lines—flexible hoses and rigid tubes designed to transport pressurized fluid throughout the machinery. These lines are vital for transmitting the power needed for movement and control functions. However, neglecting the maintenance and inspection of these lines can lead to severe consequences.

Understanding Hydraulic Systems

What Are Hydraulic Systems?

Hydraulic systems are essential in powering a wide range of machinery and equipment across various industries, including construction, agriculture, manufacturing, and transportation. They operate based on Pascal’s law, which states that when a fluid is contained in a closed system, any pressure applied to the fluid is transmitted equally throughout the system. This principle allows hydraulic systems to generate significant force with minimal effort.

A typical hydraulic system consists of several key components:

Hydraulic Pump: This component pressurizes the hydraulic fluid, converting mechanical energy (often from an engine) into hydraulic energy.

Valves: Valves regulate the flow of the pressurized fluid, directing it through different pathways to control the movement of machinery.

Cylinders: Cylinders convert hydraulic energy back into mechanical energy, generating linear motion that powers equipment such as excavator arms or lift platforms.

Hydraulic Hoses and Tubes: These components transport the pressurized fluid between the pump, valves, and cylinders, serving as the critical conduits that connect the entire system.

Hydraulic systems are widely used due to their ability to provide precise control and power to heavy machinery. From operating construction equipment like backhoes and cranes to agricultural machinery such as tractors and combines, these systems are indispensable in many industrial applications.

Role of Hydraulic Lines

Hydraulic lines—primarily composed of hoses and tubes—are vital in the efficient operation of hydraulic systems. These lines carry pressurized fluid (usually hydraulic oil) throughout the system, ensuring that each component receives the necessary fluid power to operate. The integrity and reliability of hydraulic hoses are crucial; any disruption, such as leaks or blockages, can significantly reduce system efficiency and lead to operational failures.

The primary function of hydraulic hoses is to provide flexibility and mobility within the system. These hoses are often reinforced with layers of braided steel or synthetic fibers, making them durable enough to withstand high pressure while remaining flexible enough to accommodate the movement of machinery. Hydraulic lines must also resist various stressors, such as bending, twisting, and vibrations, which are common in mobile and heavy-duty equipment.

Hydraulic Line Lifespan

The longevity of hydraulic lines depends on multiple factors, which include:

Pressure Levels: Hydraulic hoses are designed to handle high pressure, but over time, exposure to extreme pressures can cause the material to weaken and develop micro-cracks. Constant fluctuations in pressure also contribute to wear and tear.

Temperature Extremes: Operating in high-temperature environments can degrade hose materials, especially rubber components, leading to brittleness and cracking. Similarly, low temperatures may cause the hoses to stiffen and become more prone to damage.

Environmental Exposure: Hoses exposed to harsh environmental conditions, such as UV radiation, chemicals, or abrasion from rough surfaces, experience accelerated aging. This is common in construction and agricultural settings where equipment frequently operates outdoors.

Usage Frequency and Flexing: Frequent movement and flexing of hoses, especially in mobile equipment, increase the risk of fatigue failure. Repeated bending and twisting can cause kinks and damage to the reinforcement layers within the hose.

Risks of Neglecting Hydraulic Line Maintenance

Maintaining hydraulic lines is critical to ensuring the safe and efficient operation of equipment across various industries. Neglecting this maintenance can lead to severe consequences, impacting not just equipment but also the safety of operators and the environment. Below are the key risks associated with neglecting hydraulic line maintenance:

Safety Hazards

Hydraulic systems operate under high pressure, often exceeding 2,000 PSI. The failure of a hydraulic line can have immediate and dangerous consequences:

Fluid Injection Injuries: One of the most serious risks is fluid injection, which occurs when pressurized hydraulic fluid escapes through a pinhole leak and penetrates the skin. These injuries might seem minor initially but can cause severe damage, including tissue necrosis, if not treated immediately. The injected fluid can spread quickly, often requiring surgical intervention. If hydraulic lines are not inspected and maintained properly, the risk of such injuries increases significantly.

Burns from Hot Fluids: Hydraulic fluid often operates at temperatures exceeding 200°F (93°C). A burst hydraulic hose can release this hot fluid, leading to severe burns for anyone in proximity. Additionally, some hydraulic fluids contain additives that can cause chemical burns, further increasing the risk to personnel handling or working near the equipment.

Slip Hazards: Leaking hydraulic fluid creates slippery surfaces, which pose a risk of slips and falls, especially in construction and industrial environments where workers are frequently moving around machinery. Even a small leak can result in a significant amount of fluid on the ground, turning workspaces into accident-prone areas. Routine inspections and maintenance are essential to identify and fix these leaks before they lead to injuries.

Environmental and Health Risks

Hydraulic fluid leaks pose significant risks to the environment and human health:

Soil Contamination: When hydraulic fluid leaks from equipment, it can seep into the ground, contaminating soil and groundwater. Many hydraulic fluids contain chemicals and additives designed to enhance performance, but these substances can be toxic when they enter the environment. Over time, these contaminants can harm local ecosystems and wildlife, leading to long-term environmental damage.

Air and Water Pollution: In addition to soil contamination, hydraulic fluid can evaporate and release harmful fumes into the air, especially in hot conditions. This not only affects air quality but also poses health risks to workers exposed to the vapors. Moreover, if the fluid enters water sources, it can cause further environmental hazards, contaminating water supplies and harming aquatic life.

Skin Irritation and Toxicity: Prolonged exposure to hydraulic fluids, especially those with synthetic or toxic additives, can cause skin irritation or dermatitis. Workers handling damaged or leaking hoses without proper protective gear may experience skin reactions ranging from mild redness to severe blistering. Long-term exposure may also pose risks of more serious health issues, such as respiratory or neurological effects, due to toxic additives in certain hydraulic oils.

Operational Downtime and Equipment Damage

Beyond safety and environmental concerns, neglecting hydraulic line maintenance can lead to significant operational challenges:

Equipment Malfunctions: A leaking or damaged hydraulic line can result in pressure loss, leading to inefficient equipment performance or even total failure. For machinery that relies on precise hydraulic control—such as cranes, loaders, and manufacturing equipment—such malfunctions can halt operations entirely. Hydraulic systems are designed to operate within specific pressure ranges; when hoses fail to maintain these parameters, the entire system becomes compromised.

Costly Repairs and Replacements: Repairing equipment after a hydraulic line failure is often more expensive than routine maintenance. When a hydraulic hose bursts, it can damage other components, such as pumps, valves, and cylinders, resulting in cascading failures. In some cases, machinery might need to be taken offline for extended periods, requiring not only repairs but also additional costs for replacement parts and labor. Proactive maintenance is significantly cheaper than dealing with the aftermath of unexpected breakdowns.

Extended Downtime: In industries where uptime is critical, such as construction, manufacturing, and agriculture, hydraulic line failures can lead to prolonged downtime. This not only affects productivity but can also result in missed deadlines, lost revenue, and reputational damage for companies unable to deliver on time. Implementing a consistent maintenance schedule reduces the risk of unexpected breakdowns, ensuring that machinery remains operational and efficient.

Reduced Lifespan of Equipment: Hydraulic lines are integral to the performance of machinery, and their failure can lead to damage beyond the hoses themselves. When lines are neglected, pumps, seals, and other components may operate under compromised conditions, leading to accelerated wear and tear. Over time, this reduces the overall lifespan of the equipment, resulting in more frequent replacements and increased capital expenditures. By conducting regular inspections and timely replacements, the lifespan of the entire hydraulic system can be extended, optimizing operational efficiency and minimizing long-term costs.

Importance of Regular Inspection

Maintaining hydraulic systems involves more than just addressing issues when they arise; it requires a proactive approach through regular inspections. By scheduling routine checks, industries can prevent accidents, reduce downtime, and ensure optimal equipment performance.

Inspection Frequency Guidelines

Establishing a consistent inspection schedule is crucial for the effective maintenance of hydraulic systems. The frequency of these inspections can vary based on industry requirements, usage intensity, and environmental conditions. Here are the recommended intervals for inspections:

Daily Inspections:

These are quick visual checks performed at the beginning or end of each shift, ideal for operations where hydraulic systems are used intensively (e.g., construction and manufacturing).

Operators should visually inspect hoses for any obvious signs of wear, such as leaks, abrasions, or cracking. These checks help detect problems early, preventing sudden failures during operation.

It’s also important to check fluid levels to ensure they are within the recommended range, as low fluid levels may indicate a leak or other system malfunction.

Weekly Inspections:

Weekly inspections involve a more thorough check beyond just the hoses. Inspectors should check the fittings, connections, and seals for any signs of damage, corrosion, or misalignment.

This level of inspection may include slightly manipulating hoses to detect small leaks or bulges that may not be obvious during daily checks. These more in-depth checks allow operators to identify issues that might have been missed during daily inspections.

Monthly Inspections:

Monthly inspections are comprehensive and require detailed examination. In addition to the visual checks performed daily and weekly, pressure testing and the use of specialized tools, such as leak detection fluids, are essential at this stage.

Monthly checks may also involve inspecting the overall routing of hydraulic lines to ensure that they are not rubbing against other components or subjected to sharp bends, which could compromise their integrity over time.

Documentation is a critical part of monthly inspections. Recording findings and any maintenance actions taken helps track the system’s health over time and ensures any recurring issues are addressed.

These intervals provide a balanced approach to maintenance, ensuring that systems are monitored without overburdening operational schedules. Adjusting these frequencies based on equipment usage intensity or industry-specific needs can further enhance system reliability and safety.

Key Aspects to Inspect

When conducting inspections, it’s important to focus on critical areas that are most susceptible to wear and damage. Below are the key aspects to inspect:

Visual Checks:

Abrasion and Cracks: Inspect the outer surface of the hoses for signs of abrasion or cracking, which often occur due to friction with other equipment or exposure to harsh environmental conditions. Cracks are a precursor to leaks and can compromise hose integrity if not addressed promptly.

Pinhole Leaks: Small, barely visible holes can develop due to constant pressure and fluid movement within the hose. Inspectors should pay close attention to areas where hoses flex frequently, as these are prime spots for pinhole leaks. Using cardboard or a similar tool to detect these leaks safely without using hand is recommended.

Fittings and Connections: Check the fittings at both ends of the hoses for corrosion, alignment, and tightness. Loose or misaligned fittings can lead to leaks and reduced system efficiency. Additionally, worn or damaged seals should be replaced to maintain the integrity of the connection.

Hose Routing and Alignment:

Proper routing is crucial for the longevity of hydraulic lines. Hoses should not be bent at sharp angles or twisted, as this can cause internal wear, leading to premature failure. Monthly inspections should involve verifying that hoses are positioned correctly, ensuring they are free from obstructions and are not rubbing against other components.

Fluid Levels and Quality:

Monitoring hydraulic fluid levels is essential, as fluctuations can indicate leaks. Also, checking the quality of the fluid (e.g., clarity and absence of contaminants) ensures that the system is operating under optimal conditions. Fluid analysis can reveal contaminants or degradation that might not be visible during routine checks, providing insight into the overall health of the system.

Tools and Techniques for Effective Inspection

To conduct thorough inspections, utilizing the right tools and techniques is essential. Here are some effective methods:

Leak Detection Fluids:

Specialized leak detection fluids help identify small leaks that may not be visible during standard visual inspections. These fluids change color when they come into contact with hydraulic oil, allowing technicians to pinpoint the exact location of a leak without exposing themselves to pressurized fluids.

Pressure Testing:

Regular pressure testing is crucial for assessing the integrity of hydraulic hoses. By pressurizing the system to its operating level and monitoring pressure consistency, inspectors can detect weaknesses that may lead to failures. Pressure testing should be done using appropriate equipment that can measure and record pressure levels accurately, helping identify even minor fluctuations.

Ultrasonic Testing Equipment:

Advanced ultrasonic tools can detect internal damage in hoses and fittings that may not be visible externally. These devices emit ultrasonic waves that reflect differently based on the material’s integrity, making them effective for identifying thinning or wear within the hose walls.

These tools are particularly useful for high-pressure systems where visual inspections alone may not reveal the full extent of potential issues.

Thermal Imaging Cameras:

Hydraulic systems often operate under high temperatures, and any deviation from normal temperature ranges may indicate issues such as blockages, fluid degradation, or leaks. Thermal imaging cameras can quickly scan hoses and fittings, identifying abnormal temperature patterns that suggest problems.

Digital Inspection Logs:

Maintaining detailed inspection logs is important for tracking the history of a hydraulic system. Using digital logs allows for easy recording, access, and analysis of data, ensuring that any recurring issues are flagged and addressed. This also provides a reference point for future inspections, helping to identify patterns that might indicate specific areas of concern.

Replacing Hydraulic Lines: Best Practices

Signs It’s Time for a Replacement

To maintain the reliability and safety of hydraulic systems, it’s essential to recognize when hoses need replacement. Here are key indicators that it’s time to replace hydraulic lines:

Visible Damage:

The most obvious sign that a hydraulic hose needs replacement is visible damage. This includes cracks, abrasions, blisters, or any signs of wear along the outer cover of the hose. Abrasions can occur when hoses rub against equipment or surfaces, leading to compromised hose strength and eventually leaks.

Another visible indication is the presence of kinks or twists. These can occur due to improper routing or installation and can lead to internal damage, reducing the hose’s ability to withstand pressure.

Pressure Loss:

A sudden or gradual drop in pressure is a significant sign of a compromised hose. If pressure tests reveal that a system cannot maintain its required pressure level, this suggests internal damage, such as a collapsed inner tube or a leak, necessitating immediate hose replacement.

Compromised Fittings:

Inspecting hose fittings is as crucial as examining the hose itself. Corrosion, cracks, or misalignment at the fittings can compromise the integrity of the connection, leading to leaks or complete hose failure. If any such damage is observed, replacing both the hose and the fitting is advisable to maintain a secure connection and optimal performance.

Fluid Leakage:

Even small leaks are a clear indication of hose failure. Pinhole leaks might be hard to detect visually, but signs like oil stains, wet spots, or pressure drops can signal their presence. Replacing hoses at the first sign of leakage is essential to prevent safety hazards and environmental contamination.

Being vigilant about these signs helps maintain system safety and efficiency, avoiding unplanned downtime and costly repairs.

Safe Replacement Procedures

When replacing hydraulic lines, following a systematic approach ensures safety and optimal system performance. Below is a step-by-step guide for safely replacing hoses:

Shutdown and Depressurization:

Before beginning any maintenance, shut down the equipment completely. Hydraulic systems often operate under high pressure; thus, failing to depressurize the system can lead to serious injuries. Release the pressure in the system by actuating the control valves or using a pressure release valve, ensuring all residual pressure is safely discharged.

Verify that the system is fully depressurized by checking the pressure gauges. Double-check for trapped pressure in any components like cylinders to avoid unexpected discharges when disconnecting hoses.

Safety Precautions:

Wear appropriate protective gear, such as safety gloves, eye protection, and flame-resistant clothing. Hydraulic fluid can be extremely hot and can cause burns or other contact injuries.

Avoid using your hands to detect leaks or fluid escaping under pressure. Instead, use non-conductive tools like cardboard or leak detection fluids to locate leaks safely.

Ensure the work area is clear, and all parts of the machinery that could move (like arms or attachments) are secured to prevent movement during hose replacement.

Disconnect the Damaged Hose:

Identify and label both ends of the hose to ensure proper reinstallation. Use the correct size wrenches to disconnect the fittings, holding one end steady while loosening the other to avoid damaging seals.

Be prepared for any remaining fluid in the hose to leak out when disconnecting it. Use a catch basin to collect any fluid and prevent it from contaminating the work area.

Select Manufacturer-Recommended Hoses and Fittings:

Always replace hoses with those that meet the specifications recommended by the manufacturer. Using hoses not designed for your system can lead to premature failure, pressure loss, or safety hazards.

Ensure that fittings are compatible with the new hose type. Mismatched fittings can cause leaks, pressure loss, and even lead to catastrophic hose failure.

Install the New Hose:

Before installing, inspect the new hose for any visible defects. Use caps or plugs to keep dirt and debris out of the hose during installation.

Route the hose properly, ensuring it follows the equipment’s designed path without sharp bends, twists, or contact with moving parts. Improper routing is a common cause of premature hose wear.

Attach the hose fittings securely, tightening them according to the manufacturer’s specifications. Over-tightening can damage seals, while under-tightening can cause leaks.

Test the System:

After installation, check the system for leaks by gradually increasing the pressure. Monitor the fittings and the hose for any signs of leakage, and address any issues immediately.

If necessary, bleed the system to remove trapped air, which is essential for maintaining proper pressure levels and avoiding erratic equipment movement.

Ensuring Correct Installation

Proper installation is key to maximizing the lifespan of hydraulic hoses. Here are some best practices:

Avoid Sharp Bends and Twists:

Make sure the hose is installed in a way that allows it to flex naturally without sharp bends. Sharp angles can stress the hose, leading to cracks or bursts under pressure.

Avoid twisting the hose during installation, as this can compromise its structural integrity. Twist can cause the hose reinforcement layers to become misaligned, significantly reducing the hose’s pressure capacity.

Allow for Proper Slack:

Ensure the hose has the correct amount of slack to accommodate movement. Too much slack can result in the hose rubbing against surfaces, while too little slack can cause it to stretch beyond its limits.

Clamps and hose supports should be used to keep hoses in place and prevent them from coming into contact with moving parts, which could cause wear and abrasion.

Documenting Maintenance

Keeping a maintenance log is an important part of hydraulic system management. Proper documentation helps track the condition of hoses, ensures compliance with maintenance schedules, and improves overall system reliability.

Record Inspection and Replacement Dates:

Each time a hose is inspected or replaced, record the date, details of the inspection, and any actions taken. This allows you to track the frequency of maintenance and identify any patterns of failure.

Include information about the hose type, part number, and manufacturer recommendations to ensure that replacements are consistent with system requirements.

Track Equipment Performance:

Logging pressure readings, inspection notes, and replacement intervals provide a comprehensive overview of system performance. This data can help identify recurring issues, enabling technicians to adjust maintenance routines or hose specifications to improve reliability.

Documentation also ensures that maintenance complies with safety and industry regulations, which is crucial for preventing liabilities in case of an accident or equipment failure.

Use Digital Maintenance Logs:

Utilizing digital tools for logging maintenance activities streamlines the process and provides easy access to historical data. Digital logs can also trigger maintenance reminders based on the recorded replacement intervals, helping to prevent hose failures due to oversight.

Conclusion

To ensure consistent performance, it is essential to establish a regular maintenance schedule tailored to the specific needs of the machinery and its operational environment. Regular inspections, documented maintenance logs, and the use of manufacturer-recommended parts are key to achieving reliable results. For complex systems or when unsure about procedures, consider consulting professional hydraulic technicians to handle inspections and replacements safely.

FAQ

How often should hydraulic lines be inspected?

Hydraulic lines should be inspected daily, weekly, and monthly, depending on the usage intensity and industry. Daily visual checks, weekly in-depth examinations of fittings, and monthly comprehensive inspections with pressure tests are recommended.

What are the signs that a hydraulic hose needs to be replaced?

Key signs include visible cracks, abrasions, fluid leaks, pressure loss, and damage or corrosion at the fittings. Any indication of wear should be addressed immediately to prevent equipment failure.

How can I safely replace a hydraulic hose?

Ensure the machinery is fully shut down and depressurized before beginning. Wear protective gear, use manufacturer-recommended hoses and fittings, and follow proper routing and installation practices to avoid damage and ensure safety.

Why is it important to maintain hydraulic hoses?

Maintaining hydraulic hoses is crucial to prevent accidents, avoid environmental hazards, and reduce equipment downtime. Proper maintenance ensures optimal performance and extends the lifespan of the system.

Can I use any hose as a replacement?

No, always use hoses that meet the manufacturer’s specifications for your equipment. Using non-recommended hoses can lead to premature failure and safety hazards.

What should be documented after replacing a hydraulic hose?

Record the date of replacement, details of the new hose and fittings used, pressure tests conducted, and any other maintenance actions taken. Keeping a log helps track system performance and ensures compliance with safety protocols.
