Hose Assembly Ordering Tips: Avoid Million-Dollar Mistakes

Hydraulic hose assemblies are the vital arteries of countless industrial systems, from massive construction equipment to precision manufacturing machinery. Despite their critical importance, the process of ordering these components remains fraught with potential pitfalls. The complex technical language, numerous parameters, and intricate specifications create a minefield of opportunities for costly mistakes. We’ll explore the detailed coding system used in ordering, the precise methods for measuring assembly length, the critical importance of assembly angles, the rules governing natural bending direction, and essential technical parameters that influence performance and longevity.

Hose Assembly Length Measurement Methods

Standard Measurement Methodology

The accurate measurement of hose assembly length is a fundamental aspect of proper specification that directly impacts system performance and component longevity. According to industry standards, hose assembly length L is measured from the core end face of straight fittings or from the core center of bent fittings. This standardized approach ensures consistency across different manufacturers and applications.

For precise measurements, specific considerations apply to different fitting types:

For straight fittings: Measurement is taken from the core end face, which is typically the plane where the fitting contacts the connected equipment
For bent fittings: Measurement is taken from the core center, which is the central point of the bent section

Proper measurement requires appropriate tools:

Steel measuring tape (with precision of at least 1mm)
Calipers (for precise fitting dimension measurements)
Specialized measurement fixtures (for specific hose assembly models)

The importance of accurate length measurement cannot be overstated. A hose that is too short will experience excessive tension during operation, significantly reducing its service life. Conversely, a hose that is too long may experience excessive bending or abrasion against nearby components, potentially leading to premature failure.

Hose Assembly Length Measurement Methods

Common Measurement Pitfalls

Several common errors frequently occur during hose assembly length measurement:

Incorrect reference points: Many technicians erroneously measure from the outer end of the fitting or from the connection point between the hose and fitting, rather than from the standard core end face or core center
Failure to account for hose curvature: Hose assembly length should be measured in its natural state, not forcibly straightened
Temperature effects ignored: Certain hose materials may experience slight length variations at different temperatures
Tolerance requirements overlooked: Different hose assembly specifications have different length tolerance requirements

These measurement errors can lead to significant problems during installation and operation. For example, a hose assembly that is measured incorrectly and produced too short may be impossible to install without applying excessive force, creating built-in stress that will accelerate failure. Alternatively, an excessively long hose may create routing problems, interference with moving parts, or excessive slack that leads to abrasion damage.

Length Tolerances and Practical Applications

According to industry standards, hose assembly length tolerances typically follow these guidelines:

Length ≤630mm: ±6mm
Length 631-1250mm: ±12mm
Length 1251-2500mm: ±20mm
Length >2500mm: ±1.5%

These tolerance ranges reflect the practical realities of manufacturing processes and the functional requirements of hydraulic systems. When selecting appropriate length for specific applications, several factors must be considered:

Installation space constraints
Movement requirements for dynamic applications
Thermal expansion and contraction
Pressure-induced elongation or contraction
Routing requirements to avoid interference with other components

In practical applications, it is often advisable to include a modest length margin (typically 5-10%) beyond the minimum required length to accommodate installation variations and to prevent excessive tension. However, this additional length must be balanced against the risk of excessive bending or interference issues.

Assembly Angle Representation Methods

Definition and Importance of Assembly Angles

The assembly angle is a critical parameter that defines the relative angular relationship between the two end fittings of a hose assembly. This specification directly impacts the hose’s installation path and stress distribution. Proper assembly angle specification provides several significant benefits:

Reduces torsional stress in the hose, extending service life
Ensures the hose follows the designed routing path, preventing interference and abrasion
Simplifies the installation process, improving assembly efficiency
Reduces system pressure loss, enhancing energy efficiency

In hydraulic systems where space constraints and component movement are significant factors, the precise specification of assembly angles becomes particularly crucial. Incorrect assembly angles can lead to hose twisting, excessive bending, or improper routing, all of which contribute to premature failure and system inefficiency.

Detailed Measurement Methodology

The standard method for measuring assembly angles follows these steps:

Place the hose assembly along a straight line
Position one of the fittings in a vertical orientation
Measure the angle between the second fitting and the vertical direction in a clockwise direction
This measured angle is the assembly angle

This standardized approach ensures consistency across different manufacturers and applications. The measurement requires appropriate tools:

Protractor or angle gauge
Specialized assembly angle measurement fixtures
Digital angle measurement devices

For complex hose assemblies with multiple bends or special routing requirements, more sophisticated measurement techniques may be necessary, potentially involving 3D coordinate measurement or digital modeling.

Tolerance and Adjustment

According to industry standards, the allowable tolerance for assembly angles is typically ±3°. This tolerance range accounts for several factors:

Assembly process variations
Measurement tool precision limitations
Elastic deformation of hose materials

When the actual assembly angle exceeds the tolerance range, several remedial actions may be necessary:

Refitting the end connections
Adjusting the hose cut length
In extreme cases, replacing the entire hose assembly

The ±3° tolerance provides a practical balance between manufacturing feasibility and functional requirements. In most applications, this tolerance range is sufficient to ensure proper installation and performance. However, certain precision applications may require tighter tolerances, necessitating specialized manufacturing processes and quality control measures.

Assembly Angle Representation in Ordering Codes

Assembly angles are represented in ordering codes using “V” followed by the angle value. For example:

V0: Indicates a 0-degree assembly angle (both fittings aligned in the same direction)
V90: Indicates a 90-degree assembly angle (fittings perpendicular to each other)
V180: Indicates a 180-degree assembly angle (fittings pointing in opposite directions)
V270: Indicates a 270-degree assembly angle (fittings perpendicular, in the opposite direction from V90)

This standardized notation system allows for clear communication of assembly angle requirements between engineers, maintenance personnel, and manufacturers. The “V” prefix distinguishes assembly angle specifications from other numerical parameters in the ordering code.

Natural Bending Direction Regulations

Concept and Importance of Natural Bending Direction

The natural bending direction of a hose assembly refers to the inherent bending plane that the hose assumes when no external force is applied. Understanding and correctly applying natural bending direction is crucial for several reasons:

Ensures the hose is installed without torsional stress
Extends the service life of the hose
Reduces system pressure loss
Improves overall system reliability

When a hose is manufactured, particularly those with wire reinforcement, it develops a natural tendency to bend in a specific plane. Installing the hose contrary to this natural bending direction introduces torsional stress, which significantly reduces service life and can lead to premature failure. Industry studies have shown that hoses installed against their natural bending direction may experience up to a 70% reduction in service life compared to properly installed assemblies.

Detailed Analysis of Two Bent Fittings Configuration

When both ends of a hose assembly have bent fittings, the measurement methodology is as follows:

Straighten the hose assembly and observe it along a straight line
Position bent fitting 1 in a vertical upward direction
Measure the angle between bent fitting 2 and the vertically positioned bent fitting 1 in a clockwise direction
This angle is the assembly angle, represented by V

For example, when the assembly angle is 225°, it is marked as V225.

This standardized approach ensures consistency in specifying the relationship between the two bent fittings. The measurement requires careful attention to the orientation of both fittings relative to each other and to the natural bending plane of the hose.

One Bent Fitting and One Straight Fitting Configuration

When a hose assembly has one bent fitting and one straight fitting, four basic configurations exist:

The bent fitting’s bending plane aligns with the hose’s natural bending plane, with the same bending direction
The bent fitting’s bending plane aligns with the hose’s natural bending plane, with opposite bending directions
The bent fitting’s bending plane is perpendicular to the hose’s natural bending plane, bending to the left
The bent fitting’s bending plane is perpendicular to the hose’s natural bending plane, bending to the right

The determination method involves:

Placing the hose naturally on a horizontal surface
Observing the relationship between the bent fitting and the hose’s natural bending direction
Identifying the specific configuration based on the four scenarios described above

This assessment requires experience and careful observation, as the natural bending plane may not always be immediately obvious, particularly in hoses with multiple reinforcement layers or special construction.

Complex Configurations with Two Bent Fittings

When both ends of a hose assembly have bent fittings, the situation becomes more complex.

Two bent fittings with parallel bending planes, same bending direction, aligned with the hose’s natural bending plane
Two bent fittings with parallel bending planes, opposite bending directions, aligned with the hose’s natural bending plane
Two bent fittings with parallel bending planes, same bending direction, perpendicular to the hose’s natural bending plane
Two bent fittings with parallel bending planes, opposite bending directions, perpendicular to the hose’s natural bending plane
Two bent fittings with perpendicular bending planes, one aligned with the hose’s natural bending plane, the other perpendicular to it
Two bent fittings with perpendicular bending planes, both at 45° angles to the hose’s natural bending plane
Two bent fittings with bending planes at arbitrary angles, with complex relationships to the hose’s natural bending plane

These complex configurations require specialized measurement tools and methods for accurate assessment, typically performed by experienced technical personnel. The complexity of these configurations highlights the importance of proper documentation and communication when ordering replacement hose assemblies.

Hose Technical Parameter Selection Guide

Hose Inner Diameter Selection

The inner diameter is one of the most critical parameters, directly affecting system flow and pressure loss. Selection principles include:

Flow-Based Calculation:

Excessive flow velocity leads to high pressure loss and system heating

Recommended hydraulic oil flow velocity ranges:

Suction lines: 0.5-1.5 m/s
Return lines: 2-4 m/s
Pressure lines (<7MPa): 3-5 m/s
High-pressure lines (>7MPa): 4-6 m/s

Calculation Formula:d = √(4Q/πv) Where: d is inner diameter (m), Q is flow rate (m³/s), v is flow velocity (m/s)

Standardized Selection: After calculating the theoretical inner diameter, select the closest standard size. Common standard inner diameters include: 6mm, 8mm, 10mm, 12mm, 16mm, 19mm, 25mm, 31.5mm, and 38mm.

The consequences of improper diameter selection can be severe. Undersized hoses create excessive flow velocity, leading to system overheating, efficiency loss, and excessive pressure drop. Conversely, oversized hoses increase costs unnecessarily and may create installation challenges due to their larger bend radius requirements.

A practical example illustrates this importance: A hydraulic press with a 60L/min flow rate was initially fitted with 12mm inner diameter hoses. After experiencing overheating issues, analysis revealed flow velocities exceeding 8m/s. Upgrading to 16mm inner diameter hoses reduced flow velocity to approximately 5m/s, resolving the overheating problem and improving system efficiency by 15%.

Working Pressure Selection

Working pressure refers to the maximum allowable pressure during continuous operation, typically set at one-quarter of the hose’s minimum burst pressure. Selection principles include:

Safety Factor Considerations:

General hydraulic systems: Safety factor 4 (working pressure is 1/4 of burst pressure)
Critical safety systems: Safety factor 6-8 (working pressure is 1/6 to 1/8 of burst pressure)
Human safety-related systems: Safety factor 8-10

Pressure Rating Selection: Common hose pressure ratings include:

Low pressure: ≤7MPa
Medium pressure: 7-21MPa
High pressure: 21-42MPa
Ultra-high pressure: >42MPa

Pressure Fluctuation Consideration: System design pressure should account for 1.25-1.5 times the normal working pressure to accommodate pressure fluctuations.

Selecting a hose with inadequate pressure rating is one of the most dangerous errors in hydraulic system design. A burst high-pressure hose can cause catastrophic equipment damage and serious personnel injuries. Conversely, specifying excessively high-pressure hoses unnecessarily increases costs and may reduce flexibility.

Impulse Pressure and Fatigue Life Assessment

Impulse pressure is a common phenomenon in hydraulic systems that significantly affects hose fatigue life:

Impulse Pressure Sources:

Hydraulic pump starting and stopping
Rapid directional valve actuation
Sudden load changes
System resonance

Impulse Pressure Effects:

Peak impulse pressures can reach 2-3 times the normal working pressure
Frequent impulse pressure accelerates inner layer aging
May cause fatigue fracture of the reinforcement layer

Countermeasures:

Select impulse-resistant hose products (such as 4SP, 4SH series)
Install buffer devices or accumulators in the system
Design piping rationally, avoiding sharp bends and sudden cross-section changes

Fatigue Life Assessment:

Standard fatigue test: Cyclic loading from 0 to rated pressure, recording cycles to failure
High-quality hydraulic hoses should withstand over 1 million pressure cycles

Temperature Range Selection

Temperature significantly affects hose performance and service life:

Temperature Effects:

Excessive heat: Accelerates inner rubber layer aging, reducing elasticity and sealing properties
Excessive cold: Hardens rubber, causing loss of flexibility and potential cracking

Common Hose Temperature Ranges:

Standard nitrile rubber inner layer: -40°C to +100°C
Fluoroelastomer inner layer: -20°C to +150°C
PTFE inner layer: -55°C to +200°C

Special Environment Solutions:

High-temperature environments: Select heat-resistant hoses or add thermal insulation sleeves
Low-temperature environments: Select specially formulated low-temperature hoses
Environments with large temperature fluctuations: Select wide-temperature-range hoses and consider thermal expansion effects

Chemical Compatibility Assessment

Different hydraulic media have varying chemical effects on hose materials:

Common Hydraulic Media:

Mineral oil: Compatible with most standard hoses
Synthetic ester oils: May cause swelling in certain rubbers
Water-glycol mixtures: Require special inner layer materials
Phosphate ester fire-resistant fluids: Corrosive to standard nitrile rubber

Material Selection Guidelines:

Mineral oil: Nitrile rubber inner layer
Synthetic ester oils: Fluoroelastomer inner layer
Phosphate ester fire-resistant fluids: Polyurethane or specially formulated rubber
Biodegradable oils: Consult manufacturer compatibility tables

Compatibility Testing: For special media, immersion testing should evaluate:

Volume change (swelling or shrinkage)
Hardness change
Tensile strength change

Chemical incompatibility can lead to catastrophic failures. A paper mill case study demonstrates this: After switching to a new biodegradable hydraulic fluid without updating hydraulic hose specifications, multiple hose failures occurred within weeks. Investigation revealed severe inner layer degradation due to chemical incompatibility. Replacing with compatible hoses resolved the issue, but not before significant production losses occurred.

Conclusion

It is worth emphasizing that the knowledge presented here is not just theoretical best practices, but hard-won lessons learned from real-world experience. By consistently applying these principles, organizations can significantly improve the reliability, efficiency and safety of their hydraulic systems while reducing total cost of ownership. If you want to order a hydraulic assembly but don’t know how to do it, contact Topa and we can help you customize the most appropriate hydraulic assembly!

FAQ

What is a hose assembly ordering code and what key information does it contain?

The hose assembly ordering code is a standardized coding system that precisely describes all critical parameters including fitting types, hose specifications, length, assembly angles, and special requirements such as protective sleeves.

How should the length of a hose assembly be properly measured?

Hose assembly length should be measured from the core end face of straight fittings or from the core center of bent fittings, using a steel measuring tape with the hose in its natural state.

What is an assembly angle and how is it correctly measured and represented?

The assembly angle is the relative angular relationship between the two end fittings, measured by placing one fitting vertically and measuring the clockwise angle to the second fitting, represented as “V+angle” (e.g., V90) in the ordering code.

What is the natural bending direction of a hose and why is it important?

The natural bending direction is the inherent bending plane that the hose assumes without external force, and it’s crucial because installing against this direction creates torsional stress that can reduce service life by up to 70%.

How should the appropriate hose inner diameter be selected?

The appropriate hose inner diameter should be selected based on flow rate calculations (d = √(4Q/πv)) to maintain recommended flow velocities (typically 3-6 m/s for pressure lines) and prevent system overheating or excessive pressure loss.

Why are protective measures needed for hose assemblies and what common types are available?

Protective measures are essential to prevent external abrasion and environmental damage, with common options including spring guards (RS), nylon sleeves (NS), stainless steel braided sleeves (SSX), and fire protection sleeves (FP) selected based on the specific operating environment.

May, 2025

Guide to Hydraulic Hose Installation banner

Guide to Hydraulic Hose Installation: Bend Radius Standards

Failure to follow bend radius specifications can lead to catastrophic consequences. Excessive bending creates stress concentrations that weaken the hose’s reinforcement layers, potentially resulting in premature failure through bursting or leakage. Such failures not only cause system downtime and repair costs but may also create hazardous conditions through high-pressure fluid injection injuries or fire hazards from spraying hydraulic fluid. Additionally, kinked hoses restrict flow, causing pressure spikes, increased energy consumption, and accelerated system wear through cavitation and fluid turbulence. So how do you properly install hydraulic hoses? Keep reading to get the most specialized information!

Fundamentals of Bend Radius in Hydraulic Systems

Defining Minimum Bend Radius and Its Importance

Minimum bend radius refers to the smallest radius to which a hydraulic hose can be bent without causing structural damage or performance degradation. This critical specification is typically expressed as a multiple of the hose’s outer diameter (OD). For example, a 1-inch OD hose with a bend radius factor of 6 would require a minimum bend radius of 6 inches. This measurement represents the radius to the centerline of the hose’s curvature, not to its inner edge. Adhering to minimum bend radius specifications prevents internal structural damage, maintains flow efficiency, and ensures the hose can withstand its rated pressure capacity throughout its service life.

How Bend Radius Affects Hose Performance and Longevity

When a hydraulic hose bends, complex forces act upon its layered structure. The inner layer experiences compression while the outer layer undergoes tension. Excessive bending creates disproportionate stress distribution that can permanently deform reinforcement layers, leading to premature failure. Research indicates that bending a hose below its minimum radius can reduce service life by up to 70% through accelerated fatigue and structural weakening. Additionally, tight bends restrict flow area, creating turbulence and pressure drops that diminish system efficiency. Each 10% reduction below recommended bend radius typically results in approximately 5-8% flow restriction and corresponding performance losses.

The Relationship Between Hose Diameter and Bend Radius

As hydraulic hose diameter increases, the minimum bend radius factor typically increases proportionally. This relationship exists because larger diameter hoses experience greater structural stress during bending due to the increased distance between inner and outer curvatures. While smaller hoses might safely operate with bend radius factors of 4-6 times their outer diameter, larger industrial hoses often require factors of 8-12 or higher. This scaling relationship becomes particularly critical in high-pressure applications, where the combination of internal pressure forces and bending stress creates compound loading conditions that must be carefully managed through proper installation practices.

Wire-Braided Hydraulic Hose Bend Radius Requirements

Wire-braided hydraulic hoses represent the most common reinforcement design in fluid power applications, offering an optimal balance of pressure capacity, flexibility, and cost-effectiveness. The braided wire reinforcement layer provides structural integrity while allowing sufficient flexibility for installation in complex routing scenarios.

Single Wire Braid Construction and Bend Specifications

Single wire braid hydraulic hoses (commonly designated as SAE 100R1 or EN 853 1SN) feature one layer of high-tensile steel wire braided over a synthetic rubber inner tube. As highlighted in the original document, these hoses typically require a minimum bend radius of 6 times the hose’s outer diameter. This specification balances flexibility with structural integrity, allowing the single reinforcement layer to maintain its woven pattern without distortion when properly bent. For example, a 10mm outer diameter single-braided hose would require a minimum bend radius of 60mm to prevent structural damage and ensure optimal performance throughout its service life.

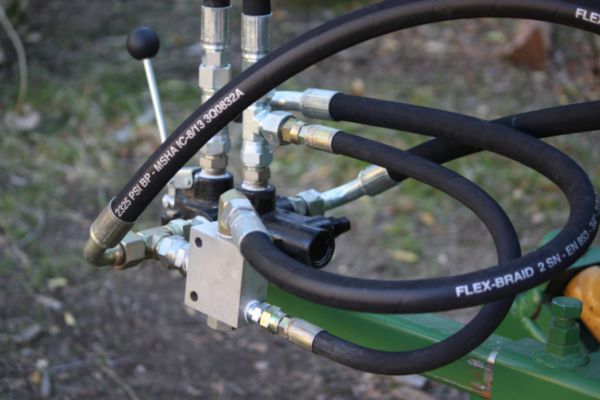

Double Wire Braid Standards for Enhanced Pressure Applications

Double wire braided hoses (such as SAE 100R2 or EN 853 2SN) incorporate two layers of braided steel wire reinforcement, significantly increasing pressure capacity but requiring more conservative bend radius specifications. These hoses typically demand a minimum bend radius of 7 times the outer diameter, reflecting the additional stiffness introduced by the second reinforcement layer. This increased bend radius requirement accommodates the complex interaction between the two braided layers during flexing, preventing friction-induced wear between reinforcement layers that could lead to premature failure. The higher bend radius factor ensures that stress distribution remains within acceptable limits across both reinforcement layers.

Triple Wire Braid Configurations for Extreme Conditions

Triple wire braided hoses, designed for extreme high-pressure applications, feature three layers of braided reinforcement for maximum pressure containment. These specialized hoses require a minimum bend radius of 8 times the outer diameter to accommodate the substantial reinforcement structure. The increased bend radius factor compensates for the significantly reduced flexibility resulting from the multiple reinforcement layers, preventing excessive stress concentration that could compromise the hose’s structural integrity. While these hoses offer exceptional pressure capacity, their installation demands careful planning to accommodate the larger space requirements associated with their more conservative bend radius specifications.

Wire-Spiral Hydraulic Hose Bend Radius Analysis

Wire-spiral hydraulic hoses utilize a different reinforcement structure than braided designs, featuring spirally wound wire layers that provide exceptional pressure resistance while maintaining reasonable flexibility. These hoses are particularly valued in high-pressure applications where structural integrity under extreme conditions is paramount. Their unique construction necessitates specific bend radius considerations during installation.

Medium Pressure Spiral Hose Bend Radius Guidelines

Medium pressure spiral hoses, commonly used in construction equipment and industrial machinery, require careful attention to bend radius specifications. As noted in the original document, these hoses typically demand a minimum bend radius of 9 times the outer diameter. This more conservative bend radius factor, compared to braided hoses, reflects the spiral reinforcement structure’s reduced flexibility. The spiral winding pattern creates a semi-rigid reinforcement layer that resists deformation but becomes vulnerable to structural damage when bent too sharply. Maintaining the 9x factor ensures that the spiral reinforcement maintains its structural integrity while accommodating necessary routing configurations.

High Pressure Spiral Hose Installation Considerations

High pressure spiral hoses, designed for extreme operating conditions exceeding 5,000 PSI, require even more conservative bend radius specifications. These hoses typically need a bend radius of 10-12 times the outer diameter, as specified in the original document. This substantial increase reflects the additional reinforcement layers and structural rigidity necessary for extreme pressure containment. The increased bend radius requirement prevents excessive stress on the reinforcement structure that could compromise pressure integrity or lead to catastrophic failure. When installing these hoses, technicians must carefully plan routing paths to accommodate these larger bend radius requirements, often necessitating additional space allocation compared to lower-pressure alternatives.

Comparing Spiral vs. Braided Construction Flexibility

The fundamental structural differences between spiral and braided reinforcement directly impact flexibility characteristics and bend radius requirements. While braided constructions feature interwoven wires that can adjust position slightly during bending, spiral constructions rely on wound wires that must maintain their relative positions. This difference explains why spiral hoses generally require bend radius factors 30-50% larger than their braided counterparts of similar pressure ratings. The trade-off for this reduced flexibility is enhanced pressure stability, improved impulse resistance, and superior performance in high-cycle applications where the consistent reinforcement structure resists fatigue better than braided alternatives.

Material Composition Impact on Bend Radius

The materials used in hydraulic hose construction significantly influence bend radius requirements and overall flexibility characteristics. Each layer of a hydraulic hose—inner tube, reinforcement, and outer cover—contributes to its bending behavior through specific material properties. Understanding these relationships enables more informed hose selection and installation planning.

Inner Tube Materials and Their Flexibility Characteristics

The inner tube material directly impacts a hose’s bend radius through its inherent elasticity and resistance to compression. Nitrile rubber (NBR), the most common inner tube material, offers good flexibility with a moderate temperature range (-40°F to 212°F), allowing for reasonable bend radius factors. Synthetic rubbers like EPDM provide enhanced flexibility, potentially reducing minimum bend radius by 5-10% compared to NBR, but with trade-offs in oil resistance. Polytetrafluoroethylene (PTFE) inner tubes, while excellent for chemical compatibility, exhibit less elasticity and typically increase minimum bend radius requirements by 15-20% compared to rubber alternatives. The inner tube’s wall thickness also plays a crucial role—thicker walls provide better pressure resistance but reduce flexibility, necessitating larger bend radii.

Reinforcement Layer Materials and Bend Performance

Reinforcement materials create the most significant impact on bend radius requirements. Standard carbon steel wire reinforcement offers a balance of strength and flexibility, establishing the baseline bend radius factors discussed in previous sections. Stainless steel reinforcement, while providing superior corrosion resistance, typically increases minimum bend radius by approximately 10% due to its different elastic properties. High-tensile steel wire can maintain similar flexibility while enhancing pressure ratings. Aramid fiber reinforcement (such as Kevlar®) reduces weight and provides excellent strength-to-weight ratio but generally requires larger bend radii due to its lower elasticity compared to steel. The wire diameter and spacing in reinforcement layers also significantly influence flexibility—finer wires with tighter spacing often allow smaller bend radii while maintaining pressure capacity.

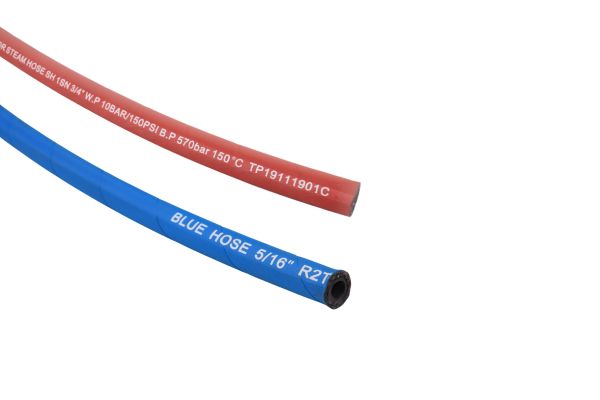

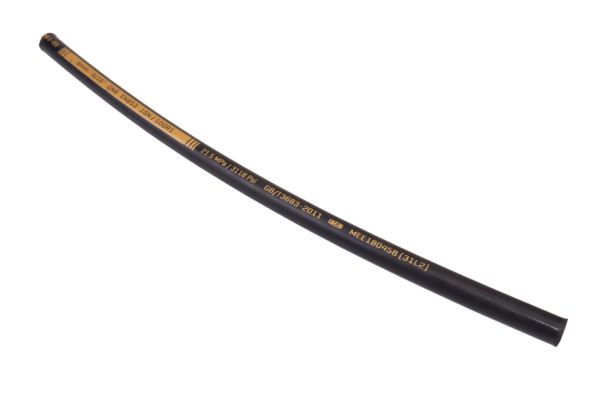

Outer Cover Protection and Environmental Considerations

The outer cover material contributes to overall hose flexibility while providing environmental protection. Standard neoprene covers offer good flexibility and abrasion resistance without significantly impacting bend radius. Polyurethane covers, while providing superior abrasion resistance, can increase stiffness and minimum bend radius requirements by 5-15%, particularly in low-temperature environments. Special-purpose covers, such as MSHA-approved flame-resistant materials or textile-reinforced designs for extreme abrasion resistance, typically increase minimum bend radius requirements due to their enhanced thickness and reduced elasticity. Environmental factors like UV exposure or chemical contact can also alter material properties over time, potentially changing flexibility characteristics and necessitating more conservative bend radius allowances in challenging installation environments.

Temperature Effects on Hydraulic Hose Flexibility

Temperature conditions significantly influence hydraulic hose flexibility and consequently affect minimum bend radius requirements. Both extreme cold and high heat alter material properties throughout the hose structure, necessitating adjustments to installation practices to maintain system integrity and performance across varying operating environments.

Cold Temperature Considerations for Bend Radius

Cold temperatures dramatically reduce elastomer flexibility, causing rubber compounds to stiffen and become less compliant. At temperatures below 0°F (-18°C), standard hydraulic hose bend radius requirements should be increased by approximately 15-20% to compensate for reduced material flexibility. At extreme cold (-40°F/-40°C and below), this adjustment may need to increase to 30-50% depending on specific hose construction. Cold-induced stiffening particularly affects the inner tube and outer cover, creating resistance to bending and increasing the risk of cracking if forced beyond material limitations. For installations in consistently cold environments, specialized low-temperature compounds that maintain flexibility at reduced temperatures should be selected, or heating systems should be incorporated to maintain operational flexibility.

Hot Operating Environment Adaptations

High temperatures create the opposite effect, increasing material pliability but potentially reducing structural integrity. While elevated temperatures (above 150°F/65°C) may temporarily reduce minimum bend radius requirements by 5-10%, this apparent advantage comes with significant risks. Excessive heat softens rubber compounds and can accelerate material degradation, potentially leading to reduced pressure capacity and shortened service life. Additionally, reinforcement layers may experience reduced tensile strength at elevated temperatures, compromising their ability to contain pressure when combined with tight bending. For systems operating at sustained high temperatures, high-temperature-rated hoses with specialized compounds should be selected, and standard bend radius specifications should still be maintained despite the apparent increase in flexibility.

Hydraulic Fittings in Freezing Temperatures

Temperature Fluctuation and Bend Radius Adjustments

Systems experiencing significant temperature fluctuations present unique challenges for bend radius management. Thermal cycling causes dimensional changes as materials expand and contract, potentially creating additional stress on hose structures already under bending loads. In these environments, installations should accommodate the most conservative bend radius requirement across the entire operating temperature range, typically adding 10-15% to the manufacturer’s specified minimum. Additionally, sufficient slack should be incorporated into the installation to accommodate length changes due to thermal expansion and contraction. Proper routing that allows natural movement during thermal cycling prevents stress concentration and extends service life in variable temperature applications.

Pressure Rating Correlation with Bend Specifications

The pressure rating of a hydraulic hose directly correlates with its bend radius requirements, creating a relationship that must be carefully considered during system design and installation. Understanding how different pressure classifications influence flexibility constraints enables more effective hose selection and routing strategies across diverse applications.

Low Pressure Applications (Under 1500 PSI)

Low pressure hydraulic systems, typically operating below 1500 PSI (103 bar), offer the greatest flexibility in terms of bend radius requirements. Hoses designed for these applications generally feature lighter reinforcement structures that allow for smaller bend radius factors—often 4-6 times the outer diameter for braided constructions. This enhanced flexibility facilitates installation in confined spaces and complex routing scenarios. However, even with this relative advantage, exceeding manufacturer specifications remains problematic. Field studies indicate that approximately 20% of premature failures in low-pressure applications stem from excessive bending, despite the more forgiving nature of these hoses. The reduced structural demands at lower pressures can create a false sense of security regarding installation practices, making adherence to proper bend radius specifications particularly important despite the apparent resilience of these components.

Medium Pressure Systems (1500-3000 PSI)

Medium pressure applications, ranging from 1500-3000 PSI (103-207 bar), represent the most common hydraulic system classification and typically utilize standard SAE 100R1 and 100R2 hose constructions. These hoses require more conservative bend radius factors—6-8 times the outer diameter—reflecting their enhanced reinforcement structures. At these pressure levels, the relationship between bend radius and pressure capacity becomes more pronounced, with testing showing that bending below minimum specifications can reduce burst pressure ratings by 15-25%. This reduction creates dangerous margins in systems that may experience pressure spikes during operation. Medium pressure installations must carefully balance space constraints with proper bend radius maintenance, often necessitating custom routing solutions or specialized adapter fittings to achieve compliant installations without compromising system layout.

High Pressure Requirements (Above 3000 PSI)

High pressure hydraulic systems, operating above 3000 PSI (207 bar) and sometimes exceeding 10,000 PSI (690 bar) in specialized applications, demand the most stringent adherence to bend radius specifications. These systems typically employ spiral-reinforced or multiple-braided constructions with bend radius factors of 8-12 times the outer diameter or greater. The relationship between bending and pressure capacity becomes critical at these extreme pressures, with even minor deviations from specified bend radius potentially reducing burst pressure ratings by 30% or more. This reduction eliminates crucial safety margins and significantly increases failure risk. High-pressure installations often require specialized routing strategies, including custom bent tubing sections for tight spaces, multiple fitting connections to navigate complex paths, or redesigned component layouts to accommodate the substantial space requirements of properly routed high-pressure hoses.

Conclusion

As fluid power systems continue to evolve, pressure capabilities continue to increase, and operational requirements become more demanding, the importance of proper bend radius management will grow every day. Armed with these principles, you will be able to design hydraulics that balance performance, reliability, and ease of maintenance, which will ultimately lead to lower operating costs and longer system life.

If you still have any confusion about how to install hydraulic hoses, or need quality hydraulic hoses, contact Topa and we’ll get you set up as soon as possible!

FAQ

What happens if I install a hydraulic hose with a bend radius smaller than recommended?

Installing a hydraulic hose with a bend radius below manufacturer specifications creates several immediate and long-term problems. Even if the hose doesn’t fail immediately, its service life may be reduced by 70-90%, leading to premature replacement and potential catastrophic failure during operation.

How do I measure bend radius correctly in an existing installation?

The most accurate method for measuring bend radius in an existing installation is the centerline approach. Identify the curved section of the hose and visually determine its arc. Measure from the center of this imaginary circle to the centerline of the hose (not the inner or outer edge).

Do different hydraulic fluids affect minimum bend radius requirements?

While hydraulic fluid type doesn’t directly change the manufacturer’s specified minimum bend radius, it can influence how strictly these specifications should be followed.

Can I use protective sleeves to allow tighter bends than specified?

Protective sleeves or bend restrictors cannot compensate for bending a hose beyond its minimum specified radius.

How do vibration and movement affect bend radius requirements?

Dynamic applications with significant vibration or movement typically require more conservative bend radius factors than static installations.

What’s the difference between bend radius and bend diameter, and why does it matter?

Bend radius measures from the center of the bend arc to the centerline of the hose, while bend diameter is twice this value (the full diameter of the imaginary circle formed by the bend).Bend radius measures from the center of the bend arc to the centerline of the hose, while bend diameter is twice this value (the full diameter of the imaginary circle formed by the bend).

May, 2025

Critical Secrets of Hard Pipe Installation That 90% of People Ignore banner

Shocking! Critical Secrets of Hard Pipe Installation That 90% of People Ignore

In manufacturing environments, even minor inefficiencies in fluid transport systems can compound over time, resulting in significant energy waste. For instance, a poorly designed compressed air system with suboptimal pipe sizing can increase energy consumption by up to 30%, directly impacting operational costs and environmental footprint. Similarly, in hydraulic systems, improper pipe installation can lead to pressure losses that diminish machine performance and responsiveness.

Pipe Diameter and Length Optimization

The selection of appropriate pipe diameters and the optimization of pipe lengths represent foundational decisions in any hard pipe installation project. These seemingly simple parameters have profound implications for system performance, energy consumption, and operational costs over the entire lifecycle of the installation.

Scientific Selection of Pipe Diameters Based on Flow Characteristics

Pipe diameter selection must be approached as a scientific calculation rather than an intuitive guess. The relationship between pipe diameter and fluid flow follows complex fluid dynamic principles governed by the Reynolds number, which characterizes whether flow will be laminar or turbulent. For most industrial applications, the goal is to maintain flow velocities within specific ranges that balance efficiency and practicality.

For hydraulic systems, recommended flow velocities typically range from 3-5 m/s for pressure lines and 1-2 m/s for return lines. Exceeding these parameters introduces excessive friction losses that manifest as heat generation and pressure drops. In compressed air systems, maintaining velocities below 6 m/s in main distribution lines and 15 m/s in branch lines prevents excessive pressure losses while ensuring economical pipe sizing.

The Darcy-Weisbach equation provides a mathematical framework for calculating pressure loss due to friction:

Δp = λ × (L/D) × (ρ × v²/2)

Where:

Δp represents pressure loss
λ is the friction factor
L is pipe length
D is pipe diameter
ρ is fluid density
v is flow velocity

This equation clearly demonstrates how undersized pipes (small D) dramatically increase pressure losses, requiring more energy input to maintain desired flow rates.

The Relationship Between Pipe Length and System Efficiency

While pipe length is often dictated by the physical layout of equipment, optimizing routing to minimize unnecessary runs yields substantial efficiency benefits. Each meter of additional piping introduces friction losses that accumulate throughout the system. The principle of “shortest path possible” should guide installation planning, with careful consideration of both horizontal and vertical routing.

In practical terms, a 10% reduction in total pipe length can yield approximately 10% reduction in friction-related pressure losses, translating directly to energy savings. However, the shortest geometric path is not always optimal when considering maintenance access requirements, thermal expansion accommodation, and vibration isolation needs.

When analyzing system layouts, engineers should employ the concept of “equivalent pipe length” to account for the additional resistance introduced by fittings, valves, and bends. For instance, a standard 90° elbow can introduce resistance equivalent to 30-60 pipe diameters of straight pipe, highlighting why seemingly minor routing decisions have significant performance implications.

Calculating Optimal Flow Rates to Minimize Energy Loss

The relationship between flow rate, pipe diameter, and energy consumption follows a cubic function—doubling the flow rate through the same diameter pipe increases pressure drop and pumping power requirements by approximately eight times. This non-linear relationship makes proper sizing critical for energy-efficient operation.

For systems with variable flow requirements, engineers must consider both peak demand and typical operating conditions. Sizing pipes solely for maximum flow scenarios often results in oversized systems that operate inefficiently during normal conditions. Conversely, undersizing to save on initial material costs invariably leads to excessive operational expenses through increased pumping energy requirements.

Flexible Connection Design Principles

In the realm of hard pipe installation, the implementation of flexible connection designs stands as a critical yet frequently overlooked aspect. These design elements accommodate the inevitable physical forces that act upon piping systems during operation, preventing premature failures and extending system longevity.

Understanding Thermal Expansion and Contraction Forces

All materials expand when heated and contract when cooled—a fundamental physical property that creates significant challenges in piping systems. In industrial environments where temperature fluctuations are common, rigid pipe installations experience tremendous stress as thermal expansion creates forces that can exceed several tons per square inch. These forces must be accommodated through deliberate design rather than resisted through rigid mounting.

The coefficient of thermal expansion varies by material: steel expands approximately 11.7 × 10^-6 per °C, stainless steel at 17.3 × 10^-6 per °C, and aluminum at 23.1 × 10^-6 per °C. For perspective, a 10-meter steel pipe experiencing a 50°C temperature increase will expand by approximately 5.85mm—a seemingly small value that generates enormous force if constrained.

Without proper accommodation, these forces concentrate at the weakest points in the system, typically at connections, bends, or material transitions. Over time, this stress cycling leads to fatigue failure, leaks, and catastrophic system breakdowns that interrupt operations and create safety hazards.

Implementation of Slack Bend Structures

The incorporation of slack bend structures represents one of the most effective methods for accommodating thermal movement in piping systems. These intentional bends, sometimes called expansion loops or offsets, provide the necessary flexibility to absorb movement without creating excessive stress on components.

When designing slack bends, several key parameters must be considered:

The anticipated thermal movement based on temperature range and pipe material
The available space for implementing the bend structure
The pressure rating of the system, which influences the acceptable bend radius
The structural support requirements to prevent unintended movement

The optimal slack bend design balances flexibility with space efficiency. For systems with severe space constraints, specialized expansion joints or bellows may substitute for geometric bends, though these components typically introduce additional maintenance requirements and potential failure points.

Beyond thermal considerations, slack bends also facilitate easier assembly and disassembly during maintenance operations. By incorporating strategic flexibility into the design, technicians can disconnect sections without requiring extensive disassembly of adjacent components, significantly reducing maintenance downtime and associated costs.

Pipe Bending Standards and Best Practices

The art and science of pipe bending represents a critical aspect of hard pipe installation that directly impacts system performance, fluid flow efficiency, and long-term reliability. Proper bending techniques prevent flow restrictions, minimize pressure drops, and ensure structural integrity throughout the system’s operational life.

Minimum Radius Requirements for Different Materials

The minimum bending radius for hard pipes is not arbitrary but rather a carefully calculated parameter based on material properties and pipe dimensions. The industry standard minimum bending radius should be no less than 2.5 times the outer diameter of the pipe. This requirement exists to prevent material deformation that compromises structural integrity and creates flow restrictions.

Different materials exhibit varying degrees of ductility and therefore have specific bending limitations:

For carbon steel pipes, the minimum bending radius typically ranges from 2.5 to 3 times the outer diameter, depending on wall thickness and grade. Exceeding these limits results in thinning of the pipe wall on the outside radius and wrinkling on the inside radius, both of which compromise pressure ratings and create stress concentration points.

Stainless steel pipes, while generally more ductile than carbon steel, still require careful bending practices. The minimum radius for austenitic stainless steels (300 series) is approximately 2.5 times the outer diameter, while duplex stainless steels may require up to 3.5 times the outer diameter due to their higher strength and lower ductility.

Copper and copper alloy pipes allow tighter bends, with minimum radii as low as 2 times the outer diameter for annealed copper. However, work hardening during the bending process must be considered, as it can lead to cracking if multiple bends are made in close proximity.

Aluminum pipes typically require larger bending radii of 3 to 4 times the outer diameter due to their tendency to crack or wrinkle during forming operations. Special attention must be paid to heat-treated aluminum alloys, as bending can alter their mechanical properties.

Straight Section Requirements at Pipe Ends

A frequently overlooked aspect of pipe bending is the necessity of maintaining straight sections at pipe ends, particularly where connections will be made. As specified in the original document, the straight section length should be no less than twice the height of the pipe fitting nut. This requirement serves several critical functions in the overall system integrity.

First, straight end sections ensure proper seating of fittings and connections. When a fitting is installed on a curved section of pipe, the uneven stress distribution can prevent proper sealing, leading to leaks even when proper torque is applied. Additionally, the thread engagement may be compromised, reducing the pressure rating of the connection.

Second, straight sections facilitate proper alignment during installation. Pipes that are bent too close to the connection point create assembly challenges and often result in misaligned connections that introduce additional stress into the system. This misalignment accelerates wear on seals and can lead to premature failure.

Third, straight sections provide a stable area for pipe clamps and supports, which are essential for vibration control and load distribution. Without adequate straight sections, supports may be placed on curved portions of the pipe, creating point loads that can deform the pipe over time.

For high-pressure applications, the straight section requirements may increase to three or four times the fitting height to ensure adequate pressure containment and connection integrity. Similarly, for systems subject to thermal cycling or vibration, extended straight sections provide additional stability and stress distribution.

Vibration Suppression Solutions

Vibration in hard pipe systems represents one of the most insidious threats to system integrity and operational efficiency. Left unaddressed, vibration can accelerate component wear, create noise pollution, compromise connection integrity, and ultimately lead to catastrophic failures. Implementing effective vibration suppression solutions is therefore essential for any professional pipe installation.

Identifying Vibration Sources and Propagation Paths

Before implementing suppression measures, engineers must first understand the sources and transmission mechanisms of vibration within piping systems. Vibration typically originates from several common sources:

Reciprocating equipment, such as compressors and pumps, generates pulsations that travel through connected piping. These mechanical vibrations occur at frequencies related to the equipment’s operating speed and can be particularly damaging when they coincide with the natural frequency of the piping system, creating resonance conditions that amplify vibration amplitude.

Fluid-induced vibration occurs when turbulent flow creates pressure fluctuations within the pipe. This phenomenon is particularly prevalent in areas of flow disturbance such as valves, elbows, and diameter transitions. The resulting vibration energy can travel significant distances through the piping network, affecting components far from the original source.

External vibration from nearby machinery or processes can transfer into piping systems through shared mounting points or structural connections. Even seemingly minor external vibrations can become problematic when they excite resonant frequencies within the piping system.

Thermal cycling creates a form of low-frequency vibration as pipes expand and contract with temperature changes. While not typically considered vibration in the traditional sense, this movement creates similar wear patterns and stress concentrations if not properly accommodated.

Vibration propagation follows complex paths through both the fluid medium and the physical pipe structure. Structural-borne vibration travels through the pipe material and supporting structures, while fluid-borne vibration travels through the contained medium. Effective suppression strategies must address both transmission mechanisms.

Strategic Placement of Pipe Clamps and Supports

The strategic placement of pipe clamps and supports represents the foundation of effective vibration control. These elements serve dual purposes: they prevent excessive pipe movement while simultaneously isolating the pipe from external vibration sources.

The spacing of supports follows scientific principles rather than arbitrary guidelines. For horizontal runs, maximum support spacing can be calculated based on pipe diameter, material, and fluid weight to prevent sagging and associated stress concentrations. As a general rule, support spacing should not exceed 10-12 feet for 2-inch steel pipe, with proportionally closer spacing for larger diameters due to increased weight.

Critical locations requiring dedicated support include:

Both ends of straight sections adjacent to bends, where vibration tends to concentrate due to directional changes in fluid flow
Connection points between hard pipes and flexible hoses, which represent transition points with different vibration characteristics
Near heavy components such as valves or instrumentation, which create localized mass concentrations
At branch connections, where flow disturbances create turbulence and associated vibration

The type of support is equally important as its location. Rigid clamps should be used sparingly and primarily at fixed points where absolute position must be maintained. For most applications, vibration-isolating clamps incorporating elastomeric or composite materials provide superior performance by preventing the transmission of vibration between the pipe and supporting structure.

For systems operating at elevated temperatures, supports must accommodate thermal expansion while still providing vibration control. Sliding supports with low-friction interfaces allow necessary movement while maintaining position control. Spring hangers provide another solution for thermal movement accommodation while still restricting undesirable vibration.

Flow Resistance Optimization Design

The optimization of flow resistance within hard pipe systems represents a critical yet frequently overlooked aspect of installation design. Every bend, junction, and transition in a piping system introduces resistance that must be overcome through increased pumping power, directly impacting operational costs and system efficiency.

The Hidden Cost of 90° Bends in Piping Systems

Traditional 90° bends represent one of the most significant sources of flow resistance in piping systems. These sharp directional changes force fluid to rapidly alter course, creating turbulence, separation zones, and significant pressure drops. The physics behind this phenomenon relates to the conservation of momentum—fluid particles traveling in one direction resist changing direction, and overcoming this resistance requires energy.

The pressure loss coefficient (K-factor) for a standard 90° elbow typically ranges from 0.75 to 1.5, depending on the specific geometry and surface roughness. This means that a single 90° bend can introduce resistance equivalent to 30-60 pipe diameters of straight pipe. In systems with multiple bends, these losses compound dramatically, often accounting for 40-60% of the total system pressure drop.

Beyond energy considerations, sharp bends create secondary flow patterns that accelerate erosion, particularly in systems carrying particulate matter or in two-phase flow conditions. This erosion concentrates at the outer radius of the bend, gradually thinning the pipe wall and creating potential failure points. In corrosive environments, these turbulent zones also experience accelerated chemical attack due to enhanced mass transfer at the pipe wall.

The financial implications of excessive 90° bends become apparent when considering that each 1 psi (0.07 bar) of unnecessary pressure drop in a typical industrial compressed air system costs approximately $1,500-2,500 annually in additional energy consumption per 100 CFM of flow. For hydraulic systems, where pressures are significantly higher, the energy penalties become even more substantial.

Tube Flow Resistance Optimization Design

Implementing Dual 45° Bend Combinations

The strategic replacement of 90° bends with dual 45° bend combinations, represents one of the most cost-effective methods for reducing flow resistance. This configuration allows fluid to change direction more gradually, reducing turbulence and associated pressure losses. The pressure loss coefficient for this arrangement typically ranges from 0.4 to 0.6—approximately 40-60% lower than a standard 90° elbow.

When implementing dual 45° bend combinations, several design considerations maximize their effectiveness:

The straight section between bends should be at least 2-3 pipe diameters in length to allow flow stabilization between directional changes.
Consistent bend radius should be maintained throughout the system to ensure predictable flow characteristics.
Proper alignment of the bends is critical—misalignment can create additional turbulence that negates the benefits of the dual-bend configuration.
Support structures must accommodate the more complex geometry while still providing adequate vibration control.

For systems with severe space constraints where dual 45° arrangements cannot be accommodated, specialized flow-optimized 90° elbows with internal guide vanes represent an alternative solution. These components direct flow through the bend in a more controlled manner, reducing separation and turbulence while maintaining a compact footprint.

Conclusion

The “shocking secrets” of hard pipe installation are, in reality, not secrets at all—they are established engineering principles that have been validated through decades of industrial experience. The true shock lies in how frequently these fundamental practices are overlooked or compromised in the pursuit of short-term convenience or cost savings, resulting in systems that underperform, consume excessive energy, require frequent maintenance, and ultimately fail prematurely.

If you still have any doubts or want to place an order, contact Topa and we will solve your problem immediately!

FAQ

What is the single most important factor in hard pipe installation that impacts system performance?

While all aspects of installation are interconnected, proper pipe diameter selection likely has the most significant impact on system performance.

How much can proper pipe installation practices reduce energy consumption?

Studies consistently show that optimized pipe installations can reduce pumping energy requirements by 15-30% compared to systems designed with minimal consideration for flow efficiency.

Are flexible connections always better than rigid installations?

Flexible connections are not universally superior but are essential in specific applications—particularly where thermal expansion, vibration isolation, or maintenance accessibility are concerns.

How often should pipe supports and clamps be installed?

Support spacing depends on pipe diameter, material, fluid weight, and operating conditions.

What is the most common cause of premature pipe system failures?

While many factors contribute to premature failures, improper accommodation of thermal expansion and contraction forces represents the most common root cause.

How can I justify the higher cost of quality pipe installation to management?

The most effective justification comes through comprehensive life cycle cost analysis rather than focusing solely on initial installation expenses.

May, 2025

Engineer’s Guide: 7 Hydraulic Cylinder Design Red Flags

Hydraulic cylinder, as a modern industrial equipment in the indispensable power core, its performance is directly related to the performance of the whole set of equipment operating efficiency and safety. It is like a mechanical system of “muscle”, the hydraulic energy is accurately converted into a powerful linear reciprocating or oscillating motion. However, it is this seemingly mature components, in the design process but all over the “minefield”. Any negligence on the part of engineers, any seemingly minor design flaws, may be infinitely enlarged in the actual application, leading to substandard equipment performance, frequent failures, or triggering catastrophic equipment damage, production stagnation, and even jeopardize the safety of personnel.

Taboo 1: Ignoring Working Conditions – Blind Parameter Selection

This is one of the most common and fatal mistakes in hydraulic cylinder design. Many engineers rely on past experience or incomplete customer input to make quick decisions on parameters, laying the groundwork for a chain of future problems. A hydraulic cylinder does not function in isolation — it operates under specific equipment and working conditions. Failing to conduct a thorough investigation into its environment, load characteristics, and motion requirements is like “feeling an elephant in the dark.”

Risks of Inadequate Load Characteristic Analysis (Static/Dynamic/Impact)

The loads a hydraulic cylinder faces during operation are often complex and variable. Are they steady and static, or frequently changing and dynamic? Are there sudden impact loads? These factors directly influence the selection of cylinder bore, rod diameter, and the verification of structural strength. Designing based only on a “rated thrust” value while ignoring the possibility of impact forces — which may be several times higher during startup, stopping, or abrupt load changes — can easily lead to piston rod bending, cylinder tube expansion, or even failure of connecting components. For instance, in a punching press application, the impact force at the moment of operation is much greater than during smooth extension.

Chain Reactions from Mismatched Speed and Stroke

Cylinder speed and effective stroke are two other critical parameters. If high-speed operation is required but the system’s oil supply capacity, port size, and cushioning needs are not adequately considered, excessive pressure losses, unstable motion, excessive noise, or failure to reach the target speed due to insufficient flow may occur. Conversely, for low-speed requirements, using large-diameter ports and valve groups may reduce control precision and unnecessarily raise costs. On the stroke side, overlooking installation space, buckling risks for long-stroke cylinders, or the need for end-of-stroke cushioning and limit stops can result in installation challenges, operational interference, impact damage, or instability.

Fatal Impacts of Environmental Factors

The working environment has a critical impact on the cylinder’s service life and reliability. High temperatures can accelerate seal aging, reduce hydraulic oil viscosity, and even affect the mechanical properties of metal components. Low temperatures may cause seals to harden and hydraulic oil to become too viscous. In dusty environments like mining sites or cement plants, if effective dust protection (e.g., wiper seals, rod covers) is not in place, abrasive particles can easily enter the cylinder, scratch the piston rod and cylinder bore, damage seals, and lead to serious internal or external leakage. Corrosive environments, such as chemical plants or offshore platforms, place strict demands on the corrosion resistance of cylinder materials, piston rods, and seals. Ignoring these factors and using generic cylinders often results in premature failure and frequent maintenance.

Taboo 2: Improper Material Selection – Compromised Strength and Durability

Material selection is the foundation of a hydraulic cylinder’s load-bearing capacity, service life, and environmental adaptability. If the investigation of working conditions is the “diagnosis,” then material selection is the “prescription.” Once the wrong materials are chosen, even the most sophisticated structural design cannot ensure stable and reliable performance under harsh conditions. Strength and durability will be severely compromised, potentially leading to safety incidents.

Risk of Instability Due to Insufficient Strength in Cylinder Tube and Piston Rod Materials

The cylinder tube and piston rod are the primary load-bearing components of a hydraulic cylinder. The tube must withstand high internal pressure, so the selected material must meet the required yield strength and tensile strength under design conditions, along with an appropriate safety factor. If the cylinder tube’s strength is insufficient, it may undergo permanent plastic deformation (bulging) under pressure, leading to increased internal leakage, reduced efficiency, or, in extreme cases, catastrophic rupture.

The piston rod mainly bears axial compression or tension. Its material must not only be strong but also offer adequate stability against buckling under compression. This is especially critical for long-stroke cylinders with relatively small rod diameters. If the rod material has a low elastic modulus or insufficient yield strength, it is highly susceptible to bending and instability under load, resulting in jamming, seal damage, or rod fracture.

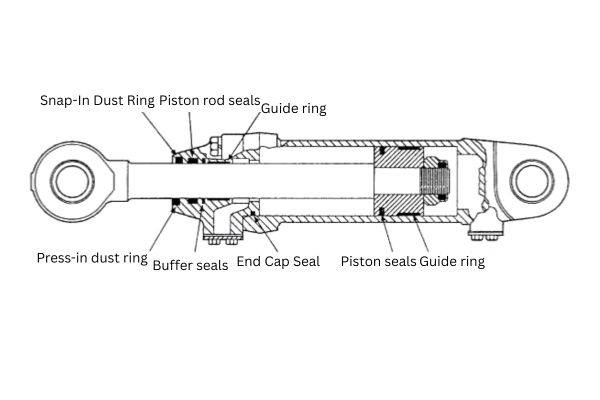

Seal Material Incompatibility with Hydraulic Fluids and Operating Conditions

Seals may seem fragile compared to metal components, but they are vital to cylinder performance. Seal materials must be fully compatible with the hydraulic fluid (including oil type and additives), operating temperature range, motion speed, and external environment (such as exposure to chemicals or abrasives). Incompatibility can lead to swelling, hardening, cracking, or chemical degradation of the seals, causing rapid failure.

For instance, Nitrile rubber (NBR) seals may deteriorate quickly when exposed to certain synthetic hydraulic fluids or high-temperature environments. Fluorocarbon rubber (FKM/Viton®) offers excellent resistance to heat and oils but can become brittle in cold temperatures and may degrade when exposed to specific media such as amines. Choosing “universal” seal materials without assessing compatibility is a common reason for early hydraulic cylinder leakage.

Overlooking Special Material Requirements in Harsh Environments

Beyond basic strength and wear resistance, special working conditions demand more stringent material performance. In the chemical industry, hydraulic cylinders may come into contact with corrosive substances like strong acids, alkalis, or organic solvents. In such cases, standard carbon steel or low-alloy steel is inadequate. Materials such as stainless steel (e.g., 316L, duplex stainless), Hastelloy, or Monel alloys may be required for cylinder tubes, piston rods, and fittings to withstand corrosion.

Surface treatments for piston rods are also critical. While hard chrome plating is common, more corrosion- and wear-resistant options like nickel-based alloy coatings or ceramic coatings may be necessary in extreme environments. Ignoring these requirements often results in premature failure, frequent maintenance, and elevated replacement costs.

Component	Primary Failure Mode	Safety Factor Type	Normal Conditions (n<sub>s</sub>)	Impact/Variable Load Conditions (n<sub>s</sub>)	Special/Critical Conditions (n<sub>s</sub>)	Design Basis (Typically Based on)	Remarks
Cylinder Barrel	Yielding, Burst	Strength	2.0 ~ 3.0	3.0 ~ 5.0	> 5.0	Material Yield Strength (σ<sub>s</sub>)	Wall thickness should account for pressure pulsation and fatigue
Cylinder Barrel	Fatigue Crack Propagation	Fatigue	1.5 ~ 2.5 (vs. fatigue limit)	2.0 ~ 3.5 (vs. fatigue limit)	> 3.5	Material Fatigue Limit (σ<sub>-1</sub>)	Detailed fatigue analysis required
Piston Rod	Yielding, Fracture (Tension/Compression)	Strength	2.0 ~ 3.5	3.0 ~ 5.0	> 5.0	Material Yield Strength (σ<sub>s</sub>)	Buckling analysis required for compression members
	Buckling (Compression Rod)	Stability	2.5 ~ 4.0	3.0 ~ 5.0	> 5.0	Critical Buckling Load (P<sub>cr</sub>)	Especially important for slender rods
	Fatigue Fracture	Fatigue	1.8 ~ 3.0 (vs. fatigue limit)	2.5 ~ 4.0 (vs. fatigue limit)	> 4.0	Material Fatigue Limit (σ<sub>-1</sub>)	Pay attention to stress concentration at rod ends and cross-section changes
End Cap / Cylinder Bottom	Yielding, Fracture	Strength	2.0 ~ 3.5	3.0 ~ 5.0	> 5.0	Material Yield Strength (σ<sub>s</sub>)	FEA analysis recommended for complex geometries
Tie Rods / Bolts	Tension Failure, Shear Failure	Strength	2.5 ~ 4.0	3.5 ~ 6.0	> 6.0	Material Yield Strength (σ<sub>s</sub>)	Consider preload and dynamic load impacts
Tie Rods / Bolts	Fatigue Fracture	Fatigue	2.0 ~ 3.5 (vs. fatigue limit)	3.0 ~ 5.0 (vs. fatigue limit)	> 5.0	Material Fatigue Limit (σ<sub>-1</sub>)	Thread root is a typical fatigue weak point
Clevis / Pin Shaft	Shear, Bearing, Bending	Strength	2.5 ~ 4.0	3.0 ~ 5.0	> 5.0	Material Yield Strength (σ<sub>s</sub>)

Note: This table is a general recommendation, the specific value of the safety factor should be combined with the relevant standards, the severity of the working conditions, the severity of the consequences of failure, material reliability, and the internal norms of the enterprise to determine the synthesis.

Taboo 3: Structural Design Flaws – Hidden Hazards from Stress Concentration

The structural design of a hydraulic cylinder is where material properties are translated into actual load-bearing performance. Any flaws in the design—especially at critical locations involving improper shapes, abrupt dimensional transitions, or poor connection methods—can lead to stress concentration. This is like a tiny ant hole in a strong dam: it may appear minor but can eventually cause fatigue cracks or insufficient static strength, posing a serious threat to equipment safety.

Structural Weaknesses in Critical Areas

Key structural weak points often lie in the load transmission zones, such as the rod end connections (e.g., threads, clevises, and eye mounts) and the junctions between the cylinder barrel and end caps (e.g., flange connections, threaded joints, tie-rod assemblies). These areas are subject to high stress and are inherently vulnerable.

For instance, the root of a threaded rod end, the edge of a clevis pin hole, or the area around flange bolt holes are all classic stress concentration zones. If the transition radii are too small or absent, the wall thickness is insufficient, or the fasteners (like bolts) are poorly selected or arranged, localized stress can significantly exceed the average design stress. Under dynamic or impact loads, these stress points can become the origin of fatigue cracks that eventually lead to fractures and system failure.

Risks from Poorly Matched Welding Design and Techniques

Welding is a common method used in cylinder fabrication—for example, welding ports to the barrel or welding certain end caps to the cylinder. However, welded joints are inherently discontinuous and prone to stress concentration and microstructural changes. If the welded structure is poorly designed—such as placing the weld seam in a high-stress zone, using undersized weld beads, or neglecting weld deformation and residual stress—the strength and fatigue life of the joint are greatly reduced.

The situation becomes even riskier if the selected materials have poor weldability or if the welding process parameters are not well controlled (e.g., inadequate preheating, improper post-weld heat treatment). Common weld defects such as cracks, lack of fusion, porosity, and slag inclusion can propagate quickly under service loads, leading to catastrophic failure.

Taboo 4: Insufficient Guidance and Support – Piston Rod “Eccentric Instability”

The guiding system of a hydraulic cylinder plays a critical role in ensuring the piston rod moves accurately and smoothly within the cylinder barrel while also bearing any side loads that may act on the rod. When guidance and support are inadequate, the piston rod can become misaligned during movement, leading to uneven wear, premature seal failure due to one-sided loading, and in severe cases, buckling under compressive force during the return stroke — a failure that can be catastrophic.

Improper Guide Bushing Length and Material Selection

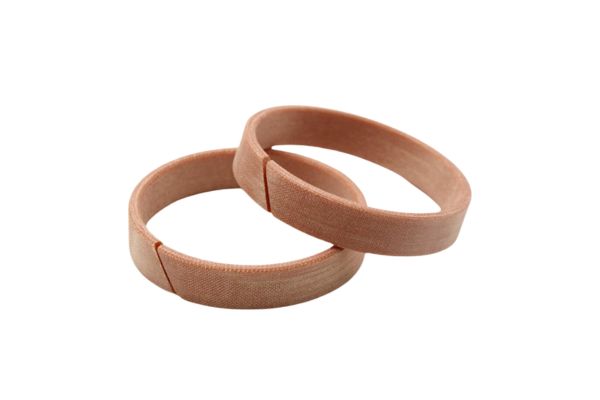

The guide bushing — typically installed in the rod-end cap — is the main component responsible for guiding the piston rod. Its length (guide length) and material are key design parameters. If the guide length is too short, the piston rod will have poor alignment accuracy and reduced resistance to overturning moments, making it prone to wobbling under side loads. Generally, the ratio of guide length to piston rod diameter should meet specific design standards and be verified based on stroke length and applied forces.

Material selection for the guide bushing is equally important. The bushing must offer excellent wear resistance, a low coefficient of friction, and sufficient strength and rigidity. Common materials include bronze, cast iron, and filled PTFE (polytetrafluoroethylene). If the selected material lacks wear resistance or the fit between the bushing and rod is too loose, guiding accuracy will suffer, leading to premature wear and reduced service life.

Ignoring the Need for Intermediate Support in Long-Stroke Cylinders

In hydraulic cylinders with exceptionally long strokes — where the stroke-to-rod diameter ratio exceeds a critical threshold (often 10:1 or more, depending on operating conditions) — relying solely on the rod-end guide bushing is often insufficient to maintain stability throughout the entire stroke. When the piston rod is fully extended, its own weight and any slight initial curvature can lead to instability under compressive loads.

To mitigate this risk, the potential for buckling must be carefully evaluated during design. If necessary, intermediate support structures should be incorporated. These may be fixed supports (where space permits) or dynamic supports like floating rings that move with the rod. Overlooking this requirement and extending the stroke length without adding proper support is a common cause of instability and damage in long-stroke cylinders.

Neglecting Side Loads – The Hidden Culprit Behind Early Wear and Instability

In theory, a hydraulic cylinder’s piston rod should only experience axial loads. In practice, however, due to installation misalignment, deviations in load paths, or the structural characteristics of the equipment, piston rods often endure some degree of side loading. If these side loads are underestimated or ignored during the design phase — without verifying the load capacity of guide components (like guide bushings and wear rings) or applying measures to reduce lateral forces (e.g., using floating couplings or spherical bearings) — the result can be destructive.

Side loads generate abnormal contact stresses and wear between the piston rod, guide bushing, piston, and the cylinder’s internal surface. Over time, this not only causes leakage but also increases the clearance between components, further reducing rod stability. Ultimately, under the combined effect of axial and lateral forces, the rod may buckle and fail, posing serious reliability and safety issues.

Taboo 5: Poor Cushioning Design – When Impact Hits “Metal to Metal”

When a hydraulic cylinder drives a load at high speed and reaches the end of its stroke without effective deceleration measures, the piston collides directly with the end cap. This metal-to-metal impact creates intense shock and noise. Such uncontrolled collisions not only damage the cylinder itself (including the end cap, piston, and seals) but may also transmit destructive force to the entire machine structure. The result: reduced service life, potential system failures, and serious safety hazards.

Risks of Missing or Inadequate Cushioning

One of the most common — and dangerous — mistakes is omitting a cushioning mechanism altogether in cylinders used for high-speed motion or with high-load inertia. This is often found in low-cost systems or designs by less experienced engineers. The consequences are immediate and severe: extreme mechanical and hydraulic shock at the stroke end, loud noise, violent vibration, and long-term damage.

Common effects include:

Loose mounting bolts;
Fatigue in the piston rod-to-piston connection;
Damaged seals due to repeated shock;
Cracks in the end cap or cylinder body.

A less obvious but equally harmful issue is insufficient cushioning. Even if a cushion is included, it may not be capable of absorbing the kinetic energy of the moving parts. This often stems from undersized cushion chambers, improperly sized orifices, or miscalculated inertia and terminal speed. In these cases, the piston still slams into the end cap, just slightly softened — leading to progressive wear and premature failure.

Mismatched Cushioning Types: Fixed vs. Adjustable Cushions

Hydraulic cylinders typically use two types of cushioning: fixed and adjustable.

Fixed cushions rely on a fixed orifice or tapered plunger (on the piston) entering a cushion chamber in the end cap. These designs are simple and cost-effective but offer only a fixed damping profile. That means they can’t adapt to changing operating conditions, such as variations in load or speed. When the application involves fluctuating dynamics, fixed cushions can either underperform (causing overshooting) or over-dampen (causing sluggish stops and longer cycle times).
Adjustable cushions, on the other hand, incorporate a throttling valve to fine-tune the resistance during the cushioning phase. This allows the cylinder to better accommodate a range of conditions, delivering smoother and safer deceleration tailored to different speeds or load masses.

Failure to match the cushion type with the actual working environment is a frequent oversight. For instance, choosing a fixed cushion in a system with frequent load or speed changes may lead to unstable operation and poor energy absorption at stroke ends. To achieve optimal performance and safety, the cushion design must reflect both the expected dynamics and any variability in the application.

Taboo 6: Missing or Improper Air Bleed Design – Trapped Air Compromises System Performance

Air trapped inside a hydraulic system is a hidden menace. It can originate from dissolved gases in the hydraulic fluid, air drawn in through leaks, or residual air left in the lines after maintenance. If air accumulates inside a hydraulic cylinder — the key actuator in the system — and is not effectively expelled, it can lead to a host of operational problems. These include erratic motion, inconsistent speed, poor positioning accuracy, increased noise and vibration, accelerated oil oxidation, and in extreme cases, seal failure due to the “diesel effect.”

Hazards of Unpurged Air Inside the Cylinder

Air is significantly more compressible than hydraulic oil. When gas bubbles are present in the cylinder chamber, they compress under pressure. As the system pressure changes or reverses direction, these bubbles expand again. This compress-and-expand cycle creates fluctuations in the effective working volume of the cylinder, disrupting smooth piston motion. The result? Jerky movements, slow-speed crawling, and unstable stroke transitions.

In addition, when bubbles collapse within the fluid or pass through high-pressure orifices, they produce high-pitched noise and vibration. Over time, the presence of air reduces the stiffness of the hydraulic system, causing slower response and reduced control precision — unacceptable in applications requiring smooth operation or accurate positioning. For these precision-critical systems, internal air must be eliminated completely.

Common Mistakes in Air Bleed Valve Placement and Design

Even when designers understand the importance of venting air, mistakes in the positioning and selection of bleed valves are common. The most critical factor is placement. Air naturally collects at high points or stagnant corners of the hydraulic flow path. If air bleed valves are not located at these points, their effectiveness is severely compromised.

For horizontally mounted cylinders, air bleed valves should be installed near the upper portions of both ends of the barrel.
For vertically mounted cylinders, they should be placed on the top end cap or the highest point on the cylinder barrel.

Poor positioning leads to incomplete air evacuation, resulting in persistent system instability.

The type of bleed valve also matters:

Screw plug-type valves are inexpensive but inconvenient to operate and prone to leakage.
Manual bleed valves allow controlled air removal but require manual intervention, which isn’t ideal for systems needing frequent maintenance.
Automatic air bleed valves offer convenience but come at a higher cost and may suffer from limited lifespan or reduced reliability in dirty or high-pressure environments.

Taboo 7: Inadequate Overpressure Protection – When the System “Runs Wild”

Hydraulic overpressure—also known as pressure surge or hydraulic shock—is a dangerous, high-intensity spike in system pressure caused by sudden changes in flow. These events often occur when valves close abruptly, cylinders reach the end of their stroke at high speeds, or external shocks affect the system. If not properly managed, these pressure peaks can far exceed normal working limits within milliseconds. The consequences range from damaged gauges and sensors to ruptured hoses, burst cylinders, and catastrophic failure that poses serious safety risks.

Causes and Consequences of Hydraulic Overpressure

Hydraulic surges typically stem from the following scenarios:

Sudden Valve Closure or Direction Change When a directional or shut-off valve controlling a hydraulic cylinder closes too quickly, high-velocity oil flow is abruptly halted. The fluid’s kinetic energy transforms into a pressure spike. This phenomenon is especially severe in systems with long piping and high flow rates.
Cylinders Hitting the Stroke End at High Speed If a hydraulic cylinder reaches the end of its stroke rapidly, and the cushioning design is inadequate or fails, the piston’s momentum transfers directly to the hydraulic fluid, creating an extreme, momentary pressure surge inside the chamber.
External Impact Loads When the cylinder’s load experiences a sudden jolt—such as an excavator bucket hitting solid rock—the reactive force is transmitted back into the cylinder, causing a sharp pressure rise.
System Resonance Under certain conditions, the hydraulic system’s natural frequency may align with pulsating sources like pumps or periodic load changes. This resonance amplifies pressure fluctuations, creating repeated surges.

The consequences of these surges are far-reaching: They can damage the cylinder structure, burst hoses, fatigue seals, destroy sensors, or even eject end caps violently. Beyond mechanical damage, surges lead to fluid leaks, shortened component lifespan, reduced system efficiency, and dangerous, chain-reaction failures.

Cylinder Pressure Design and Testing Shortcomings

As a pressure-bearing component, the hydraulic cylinder must be capable of withstanding not only its rated operating pressure but also occasional pressure peaks. This includes:

Cylinder barrel, end caps, piston rod, and connection bolts—all must be evaluated for burst pressure conditions, not just normal operating pressure.
Safety margins must be included in the material selection, wall thickness, and mechanical design.

However, in many designs, the focus remains on static pressure ratings. Engineers may underestimate surge peaks or use overly conservative designs that fail under real-world loads. Inadequate pressure ratings, weak materials, or thin wall sections are common failure triggers.

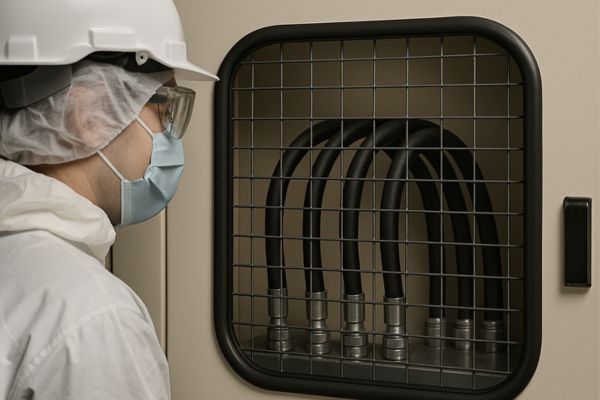

Additionally, pressure and burst testing during manufacturing is critical. If testing pressure is too low or the method is not standardized, defects in design or assembly may remain hidden until the product is in service—when failure becomes dangerous and costly.

Conclusion

We encourage you to carefully review each design taboo and recommendation discussed in this article. Reflect on your own project experience: Which of these issues have you encountered before? Which risks should you be especially vigilant about in future applications?

If you found this guide helpful for yourself or your engineering team, we invite you to share it. Should you have any custom hydraulic cylinder requirements, feel free to contact us anytime. Our expert team is ready to provide you with tailored technical support and reliable solutions.

FAQ

What causes overpressure in a hydraulic cylinder?

Sudden valve closure, cylinder end impact, external shocks, or system resonance can all cause pressure surges.

Why is cushioning necessary at the end of a cylinder stroke?

It slows down the piston to prevent metal-to-metal impact, reducing damage and extending system life.

How can trapped air affect hydraulic cylinder performance?

Air causes erratic motion, increased noise, reduced accuracy, and slower response due to its compressibility.

What’s the risk of poor material selection in hydraulic cylinders?

It can lead to rod buckling, barrel deformation, seal failure, or even catastrophic rupture under high loads.

Why is guide support important for long-stroke cylinders?

Insufficient support can cause rod deflection, uneven wear, seal damage, and buckling under compression.

How can I protect my cylinder from pressure spikes?

Use properly sized and positioned relief valves, accumulators, and throttle valves, and ensure the cylinder is pressure-tested.

May, 2025

Harsh Duty Connectors: A Mining & Chemical Guide

Standard hydraulic fittings are often designed for general industrial applications and are simply not designed to withstand the severe stresses that characterize the mining and chemical industries. Similarly, in chemical plants, exposure to a variety of corrosive substances – acids, solvents, alkalis, and even salt water environments – can rapidly reduce the corrosion resistance of non-specialized materials. This chemical attack can lead to catastrophic failures, jeopardizing safety and production. This guide is designed to provide engineers, maintenance managers and purchasing professionals in the mining and chemical industries with the knowledge to help you select hydraulic connectors for use in harsh environments.

Understanding the Unique Challenges in Mining and Chemical Industries

To select the most resilient hydraulic connectors, it’s crucial to first deeply understand the specific environmental and operational onslaught they will face. While both mining and chemical industries are categorized as ‘harsh,’ the nature of their challenges can differ significantly, demanding tailored solutions.

The Abrasive Reality of Mining Operations

Mining environments are characterized by relentless mechanical stress and particulate contamination, creating a uniquely challenging scenario for hydraulic systems.

Dust and Particulate Contamination: Mines are inherently dusty. Fine rock dust, ore particles, and other abrasive materials are constantly airborne and can settle on equipment. These particles can work their way into hydraulic connector threads and sealing interfaces, causing abrasive wear that compromises seal integrity and leads to leaks. Over time, this ingression can also damage the connector bodies themselves.
Vibration and Shock Loads: Heavy machinery used in mining, such as excavators, haul trucks, crushers, and drilling rigs, generates significant and often constant vibration. Additionally, impact events and shock loads are common. Standard connectors can loosen under such conditions, leading to leakage, reduced system pressure, and eventual catastrophic failure. Cyclic stresses can also induce fatigue in connector materials.
Extreme Temperature Fluctuations: Mining operations can occur in diverse geographical locations, from scorching deserts to frigid arctic conditions. Equipment might also experience rapid temperature changes, for instance, when moving from a sun-baked surface into a cooler underground area, or due to the heat generated by the hydraulic system itself. These fluctuations can affect material properties, seal performance, and fluid viscosity, all of which impact connector reliability.

The Corrosive Threat in Chemical Processing

Chemical plants present a different, but equally severe, set of challenges, primarily centered around chemical attack and the need for stringent material compatibility.

Aggressive Chemical Exposure: The very nature of chemical processing involves a vast spectrum of potentially corrosive substances. These can range from strong acids (e.g., sulfuric, hydrochloric) and bases (e.g., sodium hydroxide) to various solvents, oxidizers, and specialized process chemicals. Each chemical, or combination thereof, can interact differently with connector materials, leading to various forms of corrosion if an incompatible material is chosen.
High Humidity and Saltwater Exposure: Many chemical plants are located in coastal areas or regions with high ambient humidity. This moisture, especially saline, can significantly accelerate corrosion rates, particularly for less resistant materials. Even atmospheric exposure can be a concern.
Specific Material Compatibility Requirements: Beyond general corrosion, certain chemicals can cause specific issues like stress corrosion cracking (SCC), pitting, or crevice corrosion in susceptible materials. The process fluids themselves, or even cleaning agents used in the plant, dictate strict material compatibility to prevent contamination of the process medium or premature failure of the hydraulic component.

Comparison of Environmental Stressors: Mining vs. Chemical Industry

Stressor Factor	Mining Industry	Chemical Industry	Common Impact on Connectors
Primary Contaminants	Abrasive dust (rock, ore, coal), mud, water	Corrosive chemicals (acids, bases, solvents), vapors, process fluids	Wear, seal damage, clogging, material degradation, corrosion
Mechanical Stress	High vibration, shock loads, impacts, heavy loads	Often lower, but can have pump/pipe vibration, pressure cycling	Fatigue, loosening of connections, seal extrusion, cracking
Temperature Extremes	Wide ambient fluctuations (desert heat to arctic cold), equipment-generated heat	Process-specific (cryogenic to very high temps), ambient conditions	Material embrittlement/softening, seal failure, fluid viscosity changes
Chemical Attack	Generally lower, but can involve acidic mine water, de-icing salts	Primary concern; wide range of aggressive substances	Severe corrosion, material dissolution, stress corrosion cracking
Humidity/Moisture	Variable; can be high underground or in wet processing	Often high, especially coastal; process steam/water	Atmospheric corrosion, accelerates chemical corrosion
Pressure Conditions	High pressures common in hydraulic machinery	Variable; can range from vacuum to very high pressures	Leakage, burst failure, fatigue
UV Exposure	Outdoor equipment subject to sunlight	Outdoor installations subject to sunlight	Degradation of non-metallic components (e.g., some seals, hoses)

Material Matters: Selecting the Right Alloys for Resilience

The choice of material is arguably the most critical factor in determining a hydraulic connector’s ability to withstand the harsh conditions prevalent in mining and chemical industries. Standard carbon steel, while adequate for many general-purpose applications, often falls short when faced with severe abrasion, aggressive chemicals, or extreme temperatures.

Beyond Basic Steel: The Need for Specialized Materials

In environments where connectors are constantly bombarded by corrosive media or abrasive particles, the limitations of basic carbon steel become quickly apparent. Corrosion can rapidly degrade carbon steel, leading to leaks, reduced structural integrity, and eventual failure. Abrasion can wear down sealing surfaces and threads.

Stainless Steel Grades and Their Applications

Stainless steels are a family of iron-based alloys containing a minimum of 10.5% chromium. This chromium content forms a passive, self-repairing oxide layer on the surface, which provides corrosion resistance. Different grades offer varying levels of corrosion resistance and mechanical properties.

304 Stainless Steel 304 stainless steel (often referred to as 18/8 due to its 18% chromium and 8% nickel content) is a widely used austenitic stainless steel. It offers good corrosion resistance in many environments and has excellent formability and weldability. However, it is susceptible to chloride-induced stress corrosion cracking and pitting, making it less suitable for environments with significant chloride exposure (e.g., coastal chemical plants, or when handling certain chloride-containing chemicals).
316/316L Stainless Steel 316 stainless steel contains molybdenum (typically 2-3%) in addition to chromium and nickel. This molybdenum addition significantly enhances its resistance to general corrosion and, crucially, to pitting and crevice corrosion, especially in chloride-containing environments. 316L is the low-carbon version of 316, which minimizes sensitization (the formation of chromium carbides at grain boundaries during welding) and thus maintains corrosion resistance in the heat-affected zone of welds. For these reasons, 316/316L is often the go-to material for hydraulic connectors in chemical processing and marine applications.
Duplex Stainless Steels Duplex stainless steels have a mixed microstructure of austenite and ferrite (typically in a 50/50 ratio). This structure provides them with higher strength (often twice that of austenitic grades like 316) and excellent resistance to stress corrosion cracking, pitting, and crevice corrosion. Common grades include 2205 and 2507 (super duplex). They are particularly well-suited for high-pressure applications in corrosive environments, such as offshore oil and gas (which shares similarities with some chemical plant conditions) and demanding mining applications where both strength and corrosion resistance are paramount.
Titanium Titanium and its alloys offer an exceptional strength-to-weight ratio and outstanding corrosion resistance, especially to oxidizing acids, chlorides, and seawater. While more expensive than stainless steels, its long service life in highly corrosive environments can justify the initial investment. It is often used in specialized chemical processing and marine applications.

Material Properties and Suitability for Harsh Environments

Material	Common Grades	Corrosion Resistance (General)	Resistance to Chlorides	Strength	Temperature Limit (Approx.)	Relative Cost	Typical Applications in Harsh Environments
Carbon Steel	e.g., 1018, 12L14	Poor	Poor	Moderate	~200°C (392°F)	Low	General hydraulics in non-corrosive, protected environments (not recommended for harsh)
304 Stainless Steel	304, 304L	Good	Fair (Pitting risk)	Moderate	~800°C (1472°F)	Medium	Mildly corrosive environments, food processing, some mining (low chloride)
316 Stainless Steel	316, 316L	Very Good	Good	Moderate	~800°C (1472°F)	Medium-High	Chemical processing, marine, mining with moderate chlorides, pharmaceuticals

Note: Temperature limits and corrosion resistance are highly dependent on the specific chemical concentration, exposure time, and other environmental factors. Always consult detailed material datasheets and corrosion handbooks for specific applications.

Seal Material Compatibility Chart (General Overview)

Seal Material	Common Name(s)	Temperature Range (Approx.)	Petroleum-Based Fluids	Water/Glycol Fluids	Dilute Acids	Concentrated Acids
NBR	Nitrile, Buna-N	-40°C to 120°C (-40°F to 248°F)	Excellent	Good	Fair	Poor
FKM	Viton®	-20°C to 200°C (-4°F to 392°F)	Excellent	Fair	Good	Fair-Good
EPDM	EPDM	-50°C to 150°C (-58°F to 302°F)	Poor	Excellent	Good	Poor
FFKM	Kalrez®, Chemraz®	-15°C to 320°C (5°F to 608°F)	Excellent	Excellent	Excellent	Excellent
PTFE	Teflon®	-200°C to 260°C (-328°F to 500°F)	Excellent	Excellent	Excellent	Excellent
HNBR	Hydrogenated Nitrile	-40°C to 150°C (-40°F to 302°F)	Excellent	Good	Fair	Poor
VMQ (Silicone)	Silicone	-60°C to 230°C (-76°F to 446°F)	Fair (Special grades better)	Good	Poor	Poor

Connector Design and Type: Optimizing for Performance and Safety

Beyond the crucial choice of materials, the design and type of hydraulic connector significantly influence its performance, reliability, and safety in harsh mining and chemical environments. Different designs offer varying strengths in terms of pressure handling, vibration resistance, ease of assembly, and leak integrity. Understanding these differences is key to optimizing your hydraulic system.

Threaded Connectors

Threaded connectors are widely used due to their familiarity and broad availability. However, their suitability for harsh environments depends heavily on the specific thread type and sealing mechanism.

NPT (National Pipe Taper): NPT threads create a seal through metal-to-metal wedging of the tapered threads, typically requiring a sealant (tape or paste) to ensure a leak-tight connection.
JIC (Joint Industry Council) / SAE J514 37° Flare: JIC connectors use a 37° flared tube end that mates with a 37° seat in the fitting body, creating a metal-to-metal seal.
BSPP (British StandardPipe Parallel) / ISO 1179: BSPP ports have parallel threads and require a bonded seal or O-ring on a spot face to create the seal. The threads themselves provide mechanical strength but not the primary seal.
ORFS (O-Ring Face Seal) / SAE J1453: ORFS connectors feature a straight thread and an O-ring in a groove on the face of the male fitting, which compresses against a flat face on the female fitting.

Welded Connectors

For applications demanding the highest level of leak integrity, particularly in critical chemical processing lines or permanent installations, welded connectors offer a permanent, robust solution.

Socket Weld vs. Butt Weld:

Socket Weld: The pipe or tube is inserted into a recessed area of the fitting, then welded around the outside. Easier to align than butt weld fittings.

Butt Weld: The pipe/tube and fitting ends are beveled and welded together, creating a smooth internal bore. Generally preferred for higher integrity and less flow restriction.

Considerations for installation and inspection: Welding requires skilled, certified welders and often involves more complex installation procedures (e.g., purging for certain materials). Inspection (e.g., radiographic, dye penetrant) is critical to ensure weld quality. Not suitable for components that require frequent disassembly.

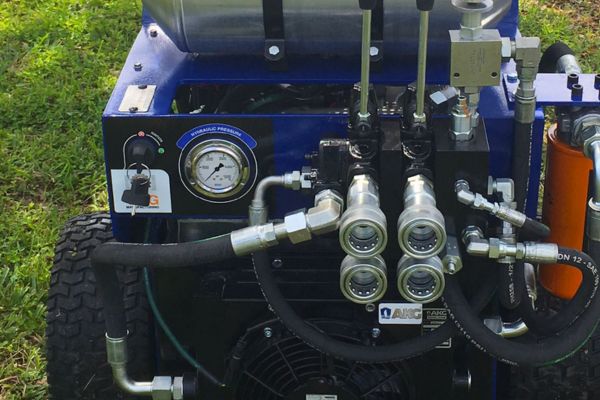

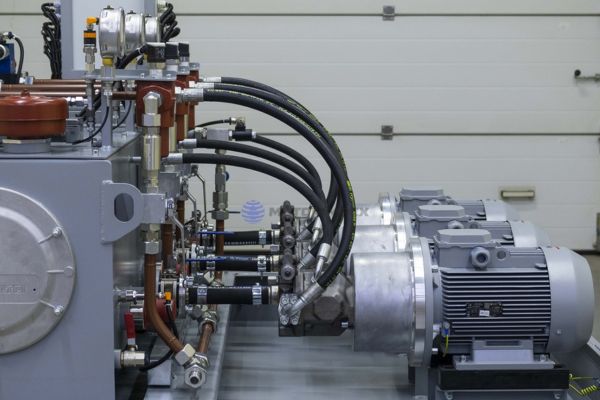

Quick-Connect Coupling

Quick-connect couplings allow for fast and easy connection and disconnection of hydraulic lines without tools, which can be beneficial for maintenance or reconfigurable equipment.

Material and design considerations for harsh duty: For mining and chemical use, quick-connects must be made from corrosion-resistant materials (e.g., stainless steel) with durable seals compatible with the fluids and environment. Designs should minimize dirt ingression when disconnected and provide robust locking mechanisms to prevent accidental disconnection under pressure or vibration.
Spillage and contamination risks: While some designs (e.g., flat-face) minimize spillage and air inclusion, there is always a higher risk compared to permanent connections. Careful selection and operation are necessary to mitigate these risks, especially when handling hazardous chemicals.

Selecting the appropriate connector design involves a trade-off between factors like pressure capability, leak resistance, vibration handling, ease of assembly, and cost. The specific demands of the mining or chemical application will guide the optimal choice.

Beyond Material and Type: Critical Selection Factors

While choosing the right material and connector type forms the foundation of a resilient hydraulic connection, several other critical factors must be meticulously evaluated to ensure optimal performance and safety in the demanding environments of mining and chemical industries. Overlooking these aspects can lead to premature failures, even with high-quality materials and designs.

Pressure Ratings and Safety Factors

Understanding and respecting pressure ratings is paramount for safe hydraulic system operation.

Understanding Working Pressure, Proof Pressure, and Burst Pressure:

Maximum Allowable Working Pressure (MAWP): This is the maximum pressure the connector is designed to sustain continuously under normal operating conditions. It should never be exceeded during regular operation.
Proof Pressure: This is a quality control test pressure (typically 2x MAWP) that the connector must withstand without permanent deformation or leakage. It verifies the structural integrity of the design and manufacturing.
Burst Pressure: This is the pressure at which the connector is expected to fail (typically 4x MAWP for many hydraulic components). It provides a margin of safety.

Importance of Derating for Temperature and Dynamic Loads: Published pressure ratings are often specified at ambient temperature (e.g., 70°F or 20°C). As operating temperatures increase, the strength of materials (both metallic and elastomeric seals) decreases, which can necessitate a reduction (derating) of the MAWP. Similarly, systems experiencing significant pressure spikes, surges, or high-cycle dynamic loads may require connectors with higher safety factors or specific designs to handle these stresses.

Temperature Considerations: Ambient and Fluid

Temperature extremes, both from the surrounding environment and the hydraulic fluid itself, can significantly impact connector performance.

Ambient Temperature: In mining, equipment can be exposed to sub-zero temperatures or extreme desert heat. Chemical plants might have localized hot spots near reactors or cryogenic processes. The connector body and seal materials must maintain their mechanical properties and sealing capability across the entire expected ambient temperature range.
Fluid Temperature: The hydraulic fluid temperature can rise due to system inefficiencies, high workloads, or proximity to heat sources. High fluid temperatures can accelerate seal degradation, reduce fluid viscosity (potentially affecting lubrication and sealing), and lower the effective pressure rating of the connector. Conversely, very low temperatures can make seals brittle and increase fluid viscosity, straining pumps and potentially affecting connector performance.

Vibration and Mechanical Stress Resistance

As discussed earlier, vibration is a major concern, especially in mining. Connectors must be selected for their ability to resist loosening and fatigue under such conditions.

Anti-vibration Features and Designs: Certain connector designs inherently offer better vibration resistance (e.g., ORFS, flange connectors). Some threaded connectors may incorporate features like elastomeric locknuts, thread-locking compounds (ensure chemical compatibility), or specific torque procedures to enhance their security. Proper routing and clamping of hoses can also significantly reduce stress on connectors.

Certifications and Standards Compliance (e.g., NACE, API, ISO)

Adherence to recognized industry standards and certifications provides an assurance of quality, performance, and often, material traceability.

NACE MR0175/ISO 15156: Specifies material requirements for resistance to sulfide stress cracking in sour gas environments (relevant for some chemical and petrochemical applications, and occasionally in mining where sour conditions exist).
API (American Petroleum Institute) Standards: While primarily for oil and gas, some API standards for high-pressure fittings or materials can be relevant for demanding hydraulic applications.
ISO (International Organization for Standardization) Standards: Many hydraulic connectors (e.g., ISO 6162 for flange connectors, ISO 8434 for various threaded connectors) are governed by ISO standards, ensuring interchangeability and minimum performance criteria.
Other relevant certifications: Depending on the application, certifications related to pressure equipment directives (e.g., PED in Europe), specific industry approvals (e.g., MSHA for mining safety), or third-party type approvals can be important.

By systematically considering these factors in conjunction with material and connector type, users in the mining and chemical industries can significantly enhance the reliability and safety of their hydraulic systems, moving beyond a simple component purchase to a strategic selection process.

Conclusion

Choosing the right hydraulic connector is critical for system safety and durability, especially in harsh environments. From material selection to design compatibility, every detail matters. At Topa, we combine expert guidance, custom solutions, and a wide product range to meet your toughest challenges. Don’t risk failure with the wrong fittings—partner with Topa for connectors that perform under pressure. Contact us now to discuss your needs or place an order.

FAQ

How do I choose fittings for mining or chemical applications?

Start by analyzing environmental factors like abrasion, vibration, extreme temperatures, and chemical exposure.

Why is material selection so important for harsh duty fittings?

The right material ensures resistance to corrosion, wear, and temperature damage—critical for long-term system integrity.

Which fitting designs are best for high-vibration systems?

ORFS, flanged, and welded designs are preferred because they provide secure, leak-resistant connections under stress.

What pressure and temperature ratings should I look for?

Always select fittings with appropriate safety margins above your system’s maximum operating conditions.

How can I reduce connector failures in critical systems?

Use certified products, follow industry best practices, and consult with experts for proper sizing and selection.

Does Topa offer support for custom harsh-duty applications?

Yes, our engineers can help you design or choose the best connectors for extreme environments based on your exact needs.

May, 2025

Hydraulic Swivel Fittings design, Market Trends and Application

Hydraulic Swivel Fittings Design, Applications And Market Trends

Hydraulic swivel fittings, also known as live swivels, are essential components in modern hydraulic systems, enabling fluid transfer between stationary and rotating parts without leakage. They prevent hose twisting, reduce wear, and extend equipment lifespan by ensuring smooth movement in demanding environments. Crucial in industries like construction, agriculture, and aerospace, these fittings optimize machine design, minimize downtime, and enhance safety by maintaining seal integrity under high pressure, varying temperatures, and rotational stress. With ongoing advancements in materials and sealing technologies, hydraulic swivel fittings are at the heart of efficient, reliable, and compact hydraulic systems.

Working Principles and Classification of Hydraulic Swivel Fittings

Effective hydraulic swivel fitting operation depends on a well-engineered design that allows relative motion between components while maintaining a high-integrity seal for the hydraulic fluid. Understanding these principles and classifications aids in selecting the appropriate fitting for specific applications, ensuring optimal system performance and longevity.

live swivel fitting Technical Characteristics

Fundamental Working Principles

The fundamental working principle involves a stationary component (housing) and a rotating component (shaft or spindle). These parts are precisely machined with internal chambers and passages that align to allow fluid flow from an inlet on one component to an outlet on the other, even during rotation. Critical elements are the bearing system (ball, roller, or plain bearings) and the sealing system. Bearings support rotational loads, ensure smooth movement, and maintain precise alignment, which is crucial for seal effectiveness. The sealing system (O-rings, lip seals, mechanical face seals) is strategically placed to prevent fluid leakage from pressurized internal passages and cross-port leakage in multi-passage swivels. As the shaft rotates, seals maintain contact with sealing surfaces. Designs must also account for hydraulic balance to minimize forces on seals and bearings, reducing friction, wear, and rotational torque, especially in high-pressure applications. Some designs use fluid pressure to counteract forces that could displace seals or increase friction. The complexity of internal passages varies from single-passage to intricate multi-passage units handling several independent hydraulic circuits, and sometimes other media like electrical signals.

Classification Based on Design and Application

Hydraulic swivel fittings are classified by criteria including design, number of flow paths, pressure ratings, mounting configurations, and specific application requirements.

Single-Passage vs. Multi-Passage Swivels

A primary classification is by the number of independent fluid paths. Single-passage swivels have one inlet and one outlet for a single hydraulic line, common in simpler applications like hose reels or single-acting cylinders. Multi-passage swivels are more complex, accommodating two or more independent hydraulic circuits through one unit. These are essential for applications needing multiple functions on a rotating component, such as controlling several actuators on an excavator boom or complex industrial machinery. They require intricate internal machining and sealing to keep fluid paths separate and prevent cross-contamination.

Classification by Pressure Rating

Swivels are categorized by maximum working pressure. Low-pressure swivels suit return lines or auxiliary systems. Medium-pressure swivels are common in general industrial and mobile applications. High-pressure and ultra-high-pressure swivels are for demanding applications like heavy construction equipment or offshore drilling, often using advanced sealing and robust materials for pressures exceeding several hundred bar. Pressure rating significantly influences design, material selection, and cost.

Classification by Mounting Configuration

Mounting configuration is another differentiator. Inline swivels install directly into a hydraulic line, with threaded or flanged connections. 90-degree (elbow) swivels provide a right-angle connection, useful for space constraints or specific routing. Cartridge-style swivels integrate directly into a manifold or machine component, offering a compact installation. Flange-mounted and base-mounted swivels provide specific interfaces for secure attachment to machine structures. The choice depends on machine design, space, and load conditions.

Key Technical Parameters of Hydraulic Swivel Fittings

Selecting the right hydraulic swivel fitting requires careful consideration of technical parameters defining its performance, compatibility, and suitability. These ensure the fitting withstands operational demands and integrates seamlessly.

Performance Parameters

Performance parameters dictate operational limits and efficiency.

Working Pressure: Maximum continuous hydraulic pressure (bar or psi) the swivel can safely handle. Exceeding this can cause seal failure or structural damage. Dynamic pressure spikes and cycles also affect fatigue life.

Rotational Speed: Maximum continuous or intermittent speed (RPM) without compromising seal integrity or causing excessive heat. High-speed applications need specialized bearings and seals. Permissible speed can be influenced by pressure and fluid type.

Flow Rate: Volume of fluid (LPM or GPM) passing through without excessive pressure drop or velocity. Undersizing leads to energy loss, heat, and sluggish performance. Internal passage design and port sizes are key.

Temperature Range: Minimum and maximum ambient and fluid temperatures for reliable operation. Temperature affects fluid viscosity, seal properties, and bearing lubrication. Materials must be compatible with the expected range.

Connection and Compatibility Parameters

These ensure correct installation and compatibility with system fluid and environment.

Connection Type and Size: Hydraulic port types (NPT, BSPP, SAE O-ring boss, JIC, flanges) and nominal dimensions (e.g., 1/4″, M22x1.5). Correct selection ensures a leak-proof, sound interface.

Fluid Compatibility: Types of hydraulic fluids compatible with internal components, especially seals (mineral oils, synthetics, water-glycol). Incompatibility leads to seal degradation and failure. Fluid viscosity and filtration requirements are also important.

Durability and Reliability Parameters

These relate to expected lifespan and robustness.

Material Selection: Body, shaft, bearings, and seals chosen for strength, wear resistance, corrosion resistance, and compatibility. Common body/shaft materials include carbon steel (often coated) and stainless steel. Seal materials vary widely.

Seal Life and Leak Rate: Expected operational life of seals (hours/rotations) and maximum permissible leak rate. Modern designs aim for near-zero leakage.

Environmental Resistance: Ability to withstand dust, water ingress (IP rating), corrosive atmospheres, vibration, and shock loads. Protective coatings and robust designs contribute to this.

Sealing Technologies and Materials in Hydraulic Swivel Fittings

The sealing system is arguably the most critical aspect, dictating the fitting’s ability to contain high-pressure fluid during rotation, its lifespan, and reliability. Innovations in sealing technologies and materials are central to advancing performance.

Overview of Sealing Technologies

Various sealing technologies, often combined, achieve effective static and dynamic sealing.

Static Sealing Technologies: Used at non-moving interfaces (e.g., body to port connectors). Common static seals include O-rings, metal-to-metal face seals, or bonded seals. Thread seals (tapered threads with sealant) are also used at connection points.

Dynamic Sealing Technologies: Essential for sealing between the rotating shaft and stationary housing. Lip seals (U-cups, V-rings, spring-energized PTFE seals) are widely used, their flexible lips energized by fluid pressure. Mechanical face seals (two precision-lapped flat surfaces) offer excellent sealing for high-pressure, high-speed applications but are more complex. Combination seals integrate multiple elements for enhanced performance and redundancy. Labyrinth seals (non-contact) may protect primary seals from contaminants.

Pressure-Balanced Designs: In high-pressure applications, fluid pressure can cause high seal friction and wear. Pressure-balanced designs route fluid pressure to act on both sides of the seal, largely canceling out the net force, reducing contact pressure, friction, and wear, extending seal life and allowing higher operating pressures/speeds.

Swivel fitting Technical Characteristics

Common Sealing Materials

Material choice depends on fluid compatibility, temperature, pressure, speed, and cost.

Elastomers: Widely used for flexibility. Nitrile Rubber (NBR) is common for standard hydraulic oils (good oil resistance, low cost) but has temperature limitations. Fluoroelastomers (FKM, Viton®) offer excellent resistance to high temperatures and chemicals but are costlier and may have poorer low-temperature flexibility. Ethylene Propylene Diene Monomer (EPDM) suits water-based fluids. Polyurethane (PU) provides excellent abrasion resistance for high-pressure dynamic applications.

Plastics and Thermoplastics: Offer low friction and chemical inertness. Polytetrafluoroethylene (PTFE) is widely used for dynamic seals, often in filled grades (carbon, glass, bronze) to improve wear and creep resistance. Polyether Ether Ketone (PEEK) is a high-performance thermoplastic for extreme strength, wear, and temperature capability, but is expensive. Acetal (POM) or Nylon (PA) may be used for backup rings or specific components.

Composite Materials: Such as carbon-fiber or glass-fiber reinforced PTFE, enhance mechanical properties like wear resistance and dimensional stability. Bronze-filled PTFE improves thermal conductivity. These are found in high-performance fittings for arduous conditions.

Failure Analysis and Solutions for Hydraulic Swivel Fittings

Despite robust designs, swivel fittings can fail. Understanding common failure modes, root causes, and corrective actions is crucial for maintaining system reliability and safety.

Common Failure Types and Symptoms

Failures manifest in several ways.

Leakage Issues: Most common. External leakage is visible fluid escape. Internal leakage (fluid bypassing seals between passages) is harder to detect but causes functional anomalies like slow actuator movement or overheating.

Mechanical Issues: Abnormal noise (whining, grinding) indicates bearing wear, poor lubrication, or interference. Increased rotational resistance or seizure can result from bearing failure, contamination, or severe seal damage.

Performance Degradation: Reduced flow rate (blockages, internal leakage) leads to slow system response. Pressure fluctuations can indicate internal seal bypass or issues with pressure balancing.

Temperature Anomalies: Overheating indicates excessive friction (failing bearings/seals), high ambient temperatures, or fluid flow problems, accelerating degradation.

Root Cause Analysis of Failures

Identifying the root cause is essential.

Causes of Leakage: Seal failure (normal wear, abrasive contaminants, poor lubrication, exceeding limits, aging, installation damage), installation errors (misalignment, incorrect torque), or operating beyond specified limits.

Causes of Mechanical Problems: Mechanical interference (thermal expansion, deformation, foreign objects), material/manufacturing defects, or bearing failure (contamination, inadequate lubrication, overload, fatigue).

Causes of Performance Degradation: Flow channel blockage (contaminants, sludge, corrosion), or system-related issues like highly contaminated fluid or improper pressure settings.

Diagnostic Techniques

A systematic approach is key.

Visual and Sensory Inspections: Check for external leaks, fluid condition, visible damage, abnormal noises, and hot spots or excessive vibration.

Measurement and Testing: Pressure testing (monitoring fluctuations, holding tests), flow testing (measuring rates), temperature monitoring (infrared thermometers/thermal cameras), and vibration analysis (detecting bearing faults/imbalance). Disassembly inspection allows detailed examination of internal components.

Solutions and Preventive Measures

Addressing failures involves corrective actions and preventive strategies.

Corrective Actions: For leakage, seal replacement with OEM-quality seals and proper installation procedures. For mechanical issues, bearing replacement, alignment correction, or contaminant removal. If defects are found, component replacement or redesign might be needed.

Preventive Maintenance: Scheduled inspections for leaks, noise, temperature. Regular hydraulic fluid analysis and maintaining cleanliness through filtration. Adhering to lubrication schedules. Training operators. Implementing predictive maintenance (vibration analysis, thermal imaging). Operating within design specifications is fundamental.

Market Analysis and Future Outlook for Hydraulic Swivel Fittings

The hydraulic swivel fitting market is a dynamic segment within the fluid power industry, influenced by global economic trends, technological advancements, and evolving end-user needs.

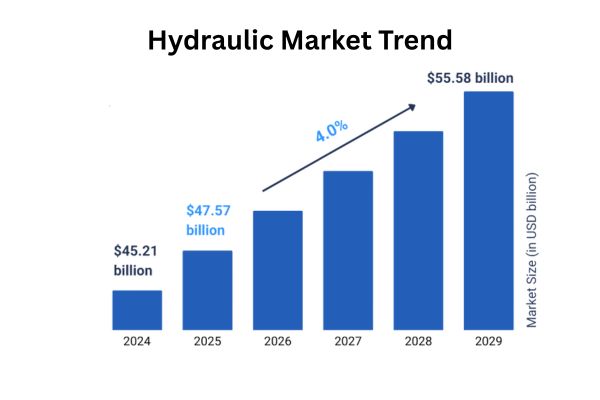

Global Market Size and Growth Trends

Market research indicates consistent growth, linked to industries like construction machinery, industrial automation, and mining. The global hydraulic/pneumatic swivel joint market was ~$326 million in 2024, projected to $468 million by 2031 (CAGR ~5.5%). The broader swivel joint market (all types) was ~$3.33 billion in 2024, expected to reach ~$5.48 billion by 2034 (CAGR ~5.1%), underscoring sustained demand.

Regional Distribution: Asia-Pacific leads (~40%, China dominant), driven by industrialization. North America (~25%) demands high-technology swivels (aerospace, defense). Europe (~20%) emphasizes eco-friendliness and standards. Other regions (~15%) grow with infrastructure, mining, and oil & gas.

Key Application Segments: Construction equipment (~35%) is dominant. Injection molding/die casting machinery (~25%) is fueled by demand for plastic and lightweight metal parts. General hydraulic systems (~20%) and oil & gas equipment (~15%) are also significant. Niche applications include renewable energy and medical devices.

Key Market Drivers

Several forces propel market growth.

Rising Demand for Industrial Automation: Industry 4.0 and smart manufacturing require advanced, reliable fluid transmission components, including high-precision swivels for automated lines and robotics.

Focus on Energy Efficiency and Environmental Performance: Sustainability concerns push for low-friction designs, advanced sealing to minimize leakage, eco-compliant materials, and extended lifespan to reduce waste.

Accelerated Industrialization in Emerging Markets: Rapid industrial growth in developing regions (Asia, Latin America, Africa) fuels demand for hydraulic systems and components.

Technological Advancements: Innovations in materials (composites, advanced elastomers) and engineering (CFD/CAD tools, precision machining) elevate performance and application range.

Market Challenges and Restraints

The market faces certain challenges.

Price Sensitivity and Competition: The standard swivel market can be price-sensitive, with competition from global and regional manufacturers. Differentiation through quality and features is crucial.

Raw Material Price Volatility: Fluctuations in prices of steel, alloys, and polymers impact manufacturing costs. Supply chain disruptions also pose challenges.

Rise of Alternative Technologies: Electrification and electro-mechanical actuators are alternatives in some niches, potentially moderating growth in specific segments.

Future Trends and Opportunities

Emerging trends shape the market’s future.

Smart and IoT-Enabled Swivel Fittings: Growing interest in integrating sensors for condition monitoring and predictive maintenance, providing data for optimizing schedules and preventing failures.

Customization and Application-Specific Solutions: Increasing demand for swivels tailored to specific needs (unique space constraints, extreme conditions, combined fluid/electrical transmission).

Enhanced Durability and Maintenance-Free Designs: End-users seek longer service lives and reduced maintenance to minimize downtime and total cost of ownership.

Focus on Compactness and Higher Power Density: Trend towards more compact machinery necessitates swivels handling higher pressures/flows in smaller envelopes, requiring design and material innovation.

Conclusion

With advancements in materials, sealing technologies, and manufacturing, they continue to drive innovation in industries from construction to automation. As global industrialization and automation progress, the demand for energy-efficient solutions further accelerates their growth. While challenges like price competition and alternative technologies remain, the future of hydraulic swivel fittings looks bright, with smart swivels and tailored designs offering new opportunities. For a deeper dive into this topic, email Topa for a comprehensive white paper on hydraulic swivel fittings.

May, 2025

Key Hydraulic Fitting Terms Become an Expert in No Tim banner

Key Hydraulic Fitting Terms: Become an Expert in No Time

Hydraulic fittings are critical components in hydraulic systems, used to connect hoses, pipes, and other parts to create leak-proof connections. Understanding the key terminology related to these fittings is essential for selecting the right components and ensuring the system operates smoothly and efficiently. But how can you quickly grasp these basic concepts? This article serves as a simple guide to help you understand the fundamental terms of hydraulic fittings, clearing up any confusion and giving you the knowledge needed to make informed decisions in hydraulic system design and maintenance.

Fluid Transmission in Hydraulic Systems

Fluid transmission is the cornerstone of hydraulic system operation, enabling the transfer of power through the controlled movement of an incompressible fluid, typically oil. This principle allows for the generation of significant force and precise motion, making hydraulic systems indispensable in applications requiring heavy lifting or intricate control. The efficiency and reliability of fluid transmission are directly impacted by the quality and suitability of the components used, including adapters that connect various parts of the hydraulic circuit.

Fluid Transmission Definition

In the context of hydraulic systems, fluid transmission refers to the process of conveying hydraulic fluid between different components, such as pumps, cylinders, valves, and motors. This is achieved through a network of hoses, pipes, and tubes, interconnected by various fittings and adapters. The primary purpose of these connections is to ensure a leak-proof and pressure-tight seal, allowing the hydraulic fluid to transmit power effectively. The design and material of adapters are crucial in preventing fluid loss, contamination, and pressure drops, all of which can impair system performance and longevity. Different adapter types are selected based on factors like operating pressure, fluid compatibility, and the specific requirements of the connection point.

Pressure Concepts in Hydraulic Systems

Hydraulic systems operate under varying pressure levels, which are critical for their function. Understanding pressure concepts such as working pressure, maximum working pressure, and pressure tolerance is essential for selecting appropriate components, including adapters, to ensure both safety and optimal performance. Adapters must be able to withstand the system’s operating pressures without leaking or failing, as this could lead to system malfunction, damage, or safety hazards.

Working Pressure

Working pressure refers to the normal operational pressure range within a hydraulic system. Hydraulic adapters are designed to function reliably within this specified pressure range. When selecting an adapter, it’s crucial to match its rated working pressure with the system’s requirements. Exceeding the recommended working pressure can lead to premature wear, seal failure, or even catastrophic failure of the adapter, potentially causing system downtime and safety risks.

Maximum Working Pressure

Maximum working pressure is the highest pressure that a hydraulic component, such as an adapter, can sustain safely during operation. This value is typically higher than the normal working pressure to account for occasional pressure spikes or surges within the system. It is imperative that the maximum working pressure rating of an adapter is not exceeded. Doing so could compromise the structural integrity of the adapter, leading to leaks, bursts, or other forms of failure, which can have serious consequences for the equipment and personnel.

Pressure Tolerance

Pressure tolerance, often referred to as proof pressure in some contexts, indicates the adapter’s ability to withstand pressures significantly above its maximum working pressure for a short duration without permanent deformation or failure. This is a critical safety factor, ensuring that the adapter can handle unexpected pressure surges that might occur due to system malfunctions or external factors. For instance, an adapter might be rated to handle twice its maximum working pressure. This provides a safety margin, contributing to the overall robustness and reliability of the hydraulic system.

Pressure Safety Standards

Adherence to pressure safety standards is paramount in the design and operation of hydraulic systems. These standards dictate the minimum requirements for components to ensure they can operate safely under specified pressure conditions. For hydraulic adapters, this often involves considerations of burst pressure, which is a critical parameter in preventing catastrophic failures.

Minimum Burst Pressure

Minimum burst pressure is the lowest pressure point at which a hydraulic fitting or adapter is expected to rupture or fail. Industry standards, and often manufacturer specifications, typically require the minimum burst pressure to be a multiple of the maximum working pressure. For example, it’s common for the minimum burst pressure to be three or four times the maximum working pressure. This safety margin is crucial because it ensures that even under extreme, unforeseen pressure surges, the adapter is unlikely to fail catastrophically, thus protecting equipment and personnel.

Key Components of Hydraulic Fittings

Hydraulic fittings, often referred to as hydraulic adapters in many contexts, are crucial components that facilitate the connection of various parts within a hydraulic system. They ensure the integrity of the fluid path, preventing leaks and maintaining pressure. The design and material of these adapters are critical for the overall performance and safety of hydraulic machinery.

Hydraulic Fittings / Hydraulic Adapters

Hydraulic fittings, or adapters, serve as the connectors between different sections of hydraulic lines, such as hoses, pipes, and tubes, or between lines and components like pumps, cylinders, and valves. Their primary role is to create a secure, sealed connection that can withstand the operating pressures and temperatures of the hydraulic system. The selection of the appropriate fitting type depends on the specific application, including the type of fluid, pressure requirements, and the materials of the components being connected.

Fitting Body

The fitting body is the main structural part of the hydraulic adapter. It is typically manufactured from materials like carbon steel, stainless steel, or brass, chosen for their strength and compatibility with hydraulic fluids. The body houses the sealing mechanisms and provides the threaded or flanged surfaces for connection. Different configurations of fitting bodies exist, such as straight connectors, elbows, tees, and crosses, to accommodate various routing requirements and system layouts. The design of the fitting body, including its material and construction, directly impacts its pressure rating and durability.

Below is a table summarizing common hydraulic adapter types and their typical applications. This information is crucial for selecting the right adapter for a specific hydraulic system requirement, ensuring both efficiency and safety.

Adapter Type	Description	Typical Applications
Straight Adapter	Connects two components in a straight line.	General purpose connections
Elbow Adapter	Changes the direction of flow (e.g., 45°, 90°).	Tight spaces, routing around obstacles
Tee Adapter	Splits flow into two directions or combines flow from two lines into one.	Branching lines, pressure gauge installation
Cross Adapter	Splits flow into three directions or combines flow from three lines.	More complex branching
Reducer/Expander	Connects components with different diameters.	Adapting sizes in a system
Bulkhead Adapter	Passes through a panel or wall, providing a connection point on either side.	Panel mounting, through-wall connections
Plug/Cap	Seals off unused ports or lines.	System maintenance, preventing contamination
Swivel Adapter	Allows for rotation to prevent hose kinking or twisting.	Applications with moving parts, hose management

Common Hydraulic Adapter Types and Their Descriptions

Types of Thread Connections

The integrity of a hydraulic system heavily relies on the quality of its connections. Thread connections are a common method for joining hydraulic components, and understanding the different types of threads is essential for ensuring a secure and leak-free system. The choice of thread type often depends on the pressure requirements, the type of fluid being conveyed, and the specific standards followed in a given industry or region.

External Thread at End of Fitting

Many hydraulic adapters feature an external thread at one or both ends, designed to mate with a corresponding internal thread on another component, such as a port or another fitting. The precision of these threads is critical for achieving a proper seal and preventing leaks, especially under high pressure. Different thread standards exist, each with its own specifications for thread angle, pitch, and diameter.

Below is a table outlining common hydraulic thread types and the standards they adhere to. This information is vital for selecting compatible adapters and ensuring the safety and efficiency of the hydraulic system.

Thread Type	Standard	Sealing Method	Common Applications
NPT/NPTF (National Pipe Taper Fuel)	ANSI B1.20.1	Tapered threads, sealant often used.	General industrial, fluid power (NPTF for higher pressure)
BSPP (British Standard Pipe Parallel)	ISO 228	Parallel threads, sealing with bonded washer or O-ring.	UK, Europe, Asia, Australia – low to medium pressure
BSPT (British Standard Pipe Taper)	ISO 7	Tapered threads, sealant often used.	UK, Europe, Asia, Australia – low to medium pressure
JIC (Joint Industry Council) 37° Flare	SAE J514 / ISO 8434-2	Metal-to-metal seal on 37° flared cone.	High-pressure hydraulics, especially in North America
SAE Straight Thread O-ring Boss (ORB)	SAE J1926 / ISO 11926	O-ring seal.	High-pressure hydraulics, good vibration resistance
Metric Parallel	ISO 6149	O-ring seal.	Hydraulic systems, often with metric tubing
Metric Taper	DIN 3852	Tapered threads, often with sealant.	Hydraulic systems, less common than parallel
SAE Flange (Code 61 & 62)	SAE J518	O-ring seal between flange faces.	High-pressure, high-flow applications, split flange design

It is important to consult manufacturer specifications and consider the specific operating conditions, including the type of hydraulic fluid, temperature range, and potential exposure to corrosive elements, when selecting the material for hydraulic adapters. Using an incompatible material can lead to premature failure, leaks, and potential safety hazards.

Installation Considerations

Proper installation of hydraulic adapters is paramount to ensure the safety, efficiency, and longevity of any hydraulic system. Even the highest quality adapter can fail if not installed correctly, leading to leaks, pressure loss, component damage, or even catastrophic system failure.

Installation Torque

Installation torque refers to the precise amount of rotational force that must be applied when tightening a threaded hydraulic adapter. Applying the correct torque is critical. Insufficient torque can result in loose connections, leading to leaks or even detachment under pressure. Conversely, excessive torque can damage the threads, crush seals, or even crack the adapter body or the component it’s being connected to.

Manufacturers typically provide recommended torque specifications for their hydraulic adapters. These specifications are based on the adapter’s material, size, and thread type. It is essential to use a calibrated torque wrench and adhere strictly to these recommendations during installation. Factors such as the presence of lubrication can also affect the actual clamping force achieved at a given torque, so manufacturer guidelines should always be the primary reference.

Adjustable Column End

Some hydraulic adapters, particularly those used in complex configurations or where precise orientation is necessary, feature an adjustable column end. This design allows the main body of the adapter to be rotated relative to its threaded base after the base has been tightened. This is particularly useful for elbow fittings, tee fittings, or cross fittings where the outlet ports need to be aligned in specific directions after the threaded connection to the main hydraulic line or component is secured.

The adjustable column end typically involves a locking nut or a similar mechanism that, once the adapter is oriented correctly, can be tightened to fix the adapter’s position and ensure a pressure-tight seal. This adjustability simplifies the assembly of complex hydraulic circuits and helps prevent undue stress on hoses or pipes that might arise from misaligned fixed fittings.

Fixed Column End

In contrast to adjustable column ends, fixed column end adapters have a predetermined orientation once tightened. These are common in simpler, straight connections where the directionality of the flow is not a complex factor. While lacking the flexibility of adjustable ends, fixed adapters are often more straightforward to install in direct line connections and can be more robust in certain applications due to fewer moving parts or adjustment mechanisms.

The choice between an adjustable or fixed column end adapter will depend on the specific requirements of the hydraulic system design, the space available for installation, and the need for precise angular positioning of the connected line

Hose Fittings and Their Characteristics

Hydraulic hoses are fundamental for conveying fluid under high pressure in hydraulic systems, offering flexibility that rigid pipes or tubes cannot. Hose fittings are the critical components that connect these hoses to other parts of the system, such as pumps, cylinders, or other hoses. The integrity of these fittings is paramount for system safety and efficiency, as any failure can lead to significant fluid loss, pressure drops, and potential hazards.

Hose Fitting Definition and Importance

A hydraulic hose fitting is a connector specifically designed to attach to the end of a hydraulic hose, creating a secure and leak-proof seal. Their importance cannot be overstated, as they are the primary interface between the flexible hose and the rigid components of a hydraulic circuit. A properly selected and installed hose fitting ensures several critical functions:

Containment of High-Pressure Fluids: Hydraulic systems often operate at thousands of PSI. Hose fittings must reliably contain these pressures to prevent dangerous blowouts or leaks.
Maintaining System Integrity: A secure connection prevents the ingress of contaminants (dirt, moisture) into the hydraulic system, which can damage sensitive components and reduce system lifespan.
Ensuring Efficient Power Transmission: Leaks at fittings lead to a loss of hydraulic fluid and pressure, reducing the efficiency of power transmission and potentially causing system malfunctions.
Facilitating Assembly and Maintenance: Hose fittings allow for the modular assembly of hydraulic systems and simplify the replacement of hoses during maintenance.

These fittings are typically made from materials like carbon steel, stainless steel, or brass, chosen for their strength, corrosion resistance, and compatibility with various hydraulic fluids. The design of a hose fitting must ensure that it can grip the hose securely without damaging its structural layers (e.g., reinforcement braids or spirals), while also providing a reliable connection point to the rest of the hydraulic system.

Components of a Typical Hose Fitting

While designs vary, many hydraulic hose fittings share common structural components that contribute to their sealing and holding capabilities. Understanding these components is key to appreciating how they function:

Internal Conical Sealing Face

Many hydraulic hose fittings, particularly those that form metal-to-metal seals, utilize an internal conical sealing face. This is a precisely machined, angled surface within the fitting (often on the male half or a corresponding seat in the female half). When the fitting is connected and tightened to a mating component that has a compatible conical seat, these two surfaces are forced together, creating a metal-to-metal seal. This type of seal is highly effective at preventing leaks, especially under high-pressure conditions. The angle of the cone (e.g., 24°, 37° as in JIC fittings) and the surface finish are critical for the integrity of this seal. This type of seal can often be reconnected multiple times, though care must be taken to avoid damaging the sealing surfaces.

Ball-Sealed Hose Fitting Core

Another sealing mechanism found in some hydraulic hose fittings involves a ball-sealed core. In this configuration, a spherical ball, typically made of hardened steel or a durable polymer, is designed to rest against a precisely machined seat within the fitting’s core. When pressure is applied in one direction, or when the fitting is disconnected (in the case of quick couplings), the ball is forced against its seat, blocking any potential leak paths. This type of sealing is common in quick-disconnect couplings where rapid and repeated connections and disconnections are required. The precision of both the ball and its seat is crucial for the effectiveness of the seal, especially under dynamic pressure conditions.

Nut or Body That Holds the Entire Fitting Together

The structural integrity and the compressive force required for sealing in a hose fitting assembly are typically provided by a nut or the main body of the fitting.

Nut: In many reusable or field-attachable fittings, and in the connection of the fitting to another component, a threaded nut is employed. This nut, when tightened, draws the mating parts of the fitting together, or compresses the hose end onto the fitting stem/nipple. The threads on the nut must be robust enough to handle the tightening torque and the operational stresses.
Body/Socket/Ferrule: For crimp-on fittings, the main body (often called a socket or ferrule) is a sleeve that is placed over the hose end and the fitting stem. This ferrule is then radially compressed (crimped) using a specialized machine. The crimping process deforms the ferrule, forcing it to grip the hose tightly against the barbed or profiled stem inserted into the hose. This creates a permanent, high-strength connection and seal. The design of the ferrule and stem, along with the crimping parameters, are critical for a reliable hose assembly.

Materials Used in Hydraulic Adapters

The choice of material for hydraulic adapters is critical, as it directly impacts their strength, durability, corrosion resistance, and compatibility with different hydraulic fluids and operating environments. Different applications may necessitate different materials to ensure optimal performance and longevity of the hydraulic system.

Below is a table summarizing common materials used in the manufacture of hydraulic adapters, along with their key properties and typical applications. This information can help in selecting the most appropriate adapter material for a given hydraulic system’s operational requirements.

Material Properties and Considerations for Hydraulic Adapters

Material	Properties	Common Applications	Considerations
Carbon Steel	Good strength, relatively low cost. Often plated for corrosion resistance.	General hydraulic systems.	Susceptible to corrosion if plating is damaged. Not suitable for corrosive fluids.
Stainless Steel	Excellent corrosion resistance, high strength, good temperature resistance.	Marine environments, chemical processing, food industry.	Higher cost than carbon steel.
Brass	Good corrosion resistance, easy to machine.	Low-pressure applications, fuel lines, air brakes.	Lower strength than steel, not suitable for high pressures.
Aluminum	Lightweight, good corrosion resistance.	Aerospace, mobile hydraulic systems where weight is a factor.	Lower strength and wear resistance compared to steel.
Titanium	High strength-to-weight ratio, excellent corrosion resistance.	Aerospace, high-performance applications.	Very high cost, difficult to machine.

Conclusion

In conclusion, understanding the core terminology of hydraulic fittings is crucial for anyone working with hydraulic systems. Whether you’re selecting components for a new project or maintaining existing equipment, knowledge of key terms like working pressure, burst pressure, and hose fittings will ensure you make informed decisions for optimal performance and safety. We hope this guide has provided clarity on the essential aspects of hydraulic fittings. If you have any questions or need assistance in selecting the right components for your system, feel free to reach out to us. We’re here to help with your inquiries and provide the best solutions for your needs.

FAQ

What is the difference between working pressure and maximum working pressure in hydraulic systems?

Working pressure is the typical operational pressure, while maximum working pressure is the highest pressure a component can safely handle.

Why is minimum burst pressure important when choosing hydraulic fittings?

Minimum burst pressure ensures that fittings can withstand extreme pressure conditions without failure, providing safety in high-pressure applications.

What is the purpose of adjustable column ends in hydraulic fittings?

Adjustable column ends allow the fitting to be oriented before tightening, offering flexibility in connecting fittings in complex systems.

How does installation torque affect hydraulic fitting performance?

Correct installation torque ensures fittings are securely connected, preventing leaks or damage to threads and seals.

Can you explain the role of the fitting body in a hydraulic system?

The fitting body is the main connecting piece that joins hydraulic components, and it plays a crucial role in ensuring a leak-proof connection.

What are the main components of a hose fitting?

Hose fittings typically consist of an internal conical sealing face, ball-sealed hose fitting core, and a nut or body that holds the assembly together.

May, 2025

Custom Hydraulic Fittings and Non-Standard Hose Assemblies

Standard hydraulic fittings and hoses often fall short when faced with demanding applications. Off-the-shelf components may not withstand extreme pressures, temperatures, or aggressive media, leading to inefficiency and potential failure. For industries requiring tailored solutions, especially under special operating conditions or for large volume production, custom hydraulic fittings and non-standard hose assemblies become essential. These bespoke solutions offer enhanced performance, reliability, and safety, ensuring your hydraulic systems operate flawlessly even in the most challenging environments. This article explores how custom solutions meet these unique demands, driving efficiency and dependability.

The Limitations of Standard Hydraulic Components: Recognizing the Need for Customization

While standardized hydraulic components offer interchangeability and cost-efficiency for many applications, their inherent design compromises become critical liabilities when pushed beyond conventional boundaries. Relying on standard parts in demanding scenarios involving extreme temperatures, high pressures, aggressive chemicals, tight spaces, or significant vibration often leads to suboptimal performance and significant hidden costs. Component failures cause unscheduled downtime, directly impacting revenue and operational efficiency. Frequent replacements drive up maintenance labor and inventory expenses. Most critically, failures in hydraulic systems pose serious safety risks, including high-pressure fluid injection injuries, loss of equipment control, and fire hazards. Furthermore, inadequate connections contribute to energy loss and reduced system efficiency. Recognizing these limitations and the associated costs—downtime, maintenance, safety risks, and inefficiency—underscores the compelling value proposition of investing in custom hydraulic solutions engineered specifically for your unique application demands.

Defining Custom Hydraulic Fittings and Non-Standard Hose Assemblies: Engineered for Purpose

When standard components are inadequate, custom hydraulic fittings and non-standard hose assemblies provide the necessary solution. These are not mere variations but components specifically engineered to meet precise requirements outside standard offerings.

What Makes a Fitting ‘Custom’?

Customization addresses specific challenges where standard fittings fail:

Unique Geometries & Dimensions: Tailored shapes, non-standard lengths, specific bend radii, or reduced/enlarged hex sizes to fit confined spaces or integrate seamlessly. This includes multi-port manifolds consolidating connections.
Non-Standard Threads & Ports: Interfacing with legacy equipment, less common standards, or proprietary designs often requires unusual thread pitches, diameters, or sealing methods.
Integrated Features: Incorporating check valves, orifices, test points, sensor ports, or special mounting features directly into the fitting simplifies system design and reduces potential leak paths.
Specialized Materials: Moving beyond standard steel or brass to materials chosen for specific properties: various stainless steel grades (316L, Duplex), high-strength alloys, titanium, Monel, Hastelloy, or engineered plastics (PEEK, PTFE) for extreme pressure, corrosion resistance, weight savings, or chemical inertness.
Enhanced Performance Ratings: Engineering components to exceed standard pressure, temperature, or vibration resistance limits through material choice, modified design (e.g., increased wall thickness), and rigorous validation testing.
Specific Coatings: Applying specialized coatings (e.g., zinc-nickel, electroless nickel) for enhanced corrosion protection, wear resistance, or regulatory compliance.

Understanding Non-Standard Hose Assemblies

A non-standard hose assembly involves tailoring the hose, the fittings, or the assembly method for demanding requirements:

Hoses for Specific Challenges: Engineered to overcome:

Extreme Temperatures: Using materials like silicone, PTFE, or specialized synthetics for high heat or cryogenic conditions.
Aggressive Chemicals: Employing tube materials like PTFE, nylon, or specific elastomers resistant to the conveyed media.
Ultra-High Pressure (UHP): Constructed with multiple high-tensile steel wire spiral layers for applications like water jetting.
Flexibility/Bend Radius: Achieving greater flexibility or a smaller bend radius for tight routing.
Abrasion Resistance: Utilizing highly durable cover materials (e.g., UHMWPE) or protective sleeving.
Other Needs: Electrical non-conductivity, specific colors, low permeation, or compliance with food/pharmaceutical standards.

Specialized Construction: Involves careful selection of the inner tube, reinforcement layers (type and number), and outer cover to meet pressure, temperature, flexibility, and environmental requirements.

The Assembly is Key: Ensuring compatibility between the non-standard hose and appropriate fittings (often custom themselves) and using precise, manufacturer-specified crimping/attachment processes are critical for a reliable, leak-proof connection capable of withstanding the full operating conditions.

Understanding these custom characteristics allows for the specification of solutions truly optimized for performance and reliability.

Mastering Special Operating Conditions with Custom Solutions

Custom hydraulic components excel where standard parts fail, particularly under extreme conditions. Leveraging advanced materials and tailored designs ensures reliability and performance in challenging environments.

Tackling Extreme Pressures (UHP)

Ultra-high pressure (UHP) systems (>700 bar / 10,000 psi) in applications like waterjet cutting or hydrostatic testing demand specialized components.

Materials: High-strength alloy steels or specialized stainless grades are necessary, considering fatigue life under cyclic loading.
Design: Increased wall thickness, specialized thread forms (e.g., cone-and-thread), and robust sealing mechanisms (metal-to-metal or specialized polymers) are crucial.
Hoses: UHP hoses require multiple (often 6+) high-tensile steel spiral layers, robust materials, and specialized UHP fittings with precise assembly.

Conquering Temperature Extremes

Operating significantly outside the standard -40°C to +100°C range requires careful material selection.

High Temperatures: Use fittings made from stainless steel grades (316, 321) or nickel alloys (Inconel). Employ high-temperature seals (FKM, FFKM, Silicone, PTFE) and hoses with temperature-resistant tubes/covers (silicone, PTFE).
Low Temperatures: Select fitting materials (specific stainless grades) that maintain ductility. Use specialized low-temperature elastomers or PTFE seals and hoses designed for flexibility in cold environments.
Design: Consider thermal expansion/contraction to maintain seal integrity across the temperature range.

Ensuring Compatibility with Aggressive Media

Chemicals, solvents, or saltwater can corrode standard materials and degrade seals.

Materials: Custom fittings may use 316L, Duplex/Super Duplex stainless steel, Monel, Hastelloy, Titanium, or PTFE linings for superior corrosion resistance.
Seals: Select elastomers (FKM, FFKM, EPDM, PTFE) based on detailed chemical compatibility charts for the specific fluid, temperature, and pressure.
Validation: Testing under simulated or actual conditions is often necessary to confirm long-term compatibility.

Surviving High Vibration and Dynamic Loads

Vibration can cause fatigue failure and loosen standard threaded connections.

Fitting Designs: Utilize vibration-resistant designs like O-Ring Face Seal (ORFS – SAE J1453), properly supported flare fittings, or specialized locking mechanisms. Select materials with high fatigue strength.
Hose Assemblies: Ensure proper routing, use clamps/supports, and select hoses with high impulse life ratings tested under dynamic pressure cycles.

Addressing Unique Environmental Challenges

Abrasion: Use hoses with highly abrasion-resistant covers (UHMWPE) or protective sleeving (nylon, spring guards).
UV/Ozone: Employ hoses with cover materials specifically formulated for UV and ozone resistance in outdoor applications.
Corrosion: For subsea or marine environments, use fittings made from Super Duplex, Titanium, or Monel, often with protective coatings.

By addressing these conditions through tailored design and materials, custom solutions deliver essential performance and reliability.

Meeting the Demands of Large Volume Production: Consistency at Scale

OEMs and large industrial users often require customized hydraulic solutions produced in high volumes, necessitating unwavering consistency, reliability, scalability, and cost-effectiveness.

The OEM Challenge: Balancing Customization with Scale

OEMs require custom hydraulic components that deliver optimal performance and perfect fit for their specific equipment designs. However, they also face the challenge of ensuring:

Consistency: Each unit must match the quality and performance of the first, ensuring uniformity across thousands of units.
Reliability: Absolute dependability is essential to protect the OEM’s brand reputation.
Scalability: The ability to adjust production to meet fluctuating demands, often requiring Just-In-Time (JIT) solutions.
Cost Management: OEMs need to balance initial design costs with total cost of ownership (TCO) to keep production efficient and affordable.

Topa’s Manufacturing Capabilities for High-Volume Customization

To produce custom parts at scale, Topa invests in cutting-edge technologies and optimized production methods:

Advanced Machining: Utilizing high-speed CNC lathes, multi-spindle machines, and automated cells to ensure precision at high volumes.
Automation: Incorporating robotics for machine tending, inspection, and material handling to streamline operations, increase throughput, and minimize variability.
Efficient Tooling: Implementing robust tooling designs and management systems to handle high-volume runs with precision.
Automated Assembly: Automated processes like hose cutting, fitting insertion, and crimping ensure consistency in hose assemblies.

Ensuring Quality Control at Scale

To guarantee top-tier quality across large-scale production runs, Topa implements a rigorous quality control system:

Robust QMS: An effective Quality Management System, such as ISO 9001, ensures consistent adherence to global quality standards.
Statistical Process Control (SPC): Real-time monitoring of critical dimensions and parameters helps detect and prevent production deviations.
Automated Inspection: Vision systems, CMMs (Coordinate Measuring Machines), and automated gauging are used for high-frequency or 100% inspection, ensuring every part meets exact specifications.
Rigorous Testing: Pressure, leak, material verification, and dimensional checks are consistently applied to confirm product integrity.
Lot Traceability: Complete traceability from raw material to finished product enables detailed root cause analysis and effective recall management if needed.

Achieving Cost-Effectiveness in Volume

Custom parts can be cost-effective at high volumes when using the right strategies:

Economies of Scale: Bulk material purchasing and optimized machine utilization lead to reduced per-piece costs.
Process Optimization: Applying lean manufacturing principles to eliminate waste and improve overall efficiency.
Design for Manufacturability (DFM): Early collaboration between the customer and Topa’s engineering team ensures that designs are optimized for cost-effective production.
Focus on TCO: By prioritizing improved reliability, extended product life, and reduced warranty costs, Topa helps OEMs achieve lower total ownership costs in the long run.

Topa’s advanced manufacturing processes and strict quality control measures ensure that we consistently deliver custom hydraulic solutions that are reliable, scalable, and cost-effective—helping OEMs meet their large-volume demands with precision.

The Customization Journey: A Collaborative Path to Precision

Developing a custom hydraulic solution requires a structured, collaborative process to ensure the final product meets the exact needs of the OEM.

Step 1: Consultation and Requirement Definition

In this critical phase, we engage in detailed discussions with the customer to fully understand the application, define operating conditions (pressure, temperature, flow, media, environment), and identify specific performance goals. Additionally, we establish volume and timeline requirements. This phase relies on open communication between the customer’s application experts and Topa’s engineering team.

Step 2: Design and Engineering

We transform the requirements into a comprehensive design using advanced CAD modeling, incorporating FEA (Finite Element Analysis) or CFD (Computational Fluid Dynamics) simulations for detailed analysis. Our engineering team selects optimal materials for all components, including fittings, seals, and hoses, and designs custom seal configurations. We also create detailed manufacturing drawings with precise tolerances and specifications to guide production.

Step 3: Prototyping and Validation

After the design phase, we produce initial prototypes for customer evaluation. These samples undergo rigorous testing to ensure they meet fit, function, and performance standards. Tests include dimensional checks, pressure/leak tests, temperature cycling, impulse tests, and material verification. The customer’s approval of validated prototypes is crucial before proceeding to full-scale production.

Step 4: Scaling to Full Production

Once the prototype is approved, we finalize production tooling, schedule manufacturing based on forecasts, and implement quality control procedures. Topa’s automated systems ensure consistent production based on approved designs. We also manage logistics to ensure on-time delivery, guaranteeing that each batch meets the defined specifications and quality standards.

This structured, collaborative approach ensures that the final custom hydraulic components not only meet but exceed the required performance and quality expectations.

Conclusion

Standard hydraulic components reach their limits when faced with special operating conditions or the rigorous demands of large volume production. Custom hydraulic fittings and non-standard hose assemblies provide the essential solution, delivering tailored performance, enhanced reliability, and optimal integration. By partnering with a specialist provider, you gain access to deep engineering expertise and advanced manufacturing capabilities. Don’t compromise on performance or safety. Contact us today to discuss your unique hydraulic connection challenges and let our experts engineer the perfect custom solution for your specific needs.

FAQ

What are custom hydraulic hose fittings?

Custom hydraulic hose fittings are specifically designed to meet unique application requirements. They are tailored to fit particular sizes, materials, and pressure specifications, ensuring optimal performance in a specific hydraulic system.

Why should I choose custom hydraulic hose fittings over standard ones?

Custom fittings provide a better fit for your hydraulic system, offering improved sealing, performance, and durability. They can also be designed to handle specific pressure, temperature, and environmental conditions that standard fittings may not accommodate.

How do I determine the right custom hydraulic hose fitting for my needs?

The right fitting depends on your system’s specifications, including pressure, flow, temperature, and the type of fluid being used. Consulting with an experienced supplier or engineer can help ensure the proper selection of fittings based on your unique application.

What materials are typically used for custom hydraulic hose fittings?

Common materials include stainless steel, carbon steel, brass, and alloy steel. The material choice depends on factors like corrosion resistance, pressure requirements, and the environment in which the hose fitting will be used.

How long does it take to produce custom hydraulic hose fittings?

The production timeline for custom fittings can vary depending on the complexity of the design, material selection, and manufacturing process. On average, it may take a few weeks from consultation to delivery, but expedited services can be arranged for urgent orders.

How do I ensure the quality of custom hydraulic hose fittings?

Ensure quality by choosing a supplier with a robust Quality Management System (QMS) like ISO 9001 certification. Additionally, request detailed testing for pressure, leak, and material verification to confirm the fittings meet the required specifications for your system.

May, 2025

Topa hydraulic Cylinder selection guide banner

Hydraulic Cylinder Selection: Application & Parameter Guide

Choosing the right hydraulic cylinder is crucial for your machine’s performance and lifespan. With so many options, how do you pick the perfect one? This guide simplifies the process. We’ll walk you through matching cylinder parameters like force, speed, and mounting style to specific jobs on different machines, from construction diggers to farm tractors.

Understanding the Basics: Key Hydraulic Cylinder Parameters

Force: The Muscle of the Cylinder

Force is often the primary consideration. It’s the amount of push or pull the cylinder can exert. This is determined by the hydraulic system’s pressure and the cylinder’s bore size (the internal diameter of the cylinder barrel). The relationship is straightforward: Force = Pressure x Area. The area here is the surface area of the piston inside the cylinder. For pushing (extending), the full piston area is used. For pulling (retracting), the area is reduced by the cross-sectional area of the piston rod.

Calculating Push Force: Force (lbs) = Pressure (psi) x π x (Bore Diameter/2)²
Calculating Pull Force: Force (lbs) = Pressure (psi) x π x \[(Bore Diameter/2)² – (Rod Diameter/2)²]

Always select a cylinder with a force rating slightly higher than your maximum requirement to provide a safety margin, typically 10-25% extra. Consider both static load (holding) and dynamic load (moving) requirements. Don’t forget potential shock loads, which can momentarily spike the force needed.

Speed: How Fast Does It Move?

Cylinder speed refers to how quickly the piston rod extends or retracts. This is determined by the flow rate of hydraulic fluid supplied to the cylinder (measured in gallons per minute, GPM) and the volume of the cylinder chamber being filled. A larger bore cylinder requires more fluid to move the same distance, so it will move slower at the same flow rate compared to a smaller bore cylinder.

Calculating Extension Speed: Speed (inches/min) = (Flow Rate (GPM) x 231) / (π x (Bore Diameter/2)²)
Calculating Retraction Speed: Speed (inches/min) = (Flow Rate (GPM) x 231) / (π x \[(Bore Diameter/2)² – (Rod Diameter/2)²])

Notice that retraction speed is usually faster than extension speed because the rod takes up space, reducing the volume that needs to be filled. Ensure the speed matches the operational requirements of your machine. Too slow can hinder productivity; too fast can cause jerky movements or excessive shock.

Stroke Length: How Far Does It Reach?

Stroke length is the total distance the piston rod can travel from fully retracted to fully extended. This is a critical dimension determined entirely by the application’s needs – how far does a component need to move? Measure the required travel distance accurately. Consider potential obstructions and ensure the chosen stroke provides the full range of motion needed without bottoming out or overextending. Remember that the overall length of the cylinder (retracted and extended) will depend on the stroke length and the cylinder’s construction (including mounting).

Pressure Rating: Handling the System’s Power

Every cylinder has a maximum operating pressure rating. This indicates the highest hydraulic pressure the cylinder is designed to withstand safely during continuous operation. Exceeding this pressure can lead to seal failure, component deformation, or even catastrophic failure (bursting). Always choose a cylinder with a pressure rating equal to or, ideally, slightly higher than your hydraulic system’s maximum operating pressure. Typical pressure ranges for mobile equipment are 2000-3500 psi, while industrial applications can range from 1500 psi to 5000 psi or more.

Bore Size and Rod Diameter: The Core Dimensions

We’ve mentioned these, but they are fundamental. The bore size (internal diameter) directly impacts force and speed. A larger bore means more force but slower speed for a given pressure and flow. The rod diameter affects pull force, retraction speed, and column strength (resistance to buckling under compressive load, especially important for long-stroke cylinders). The ratio between bore and rod diameter is also key. A large rod diameter relative to the bore (differential cylinder) results in faster retraction but lower pull force.

Mounting Styles: Connecting to the Machine

How the cylinder attaches to the machine is critical for stability and proper force transfer. Common mounting styles include:

Clevis Mounts: Allow pivoting in one plane. Good for applications where the load path might change slightly.
Trunnion Mounts: Allow pivoting around the trunnion axis, often mounted mid-barrel or at the head/cap.
Flange Mounts (Head or Cap): Provide rigid mounting for straight-line force transfer.
Foot Mounts: Lugs welded to the barrel for mounting parallel to a surface.
Spherical Bearings: Allow pivoting in multiple planes, accommodating misalignment.

Choose a mounting style that suits the load type (tension, compression, side load) and the movement required. Ensure the mounting hardware and the machine structure can handle the forces involved.

Construction Equipment: Excavators and Loaders

Boom Cylinders: The Heavy Lifters

Boom cylinders typically provide the primary lifting force for the excavator’s or loader’s main arm structure. They handle the weight of the arm, bucket, and the load being lifted.

Force Requirements: Very high push force is needed to lift heavy loads. These are often the largest cylinders on the machine. Pressure ratings are typically high (e.g., 3000-5000 psi). Bore sizes are substantial to generate the necessary force.
Stroke Length: Must accommodate the full vertical range of motion required for the boom.
Speed: Moderate speed is usually sufficient, prioritizing smooth control over rapid movement. Flow control valves are essential.
Mounting: Heavy-duty clevis or trunnion mounts are common to allow pivoting as the boom raises and lowers. Spherical bearings are often used at the pin connections to handle slight misalignments under heavy load.
Construction: Robust construction with high-strength steel barrels and rods. Induction-hardened rods with heavy chrome plating are standard to resist damage and corrosion. Advanced sealing systems are needed to handle high pressure and prevent external contamination.
Special Features: Load-holding valves (counterbalance valves) are critical to prevent the boom from dropping if hydraulic pressure is lost. Integrated cushioning can reduce shock at the end of stroke.

Construction Equipment hydraulic Cylinder

Arm (Stick) Cylinders: Extending the Reach

The arm or stick cylinder controls the movement of the dipper arm, extending the reach of the bucket.

Force Requirements: Significant push and pull forces are needed for digging and positioning. Bore sizes are typically smaller than boom cylinders but still substantial.
Stroke Length: Must allow the arm to move through its full range, from close-in digging to maximum reach.
Speed: Often requires faster operation than the boom for efficient digging cycles. Needs precise control.
Mounting: Usually clevis or pin-eye mounts at both ends to allow pivoting relative to the boom and the bucket linkage.
Construction: Similar heavy-duty construction as boom cylinders, designed to withstand shock loads during digging. Effective rod wipers and seals are crucial due to exposure to dirt and debris.
Special Features: Cushioning is important to prevent harsh impacts at the end of stroke. Load-holding valves may be incorporated.

Bucket Cylinders: Controlling the Bite

Bucket cylinders control the tilting or curling action of the bucket for digging, loading, and dumping.

Force Requirements: High force is needed, especially during breakout when digging into compacted material. Both push (curl) and pull (dump) forces are important.
Stroke Length: Relatively shorter stroke compared to boom and arm cylinders, matching the required rotation angle of the bucket.
Speed: Needs to be responsive for quick bucket adjustments during the digging cycle.
Mounting: Typically pin-eye or clevis mounts connecting to the arm and the bucket linkage.
Construction: Must be extremely robust to handle high impact and abrasive wear. Rod protection (guards or boots) might be considered in very abrasive conditions. High-performance seals are essential.
Special Features: Often subject to the highest shock loads on the machine. Cushioning can be beneficial. Hardened pins and bushings at mounting points are critical.

Selection Table Example (Excavator):

Application	Primary Force	Speed Need	Stroke	Mounting	Key Feature
Boom	High Push	Moderate	Long	Clevis/Trunnion	Load Holding
Arm/Stick	High Push/Pull	Moderate/Fast	Long	Clevis/Pin-Eye	Durability
Bucket	High Push/Pull	Fast	Short/Medium	Clevis/Pin-Eye	Shock Resistance

Agricultural Machinery: Tractors and Harvesters

Tractor Three-Point Hitch Lift Cylinders: The Implement Interface

The three-point hitch is the primary way tractors connect to and control implements like plows, planters, and cultivators. Lift cylinders raise and lower the hitch arms.

Force Requirements: Must lift the heaviest compatible implement. Force requirements vary significantly based on tractor size (from small utility tractors to large row-crop models). Push force is primary.
Stroke Length: Needs to provide sufficient lift height for ground clearance and implement operation.
Speed: Moderate speed is typical, but smooth, controllable movement is crucial, especially when lowering implements.
Mounting: Often integrated directly into the tractor’s rear axle housing or frame, using specialized trunnion or clevis arrangements.
Construction: Needs to be robust and reliable. Sealing must withstand dust and dirt. Corrosion resistance is important due to potential fertilizer/chemical exposure.
Special Features: Position control is a key feature, allowing the operator to set and maintain a specific implement height or depth. Draft control (adjusting depth based on pulling force) often involves sensing within the hitch linkage, influencing cylinder operation. Load holding is essential.

Agriculture Equipment hydraulic Cylinder

Tractor Steering Cylinders: Guiding the Way

Most modern tractors use hydrostatic steering systems with hydraulic cylinders acting on the steering linkage or axle.

Force Requirements: Sufficient force to turn the wheels, especially under load or with large front-mounted implements. Force needs vary with tractor size and tire type.
Stroke Length: Matched to the steering geometry to provide the required turning angle lock-to-lock.
Speed: Must allow for responsive steering control at various operating speeds.
Mounting: Typically clevis or ball-joint ends, connecting the axle or steering knuckles to the tractor frame.
Construction: High cycle life is critical due to constant steering adjustments. Must be well-sealed against dust and moisture. Reliability is paramount for safety.
Special Features: Often double-rod cylinders for equal displacement and speed in both directions. May incorporate position sensors for auto-steering (GPS guidance) systems.

Combine Harvester Header Lift Cylinders: Gathering the Crop

Combine harvesters use cylinders to raise and lower the header (the front part that cuts and gathers the crop).

Force Requirements: Must lift the weight of the header, which can be substantial, especially for wide corn or draper headers.
Stroke Length: Sufficient to lift the header for transport and adjust cutting height during operation.
Speed: Moderate speed with smooth control for precise cutting height adjustments.
Mounting: Typically clevis or trunnion mounts connecting the header frame to the combine’s feeder house.
Construction: Must withstand vibration and dusty conditions. Good sealing is essential to prevent contamination from chaff and dust.
Special Features: Often work in conjunction with an accumulator system for flotation (allowing the header to follow ground contours). Position sensors are used for automatic header height control. Load holding is critical.

Material Handling: Forklifts and Telehandlers

Forklift Lift Cylinders: Reaching New Heights

These cylinders, often integrated directly into the mast structure, raise and lower the forks.

Force Requirements: Must lift the forklift’s rated capacity. Force is primarily push.
Stroke Length: Determines the maximum lift height of the forks. Can be single-stage or multi-stage (telescopic) for high lifts.
Speed: Smooth, controlled ascent and descent are critical for safety and load stability. Descent speed is often regulated by flow control valves.
Mounting: Highly specialized mounting integrated within the mast channels. Often act directly on mast sections or via lift chains.
Construction: High precision is needed for smooth mast operation. Excellent sealing is required to prevent leaks, especially important for indoor use. Rod finish must be smooth to protect seals during rapid cycling.
Special Features: Load-lowering control valves are essential safety features. Multi-stage telescopic cylinders are common for high-lift masts, requiring intricate internal sealing and guiding systems.

Forklift Tilt Cylinders: Angling the Load

Typically, two cylinders are mounted between the mast and the forklift frame, allowing the mast (and forks) to tilt forward and backward.

Force Requirements: Sufficient force to tilt the rated load smoothly. Both push (tilt back) and pull (tilt forward) forces are important.
Stroke Length: Relatively short, corresponding to the required tilt range (typically a few degrees forward and back).
Speed: Moderate speed with fine control for precise load positioning.
Mounting: Usually trunnion or clevis mounts to allow pivoting as the mast tilts.
Construction: Robust construction to handle load forces. Must provide stable positioning with minimal drift.
Special Features: Good load-holding capability is needed to maintain the set tilt angle. Cushioning can provide smoother stops at the end of the tilt range.

Telehandler Boom Lift and Extension Cylinders: Reaching Out

Telehandlers (telescopic handlers) use cylinders for lifting the boom and extending/retracting its telescopic sections.

Boom Lift Cylinders: Similar to loader boom cylinders but often longer stroke. High push force required. Need excellent load holding and smooth control.
Boom Extension/Retraction Cylinders: Located inside the boom sections. Can be single cylinders with complex chain/cable arrangements or multi-stage telescopic cylinders. Require careful synchronization if multiple cylinders are used. Must handle high internal pressures and provide smooth extension/retraction.
Force Requirements: Extension cylinders need force to push out boom sections, often carrying load. Lift cylinders handle the main lifting.
Stroke Length: Extension cylinder stroke determines the telehandler’s reach. Lift cylinder stroke determines elevation.
Mounting: Lift cylinders typically use heavy-duty clevis/trunnion mounts. Extension cylinders are internally mounted.
Construction: High-strength materials and precision manufacturing are essential, especially for internal extension cylinders. Advanced sealing is critical to prevent internal leakage between telescopic stages.
Special Features: Load-holding valves on all cylinders are critical safety items. Extension cylinders often incorporate sequencing valves. Position sensors may be used for load monitoring systems.

Industrial Machinery: Presses and Injection Molding

Hydraulic Press Main Ram Cylinders: Applying the Force

The main ram cylinder delivers the primary pressing force.

Force Requirements: Can range from a few tons to thousands of tons, depending on the press size and application. Push force is dominant.
Stroke Length: Varies greatly based on the press design and the parts being formed. Can range from inches to several feet.
Speed: Often requires variable speed control – rapid advance, controlled pressing speed, and rapid retract. Proportional valves are common.
Mounting: Typically heavy flange mounts (head or cap end) or sometimes trunnion mounts for specific press designs. Must ensure rigid alignment.
Construction: Extremely robust construction using high-strength materials. Precision machining for smooth operation and minimal leakage. Barrel walls are thick enough to handle high pressures (often 3000-5000 psi or more).
Special Features: High precision control of position and force is often required. May incorporate linear position sensors (LVDTs or magnetostrictive sensors). High-quality, low-friction seals are needed for accurate force control. Safety features like redundant load holding are critical.

Hydraulic Press Return/Pullback Cylinders: Resetting the Cycle

Smaller cylinders are often used to retract the main ram quickly after the pressing stroke.

Force Requirements: Sufficient force to overcome the weight of the ram and tooling, and any residual process forces. Pull force is primary.
Stroke Length: Matches the main ram stroke.
Speed: Typically requires fast retraction to minimize cycle time.
Mounting: Various styles, often flange or clevis, depending on press design.
Construction: Designed for speed and reliability. May operate at lower pressure than the main ram.
Special Features: Synchronization with the main ram control is essential.

Injection Molding Clamp Cylinders: Holding the Mold

These cylinders provide the high force needed to keep the two halves of the injection mold tightly closed against the pressure of the molten plastic being injected.

Force Requirements: Very high push force (clamp tonnage) is the defining parameter. Must maintain this force consistently throughout the injection and cooling phases.
Stroke Length: Sufficient to open the mold wide enough for part ejection and potential robotic access.
Speed: Requires fast opening and closing speeds for short cycle times, but often with controlled deceleration at the end of stroke to protect the mold.
Mounting: Integrated into the machine’s clamp unit structure, often using tie bars or specialized flange mounts.
Construction: Massive, robust construction. Precision is key for platen parallelism. Must withstand high cycle rates (often millions of cycles). Low-friction seals are important for speed and efficiency.
Special Features: Often part of complex toggle mechanisms or direct hydraulic clamp systems. May incorporate position sensors for precise control of clamp position and speed profiles. Energy efficiency is increasingly important.

Matching Parameters to Applications: A Practical Approach

Step 1: Define the Application Requirements

Start by clearly defining what the cylinder needs to do:

Function: What is the primary task? (Lifting, tilting, clamping, steering, extending, etc.)
Load: What is the maximum weight or resistance the cylinder must move or hold? Consider static and dynamic loads, and potential shock loads.
Travel Distance: How far does the driven component need to move? (This defines the stroke length).
Speed: How fast does the movement need to happen? Is precise speed control needed?
Cycle Rate: How often will the cylinder operate? (e.g., continuous duty, intermittent, infrequent).
Operating Environment: What are the conditions? (Temperature extremes, dust, moisture, corrosive chemicals, potential impacts).
Available Space: What are the physical constraints for the cylinder’s retracted and extended length, and diameter?
System Pressure & Flow: What is the available hydraulic pressure and flow rate from the machine’s power unit?

Step 2: Calculate Key Parameters

Using the requirements defined above and the formulas from Section 1, calculate the necessary parameters:

Required Force: Calculate push and pull force needed. Add a safety margin (e.g., 25%).
Required Bore Size: Based on the required force and available system pressure, calculate the minimum bore size. Choose the next standard size up.
Required Rod Diameter: Consider pull force requirements and buckling potential (especially for long strokes under compression). Select an appropriate standard rod size for the chosen bore.
Required Speed: Calculate the speed based on available flow and the chosen bore/rod size. Does it meet the application need? If not, you may need to adjust flow rate (valve settings) or reconsider bore size.
Stroke Length: Directly from the application’s travel distance requirement.

Step 3: Select Mounting Style and Construction Features

Mounting: Choose a style (clevis, trunnion, flange, etc.) that suits the load path and movement required. Ensure the mounting can handle the calculated forces.
Seals: Select seal materials (Nitrile, Urethane, Viton, PTFE) based on temperature, fluid type, pressure, and environmental conditions.
Materials: Choose barrel and rod materials (e.g., steel grades, stainless steel) and rod plating (chrome, nickel-chrome) based on strength requirements and corrosion resistance needs.
Special Features: Determine if cushioning, load-holding valves, position sensors, or special coatings are needed based on the application’s safety and control requirements.

Example Selection Table (General Guide)

This table provides a very general starting point. Always refer to manufacturer specifications and consult with experts for critical applications.

Feature	High Force / Low Speed (e.g., Press Ram)	High Speed / Moderate Force (e.g., Lifter Arm)	Precision Control (e.g., Grader Blade)	Harsh Environment (e.g., Mining Bucket)
Bore Size	Large	Medium	Medium/Small	Large/Medium
Pressure	High (3000+ psi)	Moderate (2000-3000 psi)	Moderate	High
Rod Diameter	Standard or Large	Standard	Standard	Large/Heavy Duty
Mounting	Flange, Heavy Trunnion	Clevis, Pin-Eye	Clevis, Spherical Bearing	Heavy Clevis/Trunnion
Seals	High Pressure, Low Friction	High Cycle, Standard Temp	Low Leakage, Low Friction	Heavy Duty Wipers, Abrasion Resistant
Features	Position Sensor, Proportional Control	Cushioning, High Flow Ports	Load Holding, Position Sensor	Rod Protection, Advanced Coatings

Step 4: Verify and Document

Double-check all calculations and selections. Ensure the chosen cylinder fits within the available space (check retracted/extended lengths and pin-to-pin dimensions). Consult manufacturer catalogs or technical support if unsure. Document the final selection, including part numbers and specifications, for future reference and maintenance.

Conclusion

Selecting the right hydraulic cylinder involves more than just matching basic specifications. It requires understanding the specific demands of the application, from the forces involved to the operating environment. By carefully considering parameters like force, stroke, speed, mounting style, pressure rating, and construction features, and matching them to the job at hand – whether it’s lifting a boom, tilting a blade, or clamping a mold – you can ensure optimal performance, safety, and longevity for your machinery.

If you need a customized hydraulic cylinder for your application, tell me the details of your needs and we can produce samples to give you the best service!

FAQ

What happens if I use a cylinder with too low a force rating?

The cylinder may stall, be unable to move the load, or move very slowly. In extreme cases, it could lead to internal damage or failure if overloaded repeatedly.

Can I use a higher-pressure cylinder in a lower-pressure system?

Yes, generally this is safe. The cylinder is built to handle more pressure than the system provides. However, don’t use a lower-pressure rated cylinder in a higher-pressure system.

What is cylinder cushioning and when do I need it?

Cushioning is a feature that slows the piston down at the very end of its stroke (extend or retract) to prevent harsh impacts. It’s needed in applications with high speeds or heavy masses to reduce shock, noise, and wear.

How important is the hydraulic fluid type for cylinder selection?

Very important. Seal materials must be compatible with the specific hydraulic fluid being used (e.g., standard mineral oil, biodegradable fluids, water glycol). Using incompatible seals will cause them to fail quickly.

What does ‘NFPA Interchangeable’ mean for a cylinder?

This means the cylinder’s mounting dimensions and basic envelope size conform to standards set by the National Fluid Power Association (NFPA). This allows cylinders from different manufacturers adhering to the standard to be physically interchangeable for mounting purposes.

Why is rod finish important?

A smooth, hard rod surface (typically chrome-plated) is essential for seal life. Scratches, corrosion pits, or roughness on the rod will quickly damage the seals as the rod moves in and out, causing leaks.

May, 2025

Hydraulic Cylinder Shock Resistance Design and Application Analysis banner

Hydraulic Cylinder Shock Resistance: Design and Applications

Hydraulic cylinders are the powerhouses of industry, delivering essential force and precision. However, operational shock and vibration pose significant threats, risking damage, downtime, and inaccuracy. High-precision, shock-resistant cylinders provide resilience for demanding applications where standard solutions fail. This article explores the advanced design principles, critical applications, and inherent benefits of these specialized components, demonstrating how robust engineering conquers harsh conditions to ensure optimal performance, safety, and longevity in modern hydraulic systems.

Understanding Shock and Vibration in Hydraulic Systems

Defining Shock and Vibration

Shock refers to a sudden, transient application of force or acceleration, disrupting equilibrium. Vibration involves oscillatory motion around an equilibrium point. Both introduce unwanted energy, challenging system stability and integrity, particularly detrimental in high-precision applications.

Common Sources

Destructive forces rarely stem from a single origin but often a combination of operational factors and external influences:

Inertial Forces: Rapid acceleration or deceleration of large masses generates significant shock forces through the cylinder and machine structure.
Rapid Valve Actuation: Fast-acting valves, while precise, can cause sudden pressure changes (hydraulic shock/water hammer), sending pressure spikes and mechanical jolts.
Load Fluctuations: Abrupt external load changes (e.g., hitting obstructions, sudden load release) induce significant shock.
End-of-Stroke Impact: Without adequate cushioning, the piston impacting the end cap, especially at high speeds, is a predictable yet damaging source.
External Impacts & Environmental Vibration: Mobile machinery encounters impacts from terrain or collisions; stationary equipment can experience transmitted vibrations.

Hydraulic Cylinder Shock Resistance Application

Detrimental Consequences

Unmitigated shock and vibration initiate a cascade of damaging effects compromising performance, reliability, and safety:

Component Fatigue and Failure: Repeated stress cycles fatigue materials, causing failure in rods (bending/fracture), barrels (cracking), mounts (wear), and especially seals (wear, extrusion, leakage).
System Pressure Spikes: Shock often coincides with pressure surges exceeding ratings, potentially damaging pumps, valves, hoses, and fittings.
Fluid Leakage: Damaged seals and stressed connections lead to leaks, causing efficiency loss, environmental concerns, and hazards.
Reduced Precision and Control: Even minor vibrations degrade accuracy in high-precision tasks (CNC, robotics), affecting quality.
Noise and Vibration Issues: Excessive noise/vibration indicates problems and causes operator fatigue.
Safety Hazards: Uncontrolled movements or component failures pose serious risks (e.g., aerial platforms, cranes).
Increased Operational Costs: Cumulative effects include more maintenance, downtime, parts consumption, and reduced OEE.

The Precision Imperative

While basic cushioning suffices for some tasks, high-precision applications demand more. They require absorbing major impacts and minimizing micro-vibrations, ensuring consistent deceleration profiles under varying conditions. Standard cylinders often lack the refined design, tight tolerances, and advanced control to prevent shock from degrading the precise positioning and smooth motion critical to these applications, necessitating specialized, high-precision, shock-resistant designs.

Core Principles of Shock-Resistant Hydraulic Cylinder Design

Mitigating shock and vibration requires a multi-faceted approach integrating robust materials, structural ingenuity, and sophisticated damping. Designing a high-precision, shock-resistant cylinder involves meticulous engineering choices.

Material Selection: The Foundation of Resilience

The first defense is inherent material strength and durability.

High-Strength Steels

The barrel, piston rod, and end caps bear the brunt of forces. High-tensile, quenched and tempered alloy steels (e.g., AISI 4140) offer superior resistance to fatigue, impact, and pressure stresses compared to standard carbon steels, crucial for these components.

Advanced Surface Treatments

The piston rod is vulnerable. Induction hardening creates a deep, wear-resistant outer layer while maintaining core toughness. Hard chrome plating provides corrosion resistance and low friction. Alternatives like nitriding or specialized coatings enhance durability or corrosion protection in specific environments.

Seal Materials and Design

Seals often fail first under shock/pressure spikes. High-performance elastomers (advanced PU) or engineered plastics (filled PTFE blends) offer superior extrusion/wear resistance and resilience over wider temperature/pressure ranges than standard NBR or FKM. Seal geometry (e.g., anti-extrusion rings) is vital for handling pressure peaks.

Structural Integrity: Engineering for Endurance

Physical construction and configuration are vital for absorbing and distributing shock loads.

Robust Construction Methods

Finite Element Analysis (FEA) optimizes barrel wall thickness, end cap geometry, and port reinforcements to withstand peak pressures (including intensification) and stresses without yielding or fatiguing.

Design Configurations

Tie-rod cylinders offer ease of maintenance and some energy absorption via rod stretch but risk fatigue/loosening. Welded/mill-type cylinders provide rigidity, better impact resistance, and higher pressure ratings, though repair is complex. Choice depends on application demands (rigidity, pressure, serviceability).

Rod Buckling Prevention

Long strokes or high compressive loads risk rod buckling. Applying Euler’s column formula with safety factors is essential. Often, preventing buckling under shock necessitates a larger rod diameter than static calculations require, increasing bending resistance.

Mounting Integrity

Proper mounting is critical for force transfer and shock absorption. Incorrect mounting concentrates stress. Selecting appropriate styles (centerline lug, trunnion, flange) and ensuring rigid, aligned surfaces are paramount. Spherical bearings can accommodate misalignment, reducing dynamic stress.

Advanced Cushioning Techniques: Taming End-of-Stroke Impacts

Cushioning provides controlled deceleration, preventing piston-end cap impact, essential in high-speed/inertia applications.

The Cushioning Concept

As the piston nears stroke end, a component (spear/piston) enters a restricted chamber, limiting fluid outflow and creating back pressure for smooth deceleration before metallic contact.

Spear-Type Cushions

Common in tie-rod cylinders, using a spear entering a pocket. Can be fixed (predetermined orifice) or adjustable (needle valve tunes deceleration). Adjustability offers flexibility but risks improper setting, galling, unpredictable performance (parallel flow paths), and requires space.

Piston-Type Cushions

Favored in welded/mill-type cylinders for compactness/predictability. Integrate cushioning into the piston (drilled orifices, floating ring). Typically non-adjustable, ensuring consistency and preventing tampering. Advanced designs include “fast start-up” features.

Progressive/Multi-Stage Cushioning

For variable loads/speeds or requiring exceptionally smooth deceleration. Utilize profiled spears or multiple orifices/valves for gradual restriction changes, providing a smoother curve than simple designs.

External Shock Absorbers

For extreme impact energy, mid-stroke impacts, or external sources where integrated cushioning is insufficient. Mounted externally to absorb energy.

Cushion Sizing and Selection

Effective cushioning requires correct sizing. Engineers calculate kinetic energy and determine required cushion pressure/stroke to dissipate energy safely. Load, speed, pressure, viscosity, and desired deceleration time are critical inputs.

Pressure Intensification: The Hidden Danger

A critical consideration, especially during cushioning.

Explanation of Phenomenon

During extension cushioning, restricting rod-side outflow causes pressure intensification. Due to the smaller rod-side annular area, the pressure resisting the extending force becomes significantly higher than system inlet pressure (Inlet Pressure x Area Ratio). This peak pressure is contained within the cylinder.

Design Considerations

This phenomenon must be calculated. Cylinder components (barrel, end cap, seals, rod) must be designed to withstand these potentially much higher peak pressures without failure. Ignoring intensification is a common cause of seal failure or cylinder rupture.

Elevating Performance: High-Precision Aspects in Shock-Resistant Design

Robust shock resistance is the bedrock; true high precision demands further refinement for exacting accuracy, smooth control, and consistency in dynamic environments.

Defining Precision in Hydraulic Cylinders

High precision encompasses tight positional tolerances, minimal backlash/hysteresis, smooth low-friction movement (preventing stick-slip), consistent velocity control, and long-term repeatability. Specific requirements vary by application.

Key Enablers of Precision

Several factors contribute to this elevated performance:

Tight Manufacturing Tolerances

Precision starts here. Extremely tight tolerances on bore, piston, rod diameters, gland clearances, and concentricity minimize internal leakage, reduce side-loading effects, and ensure consistent seal performance for predictable movement.

Advanced Sealing Systems

Beyond resisting pressure spikes, seals need low friction and minimal ‘stiction’. Specialized low-friction materials/profiles, often with wear bands/guide rings (filled PTFE), ensure smooth movement and prevent metal contact, even under shock-exacerbated side loads.

Integrated Position Feedback

Closed-loop control requires accurate, real-time feedback. Integrated Linear Displacement Transducers (LDTs – e.g., magnetostrictive) offer robust, accurate solutions. Design must protect sensors from shock/vibration via specialized mounting/damping.

Refined Cushioning Control

High-precision cushioning aims for highly predictable, repeatable deceleration. This involves finely tuned fixed orifices, sophisticated progressive profiles, or electro-hydraulic solutions with active control based on feedback.

Fluid Cleanliness and Filtration

Precision components are sensitive to contamination. Maintaining high fluid cleanliness via appropriate filtration is crucial for the longevity/performance of seals, valves, and sensors.

Thermal Stability Management

Temperature affects fluid viscosity and dimensions. Designs may need to account for thermal expansion; system-level temperature control might be needed for utmost precision.

Application Spotlight: Where Precision Meets Power Under Pressure

Mobile Machinery (Construction, Mining, Forestry)

Key Demands: Mobile machinery used in construction, mining, and forestry must endure intense conditions. These environments often expose hydraulic cylinders to high impact forces, dirt, and vibrations, making shock resistance a priority. Moreover, these cylinders must function reliably in harsh conditions while offering precise control to ensure safe and efficient operation.

Examples:

Excavator Arms: Hydraulic cylinders control the motion of excavator arms, where high precision and impact resistance are necessary for digging through solid materials.
Bulldozer Blades: These machines need reliable cylinders to adjust blade positions with precision, even under heavy load.
Crane Booms: Cranes must have highly reliable hydraulic cylinders that can handle heavy lifting with smooth, controlled motions.
Harvester Heads: Forestry equipment, such as harvester heads, relies on hydraulic cylinders for precise cutting and positioning of trees.

Impact of Failure: If the hydraulic cylinders in mobile machinery fail, the entire operation could be jeopardized. For example, a failure in an excavator’s arm could lead to loss of control, causing damage to the machine or surrounding area. Furthermore, operator safety may be compromised if cushioning or control fails during operation.

Material Handling and Logistics

Key Demands: In material handling and logistics, hydraulic cylinders are crucial for smooth motion, repeatability in positioning, and the durability needed for high-cycle operations. Given the high-volume and repetitive nature of tasks in these industries, cylinders must offer reliability without sacrificing speed or performance.

Examples:

Automated Guided Vehicles (AGVs): AGVs in warehouses require precise and reliable hydraulic control for tasks like lifting, lowering, or moving materials.
Stacker Cranes: These cranes, which move large stacks of goods, rely on hydraulic cylinders to ensure smooth, repeatable motion to prevent damage to the cargo.
Conveyors: Complex conveyor systems that require hydraulic cylinders for loading, unloading, and height adjustments also depend on durability for prolonged use.

Impact of Failure: Any malfunction in material handling equipment can result in production delays or costly damage to goods. For instance, if a cylinder fails on an AGV, it could cause misalignment or stalling, leading to costly downtime and disrupted operations. Additionally, inaccurate positioning can damage goods, lowering the company’s overall efficiency.

Manufacturing and Automation

Key Demands: In manufacturing, particularly in automation and robotics, hydraulic cylinders must meet specific requirements for high cycle speeds, shock resistance, and precision. The need for repeatability and low vibration is essential, as these cylinders play a central role in high-speed assembly lines and press machines.

Examples:

Industrial Presses: These presses require cylinders that can withstand high-impact forces while maintaining precise positioning throughout each cycle.
Robotic Arms: In assembly lines, robotic arms with hydraulic cylinders ensure accurate and quick movements for tasks like picking, placing, or welding.
Automated Assembly Lines: For fast-paced production lines, cylinders must function seamlessly to maintain operational efficiency while withstanding wear and tear.

Impact of Failure: Failures in cylinders used in industrial automation can halt production, damaging both machinery and products. For example, if a cylinder in a press fails to hold the correct position, it could lead to improperly manufactured parts, affecting product quality. Furthermore, a failure in robotic arms could cause the robot to malfunction, potentially damaging the assembly line or the finished products.

Energy Sector (Oil & Gas, Renewables)

Key Demands: The energy sector, especially in oil & gas and renewable energy industries, operates in some of the harshest environments. Cylinders used in these industries must be corrosion-resistant, capable of handling high loads, and reliable over long service intervals. The precision of control is often needed for processes such as pipeline tensioning or wind turbine adjustments.

Examples:

Offshore Drilling Equipment: Hydraulic cylinders power equipment used to drill offshore, where they must resist saltwater corrosion and operate under high pressure.
Pipeline Tensioners: These cylinders adjust the tension in pipelines, ensuring that they are safely installed or repaired under high-stress conditions.
Wind Turbine Pitch Control: Cylinders in wind turbines adjust the blades’ pitch, requiring precision and the ability to work in varying weather conditions.

Impact of Failure: Failures in the energy sector can result in significant downtime, environmental hazards, and increased operational costs. For example, if a cylinder in offshore drilling equipment fails, it could halt operations, leading to financial losses and even environmental damage if the equipment is part of an oil spill containment system.

Conclusion

Shock and vibration severely challenge hydraulic systems. For high-precision tasks, robust shock resistance is non-negotiable. Advanced engineering, integrating superior materials, structural integrity, and sophisticated cushioning, provides the necessary resilience. High-precision features further enhance accuracy and control. Investing in hydraulic cylinders specifically designed for demanding applications ensures operational efficiency, enhances safety, extends equipment life, and ultimately delivers significant long-term value and reliability where standard solutions fail.

Are you faced with cylinder failure, system vibration or the challenge of maintaining accuracy in dynamic applications? Are you looking to optimize the performance and service life of your hydraulic equipment? Contact us today to discuss your needs and let us help you design the best solution!

References

Ever-Power Industry. (2024, June 4) . Impact And Shock Resistance Of Standard Tie-Rod Hydraulic Cylinders. Retrieved from https://www.ever-power.net/impact-and-shock-resistance-of-standard-tie-rod-hydraulic-cylinders/
Hydroline. (n.d.) . How to design a hydraulic cylinder? Retrieved from https://hydroline.fi/blogs/how-to-design-a-hydraulic-cylinder/
Innovative Hydraulics. (2024, February 2) . Hydraulic Cylinder Cushion Designs. Retrieved from https://innovativehyd.com/hydraulic-cylinder-design-cushions/
IQS Directory. (n.d.) . Types, Configurations & Applications for Hydraulic Cylinders. Retrieved from https://www.iqsdirectory.com/articles/hydraulic-cylinder.html
Made-in-China Insights. (2025, March 16) . Hydraulic Cylinders Unveiled: Design Principles and User-Centric Considerations. Retrieved from https://insights.made-in-china.com/Hydraulic-Cylinders-Unveiled-Design-Principles-and-User-Centric-Considerations_FAgTSxEbqJIh.html

FAQ

What is shock resistance in hydraulic cylinders?

Shock resistance in hydraulic cylinders refers to their ability to withstand sudden, high-impact forces during operation.

Why is shock resistance important in hydraulic cylinders?

It prevents damage to the cylinder and hydraulic system during high-impact operations, ensuring reliability and safety.

How is shock resistance achieved in hydraulic cylinders?

Shock resistance is achieved through reinforced materials, dampening mechanisms, and robust design features that absorb impact forces.

What are common applications for shock-resistant hydraulic cylinders?

They are commonly used in construction equipment, aerospace systems, material handling, and heavy-duty industrial machinery.

How do shock-resistant hydraulic cylinders improve safety?

They help prevent sudden failures and accidents by ensuring smooth operation under high-impact conditions.

What maintenance is required for shock-resistant hydraulic cylinders?

Regular inspection, seal replacement, and hydraulic fluid checks are essential to maintain shock resistance and prevent failure.
